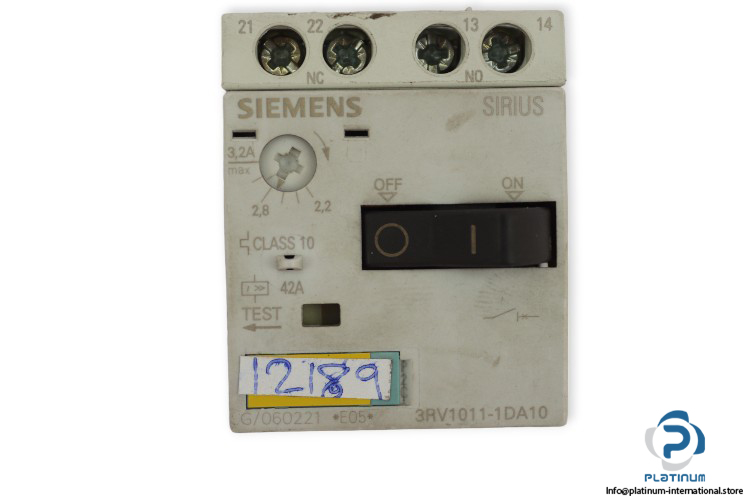

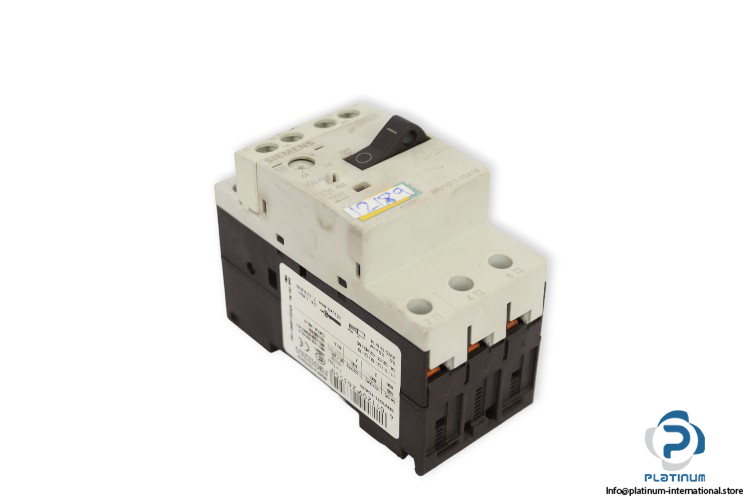

Siemens 3RV1011-1DA10 3P Circuit Breaker

Manufacture: Siemens
Type: Circuit Breaker
MNR: 3RV10111DA10
Brand: SIRIUS

Size: S00
Used: For Motor Protection
Operating voltage: 690 V AC/DC
Adjustable response Current: 2.2 … 3.2 A
Breaking capacity limit short-circuit current (lcu)@400 V: 100 kA
Service power rated value: 1.1 kW
Power loss: 7.25 W
Operating current rated value: 3.2 A
Response value current of instantaneous short-circuit trip Unit: 42 A
Impulse voltage resistance rated value: 6000 V
Number of poles: 3
Mounting type: screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Protection degree: IP20
Design of the electrical connection: screw-type terminals
Ambient temperature: -20 … 70°C
Dimensions: 81 x 90 x 45 mm
