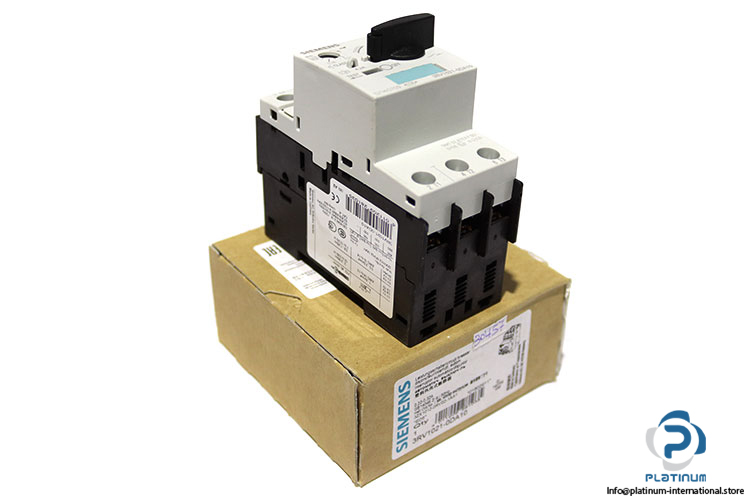

Siemens 3RV1021-0DA10 Circuit-Breaker
New
In stock2 unitsReady to ship
33,33$
Circuit-Breaker
Siemens SIRIUS 3RV1021-0DA10 motor protection circuit-breaker, 690 V rated voltage, 0.22“0.32 A adjustable current range, 3-pole thermomagnetic design, IP20 protection, and compact S0 size.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Siemens 3RV1021-0DA10 Circuit-Breaker
The Siemens SIRIUS 3RV1021-0DA10 is a compact and reliable circuit-breaker designed for motor protection. Engineered to ensure safety and efficiency, it provides excellent performance with adjustable current response and robust construction suitable for industrial environments.
Manufacturer: Siemens
Type: Circuit-Breaker
Model: 3RV1021-0DA10

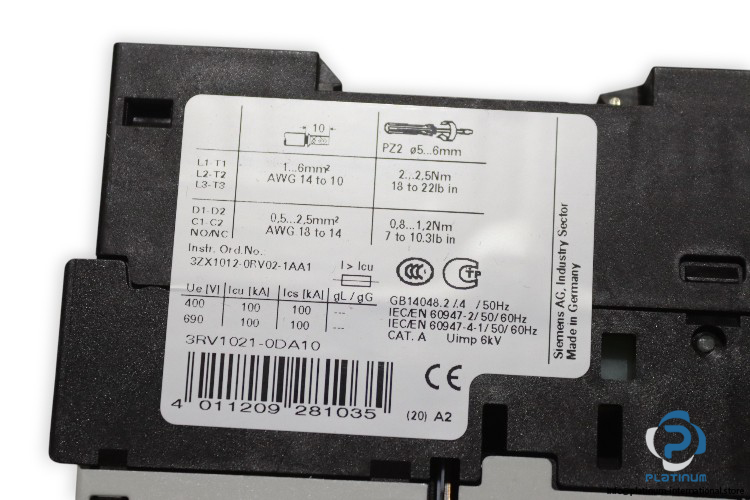

Inst Ord No.: 3ZX1012-0RV02-1AA1
Ref No.: 01602911
SN: 4 011209 281035
Product Brand Name: SIRIUS
Size: S0
Used: For Motor Protection
| Operating Voltage Rated Value | 690 V |
| Surge Voltage Resistance Rated Value | 6 kV |

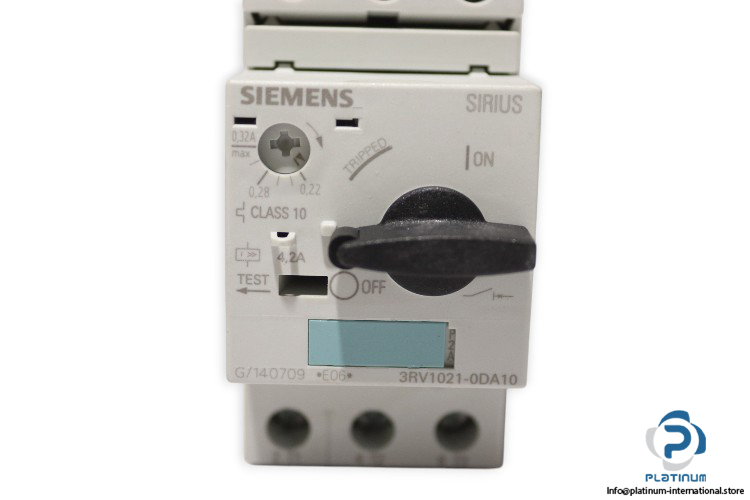

| Adjustable Current Response Range | 0.22 ... 0.32 A |
| No. of Poles | 3 |
| Fastening Method | Screw and snap-on mounting onto 35 mm DIN EN 50022 rail |
| Electrical Connection | Screw-type terminals |
| Protection Degree | IP20 |
| Operating Current at AC-3 / 400 V | 0.32 A |
| Operating Power at AC-3 / 400 V | 0.09 kW |
| Operating Temperature | -20 / 60 °C |
| Design of Release | Thermomagnetic (overcurrent and short-circuit) |
| Dimensions | 97 x 45 x 96 mm |
