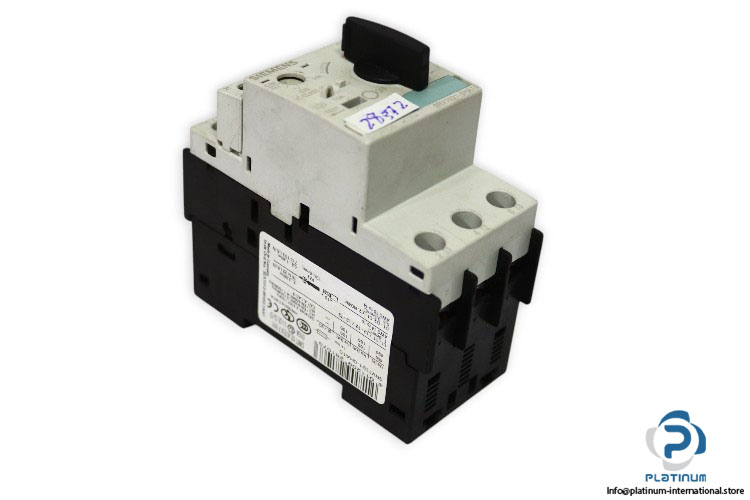

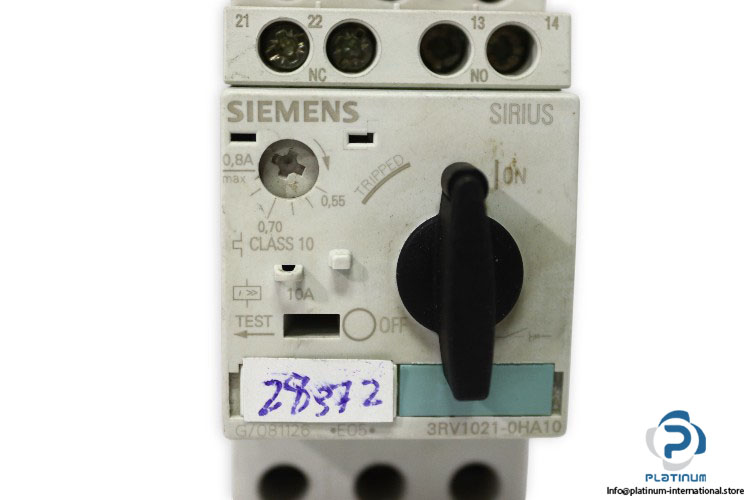

Siemens 3RV1021-0HA10 Circuit Breaker
Used
In stock1 unitReady to ship
Circuit Breaker The SIEMENS 3RV1021-0HA10 SIRIUS is a 3-pole motor protection circuit breaker with 0.55–0.8 A adjustable current, 690 V AC rating, and 100 kA breaking capacity.
103RV1021-0HA10AdjustableBreakerCircuitClassCurrentIndustrialmotorProtectionS0screwSeriesShortSiemensSiriusterminaltrip
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Ord. No. | 3ZX1012-0RV02-1AA1 |
| Brand Name | SIRIUS |
| Size | S0 |
| Used for | Motor Protector |
| Operating Voltage | 690 V AC |
| Operating Current | 0.8 A |
| Short-Circuit Release Current | 10 A |
| Frequency | 50 … 60 Hz |
| Adjustable Current | 0.55 … 0.8 A |
| Operating Power | 0.75 kW |
| Power Loss | 7.25 W |
| Poles No. | 3 Poles |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 100 kA |
| Protection Class | IP20 |
| Operation Temperature | -20 … 60 °C |
| Dimensions | 97 x 45 x 96 mm |
| Condition | Used |
| SKU | 1078208 |
| Weight | 0,27 |
