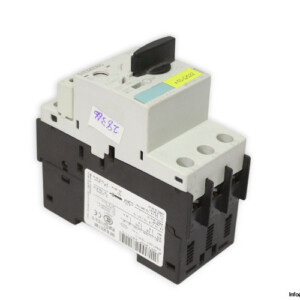

Siemens 3RV1021-1BA10 Circuit Breaker
New
In stock1 unitReady to ship
Circuit Breaker
SIEMENS SIRIUS motor protection circuit breaker, Size S0, 2 A operating current, adjustable 1.4“2 A range, 690 V AC rated voltage, with high short-circuit breaking capacity for industrial motor protection.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
SIEMENS 3RV1021-1BA10 Circuit Breaker
The SIEMENS 3RV10211BA10 circuit breaker from the SIRIUS range is designed for reliable motor protection in industrial applications. This compact Size S0 motor protector provides adjustable current settings and high short-circuit breaking capacity, ensuring safe and efficient operation of electrical motors.
Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV1021-1BA10
Order No.: 3ZX1012-0RV02-1AA1
Brand Name: SIRIUS
Size: S0
Used For: Motor Protector
Rated Service Short-Circuit Breaking Capacity (Ics):
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
| Operating Voltage | 690 V AC |
| Operating Current | 2 A |
| Frequency | 50 / 60 Hz |
| Adjustable Current | 1.4 / 2 A |
| Operating Power | 0.75 kW |
| Power Loss | 6 W |
| Number Of Poles | 3 Poles |
| 400 V AC | 100 kA |
| 690 V AC | 8 kA |
| 400 V AC | 100 kA |
| 690 V AC | 8 kA |
| Protection Class | IP20 |
| Operating Temperature | -20 / 60 °C |
| Dimensions | 97 x 45 x 96 mm |
