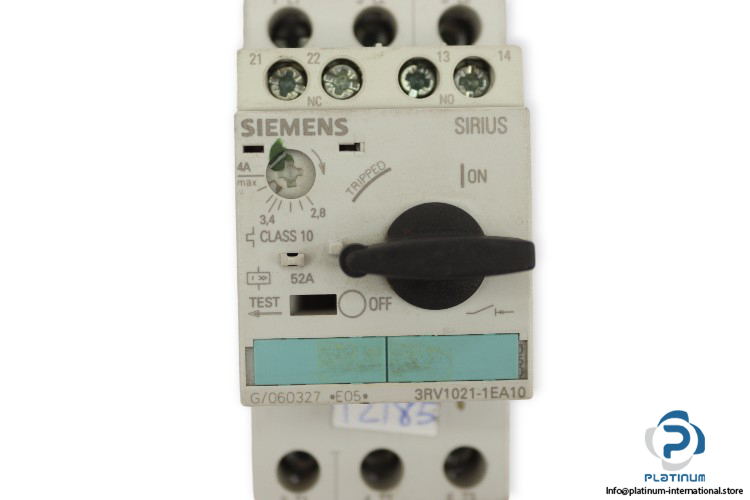

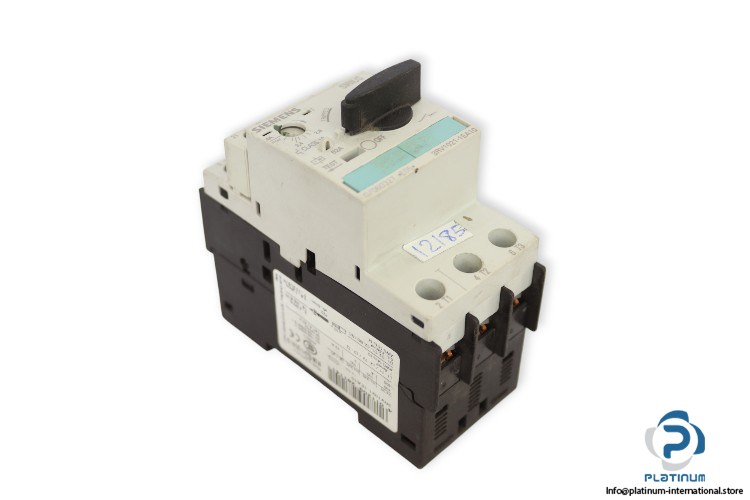

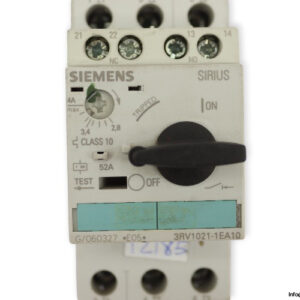

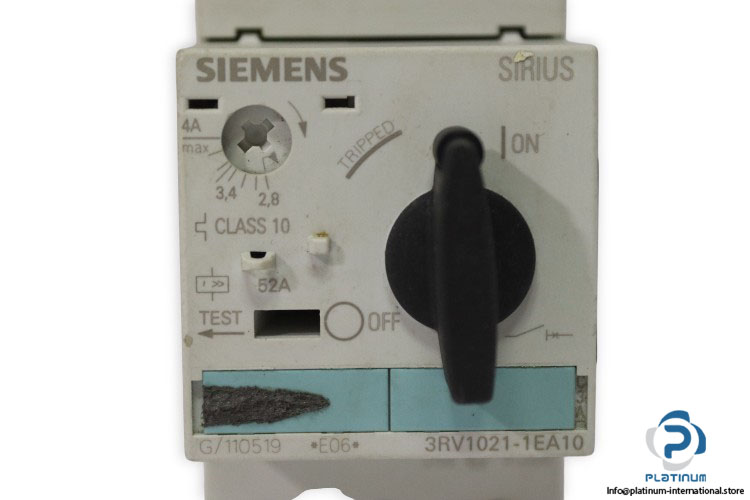

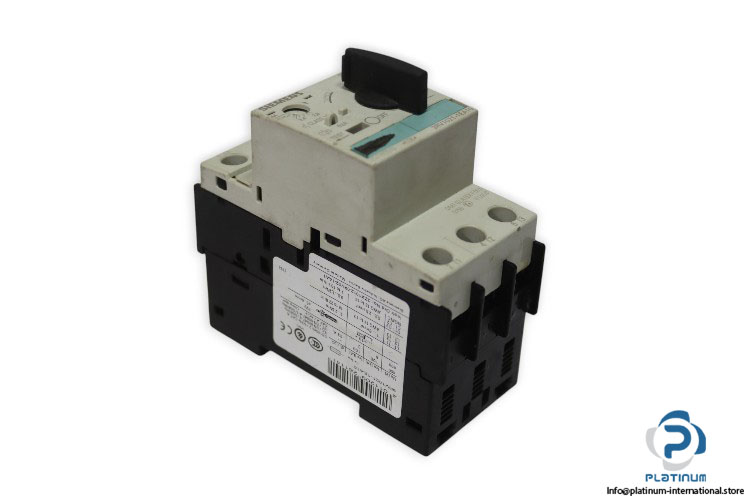

Siemens 3RV1021-1EA10 Circuit Breaker
New
In stock1 unitReady to ship
CIRCUIT BREAKER
Siemens SIRIUS 3RV10211EA10 circuit breaker with 3 poles, Class 10 trip, and 690 V rating. Provides reliable motor protection with high breaking capacity and compact S0 size design.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

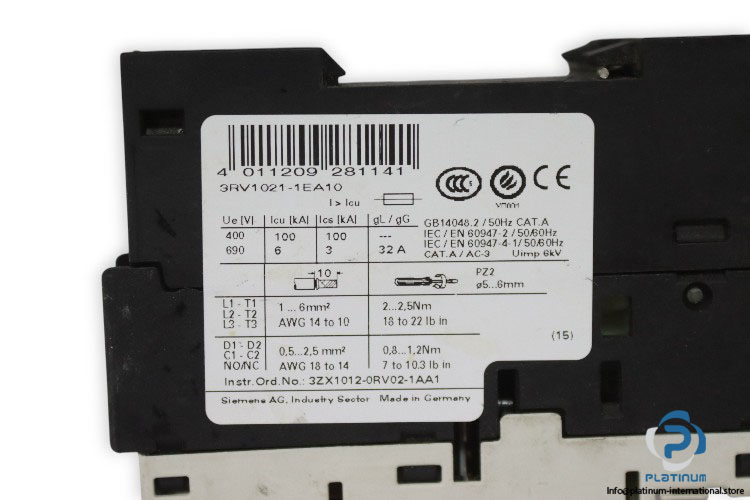

SIEMENS SIRIUS CIRCUIT BREAKER 3RV10211EA10
The Siemens SIRIUS 3RV10211EA10 is a high-quality circuit breaker designed for reliable motor protection in industrial applications. Compact and durable, it ensures safe operation with precise current response and high breaking capacity, making it suitable for demanding environments.
Manufacturer: Siemens
Type: Circuit Breaker
Model No. (MNR): 3RV10211EA10
Product Brand Name: SIRIUS
Inst Ord No.: 3ZX1012-0RV02-1AA1
| Size | S0 |
| Application | For Motor Protection |
| Operating Voltage Rated Value | 690 V |
| Frequency | 50/60 Hz |
| Active Power Loss | 6 W |
| Adjustable Current Response Range | 2.8 / 4 A |
| Operating Current at AC-3 at 400 V | 4 A |
| Instantaneous Short-Circuit Trip Unit Response Value | 52 A |
| No. of Poles | 3 |
| Main Contact | 1NO, 1NC |
| Trip Class | CLASS 10 |
| Tightening Torque | 2 / 2.5 N·m |
| Mounting Type | Screw and snap-on mounting onto 35 mm standard rail (DIN EN 50022) |
| Rated Breaking Capacity at 400 V (Icu) | 100 kA |
| Rated Service Breaking Capacity at 400 V (Ics) | 100 kA |
| Protection Degree | IP20 |
| Standards | IEC/EN 60947-2, IEC/EN 60947-4-1 |
| Operating Temperature | -20 / 60 °C |
| Dimensions | 96 x 45 x 97 mm |
