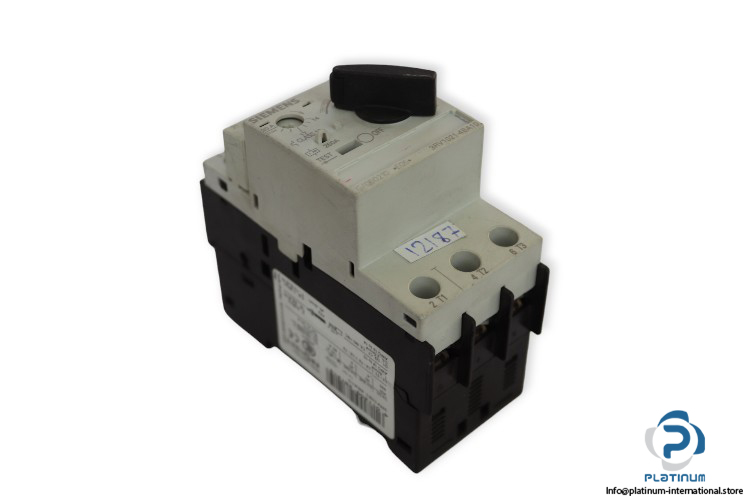

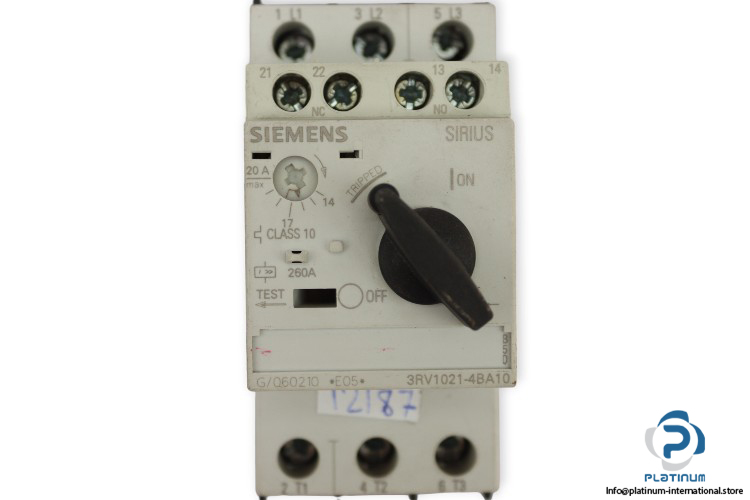

Siemens 3RV1021-4BA10 Circuit Breaker

Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3RV10214BA10
Product Brand Name: SIRIUS

Size: S0
Used:  for motor protection
Operating Voltage rated value: 690 V
Frequency: 50/60 Hz
Active power loss: 8 W
Adjustable current response range: 14 … 20 A
Operational current at AC-3 at 400 V rated value: 20 A
Response value current of instantaneous short-circuit trip unit: 260 A
No. of poles: 3
Main contact: 1 NO, 1NC
Trip Class: CLASS 10
Tightening Torque: 2 … 2.5 N·m
Mounting type: screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
Rated breaking capacity@400V (Icu): 50 kA
Rated Service breaking capacity@400 V (Ics): 25 kA
Protection degree: IP20
Standard: IEC/EN 60947-2,IEC/EN 60947-4-1
Operating temperature: -20 … 60°C
Dimensions: 96 x 45 x 97 mm
