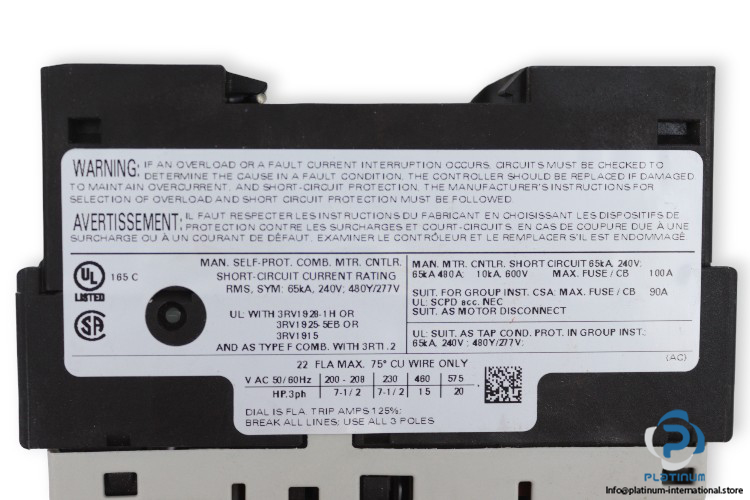

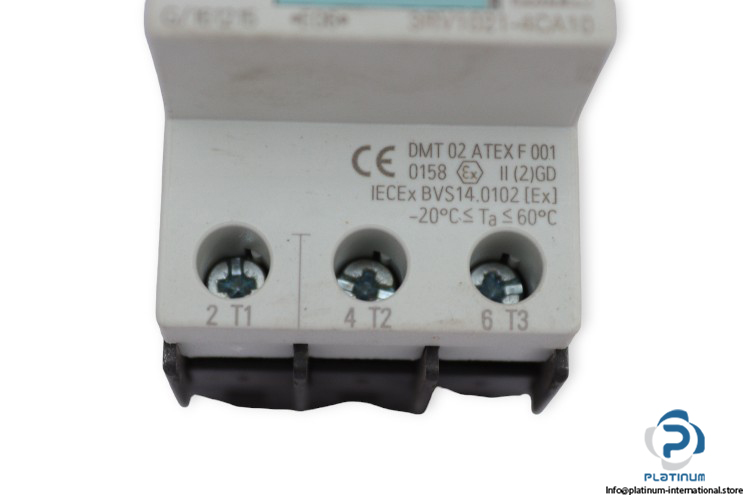

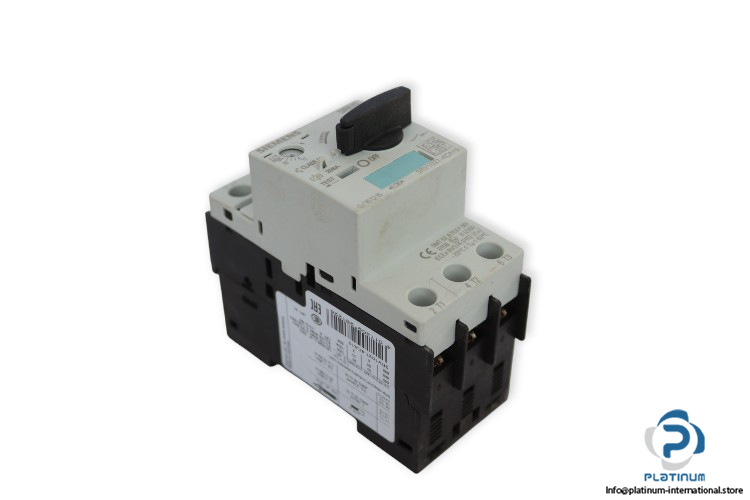

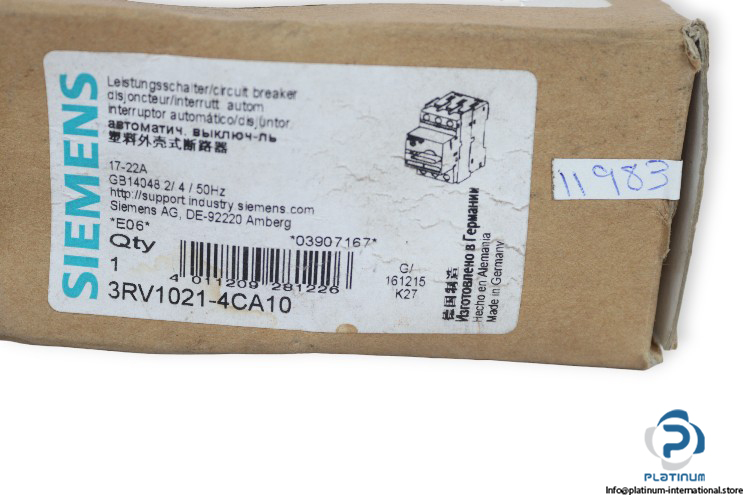

Siemens 3RV1021-4CA10 Circuit Breaker

Manufacturer: SIEMENS
Type: Circuit Breaker
MNR: 3RV10214CA10

Brand Name: SIRIUS
Size: S0
Used for: Motor Protector
Operating Voltage: 690 V AC
Operating Current: 22 A
Frequency: 50 … 60 Hz

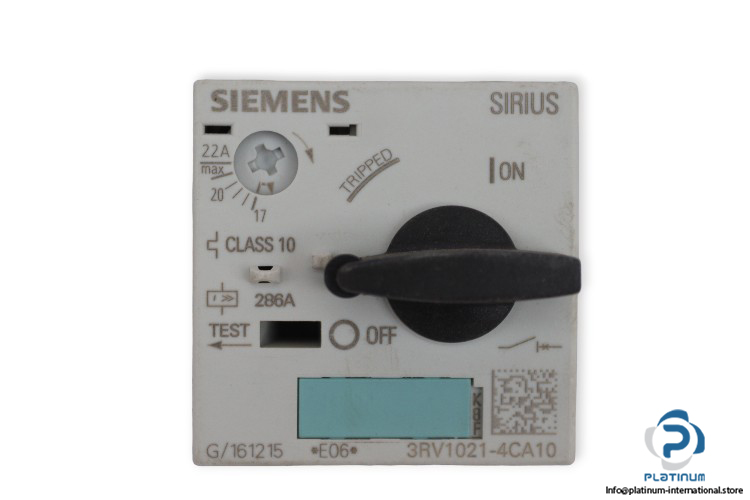

Adjustable Current: 17 … 22 A
Operating Power: 11 kW
Power Loss: 8 W
Poles No.: 3 Poles

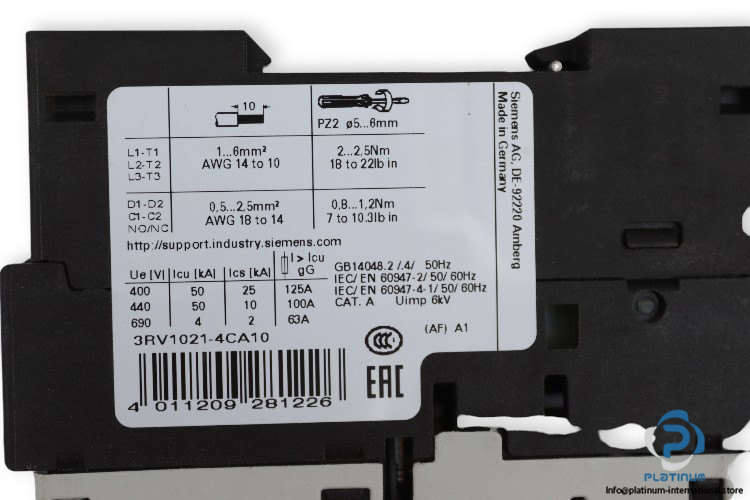

Rated Service Short-Circuit Breaking Capacity (Ics):
400 V AC: 25 kA
440 V AC: 10 kA
690 V AC: 2 kA
Rated Ultimate Short-Circuit Breaking Capacity (Icu):
400 / 440 V AC: 50 kA
690 V AC: 4 kA
Protection Class: IP20
Operation Temperature: -20 … 60 °C
Dimensions: 97 x 45 x 96 mm
