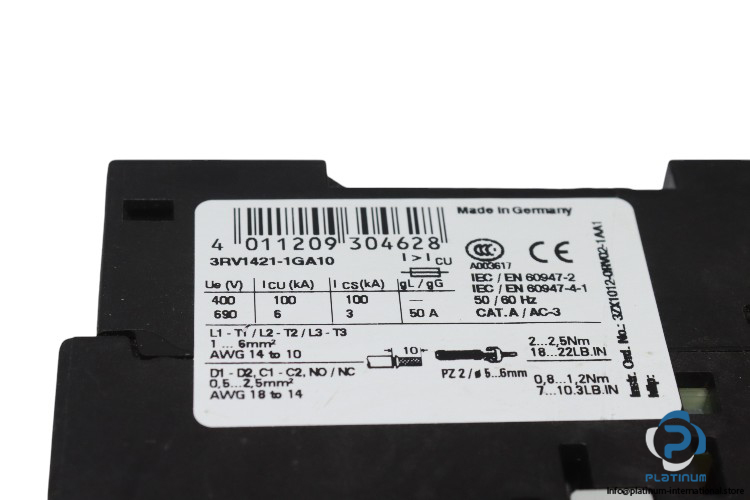

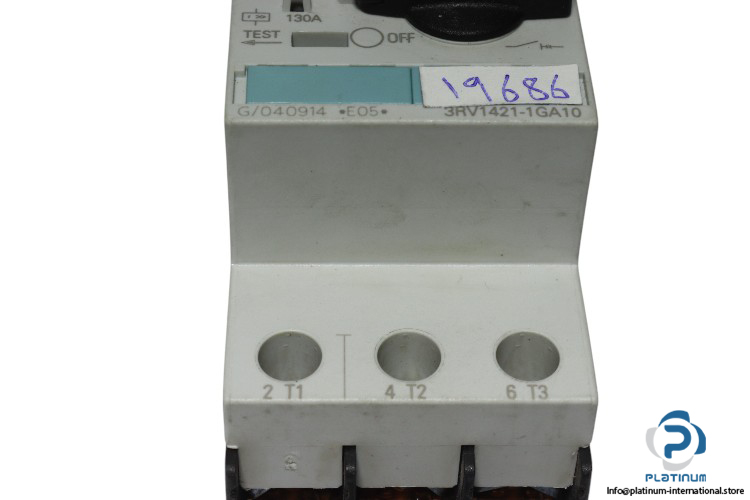

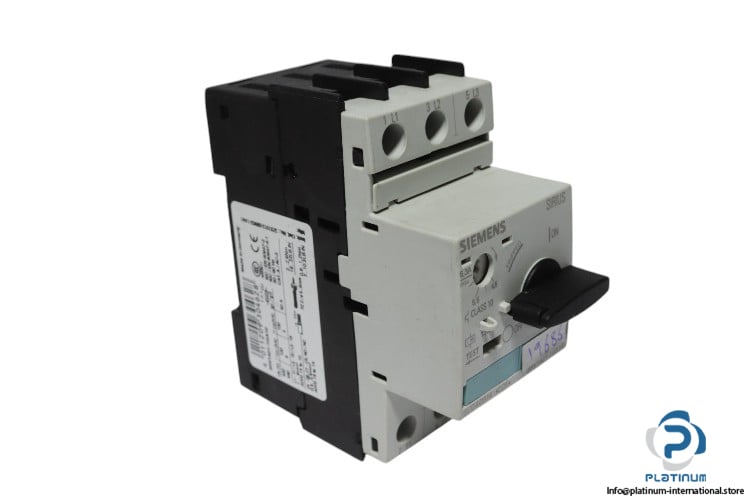

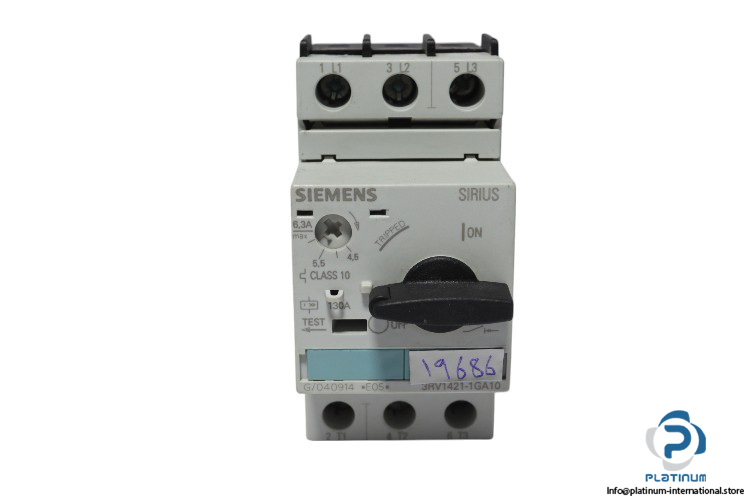

Siemens 3RV1421-1GA10 Circuit Breaker
Siemens Circuit Breaker 3RV1421-1GA10
The Siemens Circuit Breaker 3RV1421-1GA10 is designed for transformer protection with a size of S0. It operates at 400 to 690 V AC, with 6.3 A operating current at AC-3 at 400 V, and features screw-type terminals, IP20 protection, and compact dimensions (97 x 45 x 96 mm).Siemens Circuit Breaker 3RV1421-1GA10
The Siemens Circuit Breaker 3RV1421-1GA10 is designed for transformer protection with a size of S0. It operates at 400 to 690 V AC with an operating current of 6.3 A at AC-3 at 400 V. The circuit breaker features screw-type terminals for electrical connection and is suitable for a variety of industrial applications. This unit operates at a frequency of 50/60 Hz and has a power loss of 6 W. The protection class is IP20, providing adequate protection for its components in industrial settings. The dimensions are 97 mm x 45 mm x 96 mm, making it a compact and efficient solution for electrical protection.
Manufacturer: Siemens
Type: Circuit Breaker
Model: 3RV1421-1GA10
This Siemens Circuit Breaker is an ideal choice for ensuring transformer protection in various industrial environments, offering reliable performance and a compact design.
| Size | S0 |
| Operating Voltage | 400 / 690 V AC |
| Operating Current at AC-3 at 400 V | 6.3 A |
| Type of Electrical Connection | Screw-type terminals |
| Design | For transformer protection |
| Number of Poles for Main Current Circuit | 3 |
| Frequency | 50 / 60 Hz |
| Power Loss | 6 W |
| Protection Class | IP20 |
| Dimensions (H x W x D) | 97 x 45 x 96 mm |
