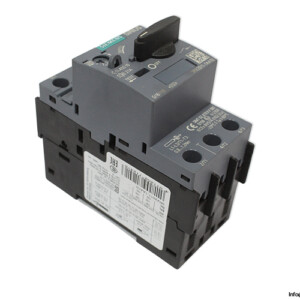

Siemens 3RV2011-1AA10 Circuit Breaker
Used
In stock1 unitReady to ship
Circuit Breaker
SIEMENS SIRIUS motor protection circuit breaker, size S00, rated up to 690 V AC with adjustable current range and high short-circuit breaking capacity.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

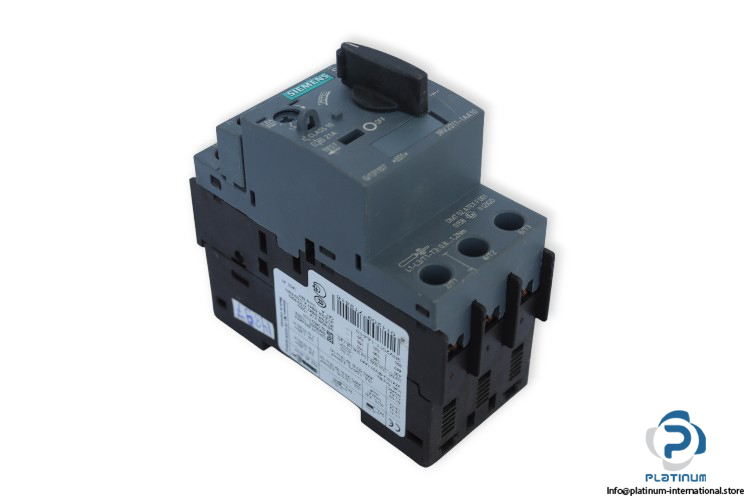

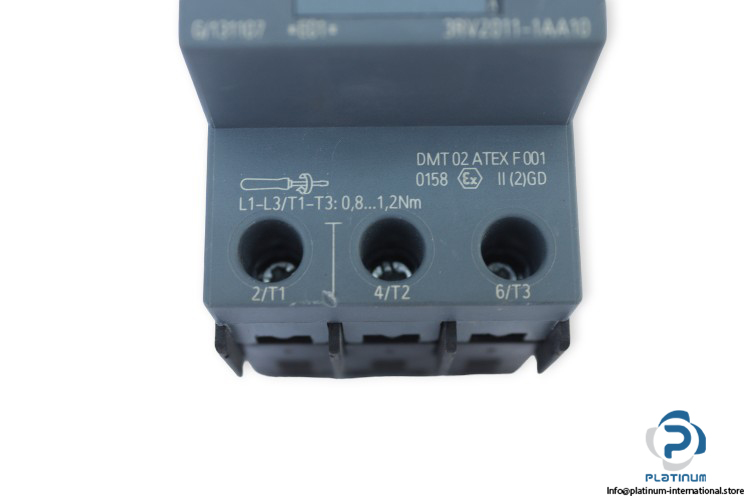

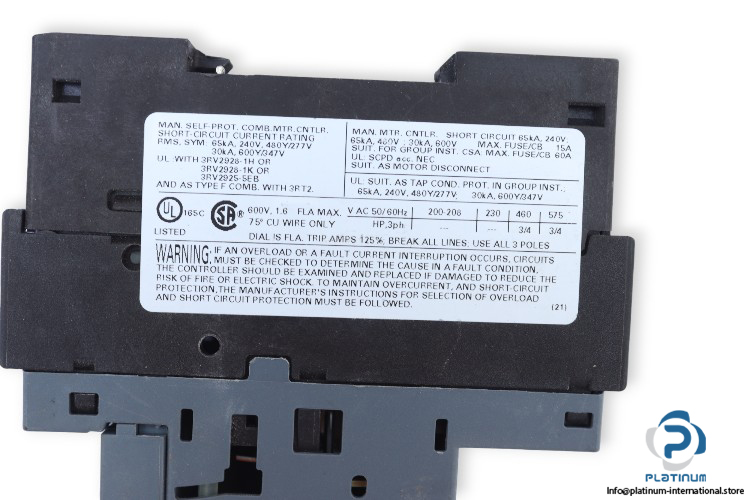

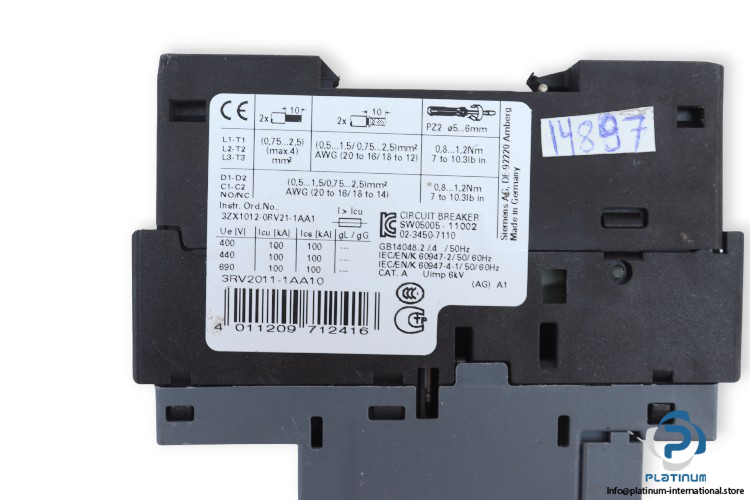

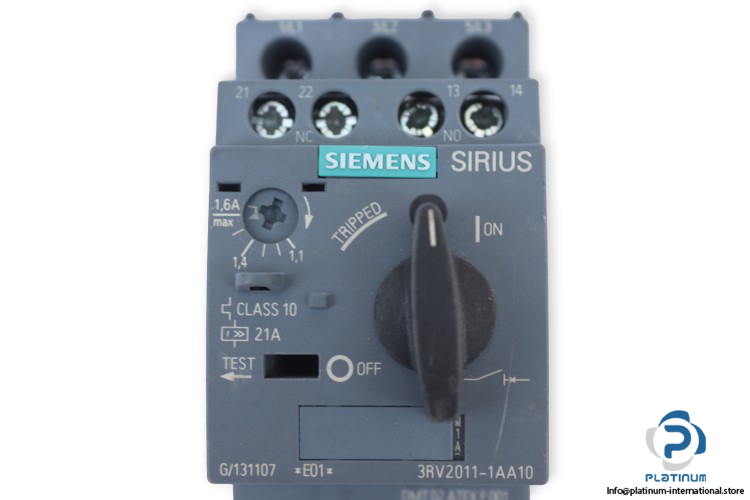

SIEMENS 3RV2011-1AA10 Circuit Breaker
The SIEMENS 3RV20111AA10 circuit breaker from the SIRIUS range is designed for reliable motor protection in low-voltage industrial applications. It provides effective protection against overloads and short circuits, ensuring safe operation of motors and electrical systems.
Manufacturer: SIEMENS
Type: Circuit Breaker
Model: 3RV2011-1AA10
Used For: Motor Protection
Brand Name: SIRIUS
Size: S00
| Rated Operational Voltage (Ue) | 690 V AC |
| Rated Operational Current (In) | 1.6 A |
| Rated Current Range | 1.1 / 1.6 A |
| Frequency | 50 / 60 Hz |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Rated Insulation Voltage (Ui) | 690 V AC |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 260 A |
| Rated Operational Power AC-3 at 230 V | 0.3 kW |
| Rated Operational Power AC-3 at 400 V | 0.55 kW |
| Rated Operational Power AC-3 at 500 V | 0.8 kW |
| Rated Operational Power AC-3 at 690 V | 1.1 kW |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 100 kA |
| Number of Poles | 3-Pole |
| Protection Class | IP20 |
| Ambient Temperature | -20 / 60 °C |
| Dimensions | 97 x 45 x 97 mm |
