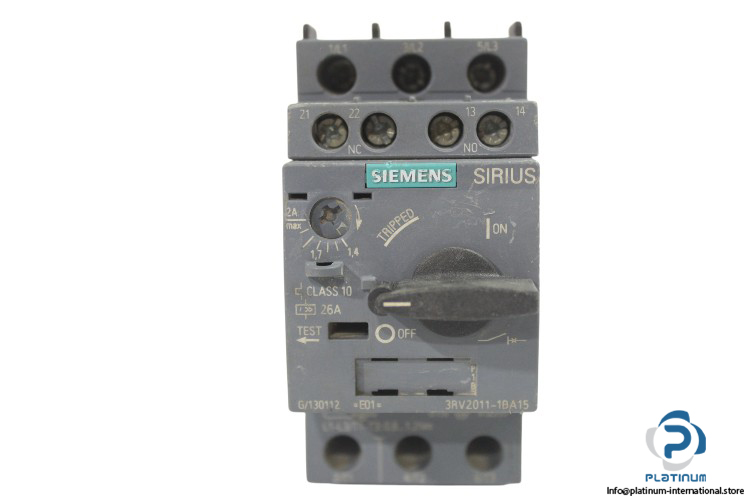

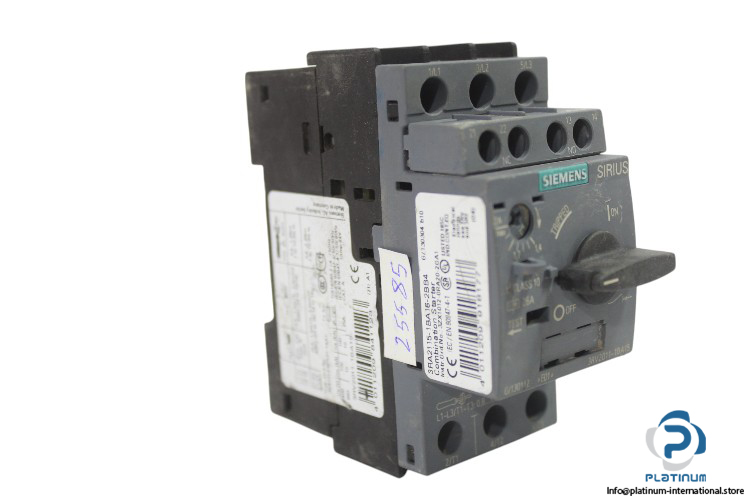

Siemens 3RV2011-1BA15 Circuit Breaker

Siemens 3RV20111BA15 Circuit Breaker

The Siemens 3RV20111BA15 circuit breaker from the SIRIUS range is a high-performance motor protection device. With a surge voltage resistance of 6 kV and a rated insulation voltage of 690 V, it offers reliable protection in industrial applications. Designed for motor protection with a size S00 frame, this circuit breaker features an adjustable current response value, providing versatile overload protection for motors.

Manufacturer: SIEMENS

Type: Circuit Breaker

Model: 3RV20111BA15

Brand Name: SIRIUS

Technical Data:

• Size: S00 for motor protection
• Power Loss [W] at Rated Value: 7.25 W
• Power Loss per Pole [W]: 2.4 W
• Insulation Voltage with Degree of Pollution 3 (AC Rated Value): 690 V
• Surge Voltage Resistance Rated Value: 6 kV
• Number of Poles for Main Current Circuit: 3
• Adjustable Current Response Value: 1.4 … 2 A
• Operating Voltage (Rated Value): 20 … 690 V
• Operating Voltage (AC-3 Rated Value Maximum): 690 V
• Operating Voltage (AC-3e Rated Value Maximum): 690 V
• Operating Frequency (Rated Value): 50 … 60 Hz
• Protection Class: IP20
• Dimensions: 97 x 45 x 97 mm

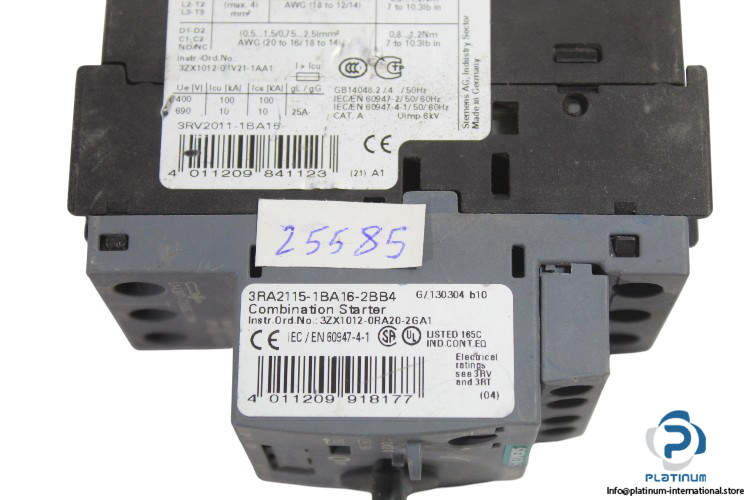

• Attached With: Siemens 3RA2115-1BA16-2BB4 Load Feeder Fuseless
