Siemens 3RV2021-1GA10 Circuit Breaker
Used
In stock1 unitReady to ship
Circuit Breaker
The Siemens 3RV 2021-1GA10 Circuit Breaker is designed for motor protection with a 690V insulation voltage and 6 kV surge resistance. It features adjustable current response (4.5-6.3A) and IP20 protection, ensuring reliable operation in industrial motor circuits.690VAdjustableBreakerCircuitCurrentIP20motorOverloadProtectionreleaseResistantSiemensSiriusSurgevoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

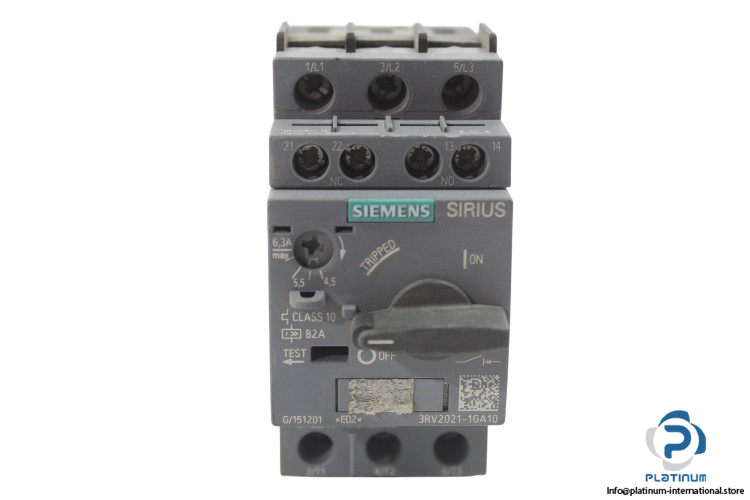

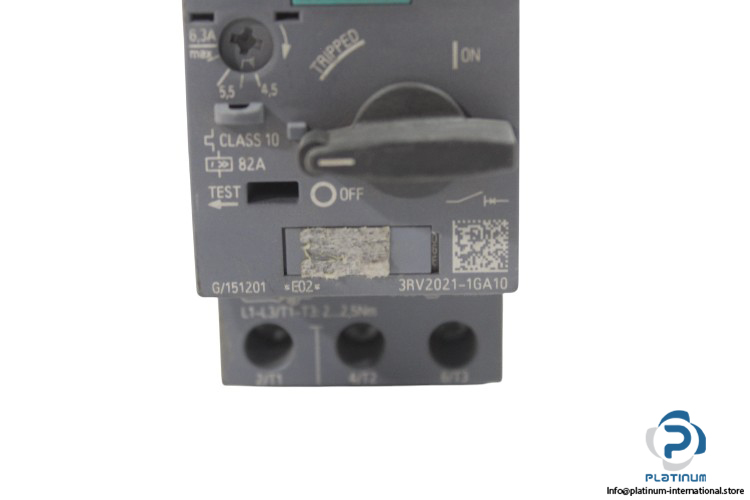

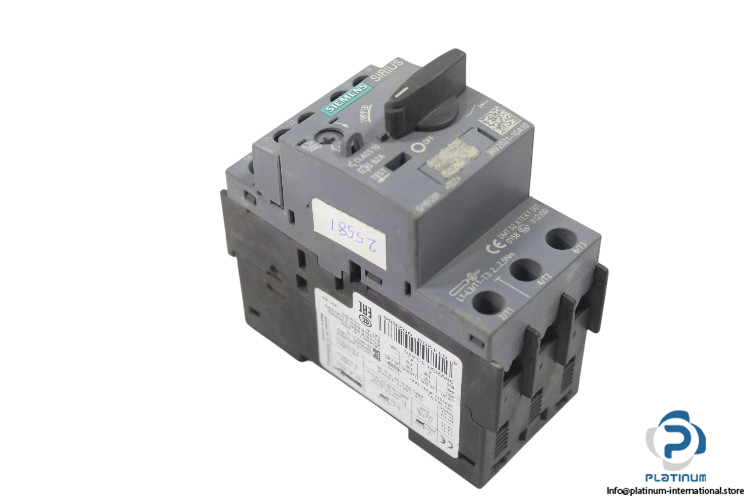

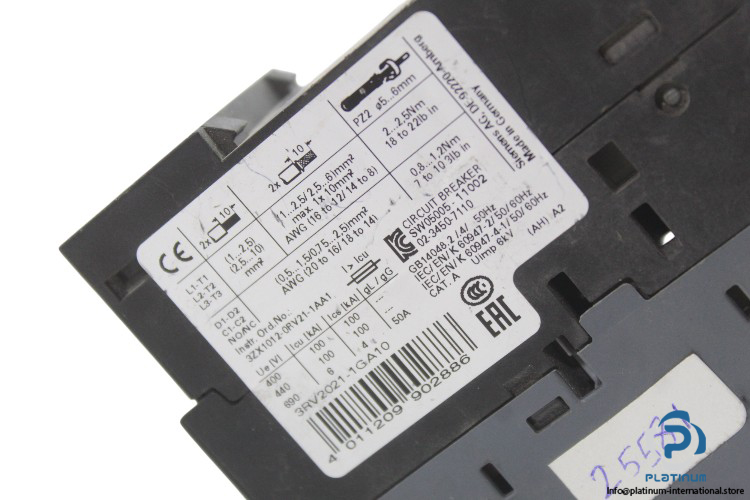

Siemens 3RV 2021-1GA10 Circuit Breaker
The Siemens 3RV 2021-1GA10 is a high-performance circuit breaker from the Sirius range, specifically designed for motor protection in industrial applications. With a wide operating voltage range, high surge voltage resistance, and adjustable current response values, this circuit breaker ensures reliable protection and performance for motor circuits under varying conditions.
Manufacturer: Siemens
Type: Circuit Breaker
Model: 3RV 2021-1GA10
Technical Data:
- Size: S0 for motor protection
- Product Brand Name: SIRIUS
- Power Loss (W) for Rated Value of Current: 7.25 W
- Power Loss (W) per Pole (at AC in Hot Operating State): 2.4 W
- Insulation Voltage with Degree of Pollution 3 at AC Rated Value: 690 V
- Surge Voltage Resistance Rated Value: 6 kV
- Number of Poles for Main Current Circuit: 3
- Adjustable Current Response Value (Current of the Current Dependent Overload Release): 4.5 … 6.3 A
- Operating Voltage Rated Value: 20 … 690 V
- Operating Voltage at AC-3 Rated Value Maximum: 690 V
- Operating Voltage at AC-3e Rated Value Maximum: 690 V
- Operating Frequency Rated Value: 50 … 60 Hz
- Protection Class: IP20
- Dimensions: 97 x 45 x 97 mm
