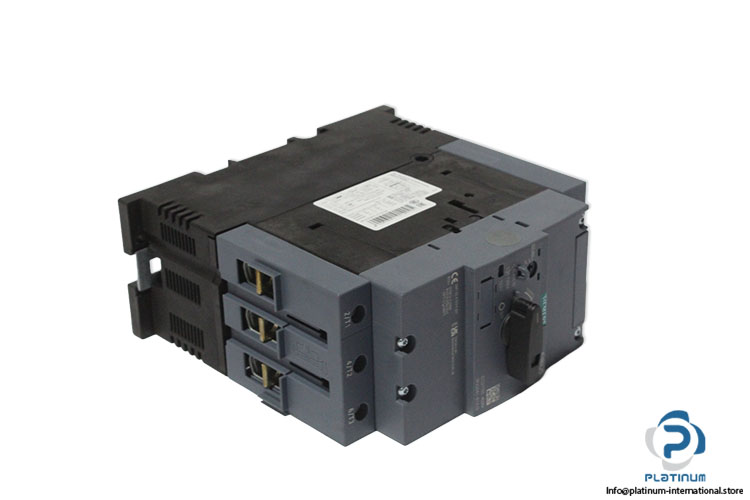

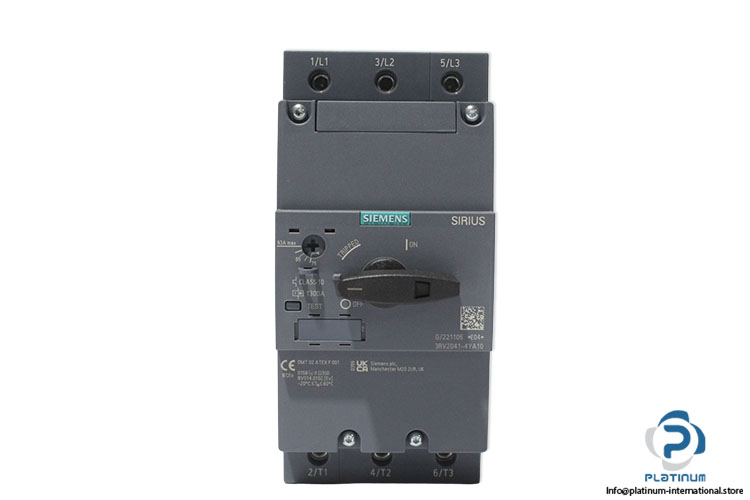

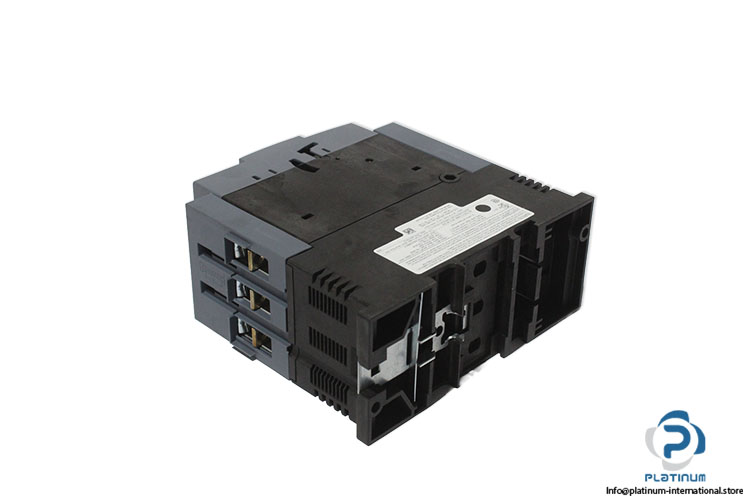

Siemens 3RV2041-4YA10 Circuit Breaker
New
In stock7 unitsReady to ship
The SIEMENS 3RV2041-4YA10 Sirius Circuit Breaker is a motor protection circuit breaker designed for industrial electrical systems. It features an S3 frame, 3-pole configuration, current ratings up to 160 A, 65 kA short-circuit breaking capacity, IP20 protection, and convenient DIN rail mounting.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Serial No. | 1P3RV2041-4YA10-SG/221104 |
| Product Brand Name | Sirius |
| Design Of The Product | For Motor Protection |
| Product Type Designation | 3rv2 |
| Current | (260/440: 160a), ( 400/690: 125a), (230/400: 160a) |
| Frequency | 50/60hz |
| Power Loss | (At Ac in Hot Operating State: 39 W), (At Ac In Hot Operating State Per Pole: 13 W) |
| Type Of Calculation of Power Loss Current-Dependent | Quadratic |
| Insulation Voltage with Degree of Pollution 3 At Ac Rated Value | 1 000 V Surge Voltage Resistance Rated Value: 8 Kv |
| Number Of Poles For Main Current Circuit | 3 |
| Maximum Short-Circuit Current Breaking Capacity (Icu) | (At Ac At 400 V Rated Value 65 Ka) |
| Operating Short-Circuit Current Breaking Capacity (Ics) At Ac | (At 400 V Rated Value 30 Ka) |
| Mounting Position | Any |
| Tightening Torque | 4.5 ... 6 N·M |
| Fastening Method | Screw And Snap-On Mounting Onto 35 Mm Din Rail |
| Protection Class | Ip20 |
| Dimensions | 165x70x176 Mm |
| Standard | GB/T14048.2/.4, IEC/K 60947-2, IEC/K 60947-4 -1 |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1093465 |
| Weight | 2,28 |
