Siemens 3RV2917-1E Busbar
Used
In stock1 unitReady to ship
BUSBAR
Siemens SIRIUS 3-phase busbar with infeed right for two 3RV2 circuit breakers (S00 and S0). Rated at 63 A, 500/600 V AC, IP20 protection, and compliant with IEC/EN 60947-2.3-phase.3RV2BreakerBusbarCircuitCompliantconnectionCurrentDistributionElectricalHighIECIndustrialPanelPowerSiemensSirius
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

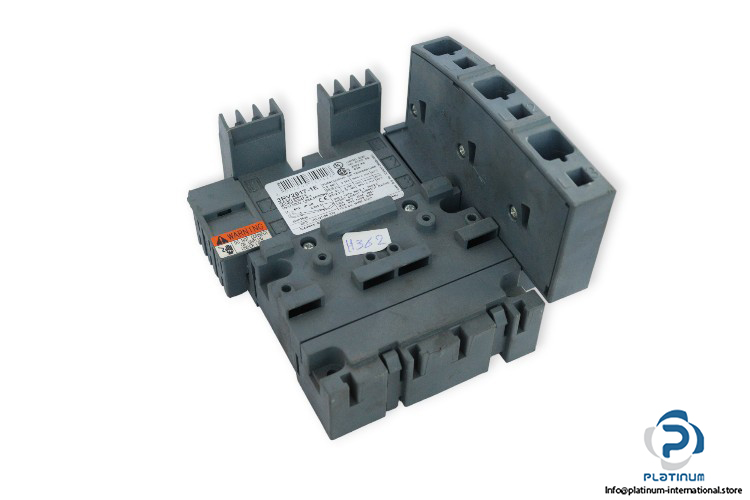

SIEMENS 3RV29171E BUSBAR
The Siemens 3RV29171E SIRIUS busbar is a high-quality 3-phase busbar with infeed right, designed for connecting two 3RV2 circuit breakers in sizes S00 and S0. Built to IEC/EN 60947-2 standards, it ensures safe, efficient, and reliable power distribution in industrial control systems.
Manufacturer: Siemens
Type: Busbar
Model: 3RV29171E
Brand Name: SIRIUS
| Standard | IEC/EN 60947-2 |
| Design | 3-Phase Busbar with Infeed Right for 2 3RV2 Circuit Breakers Size S00 and S0 |
| Operational Voltage | 500 / 600 V AC |
| Thermal Current | 63 A |
| Number of Poles for Main Current Circuit | 3 |
| Protection Class | IP20 |
| Ambient Temperature | -20 / 60 °C |
| Dimensions | 129 x 110 x 87 mm |
