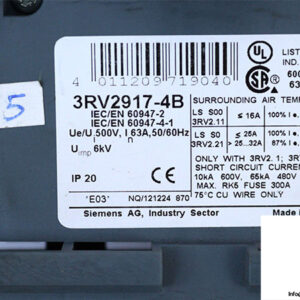

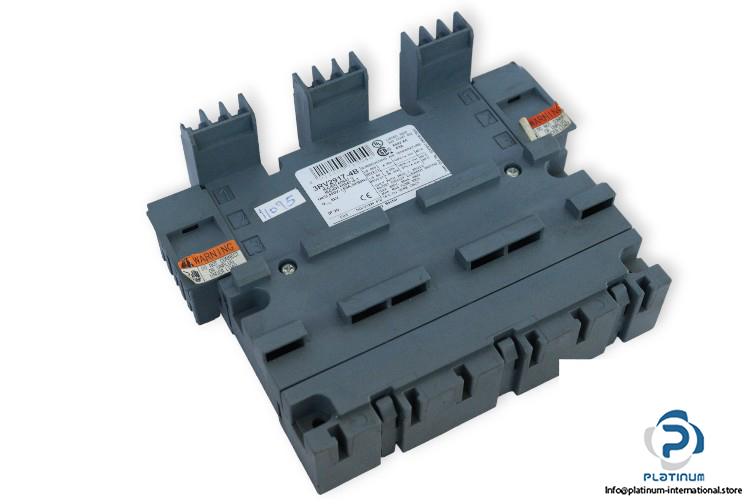

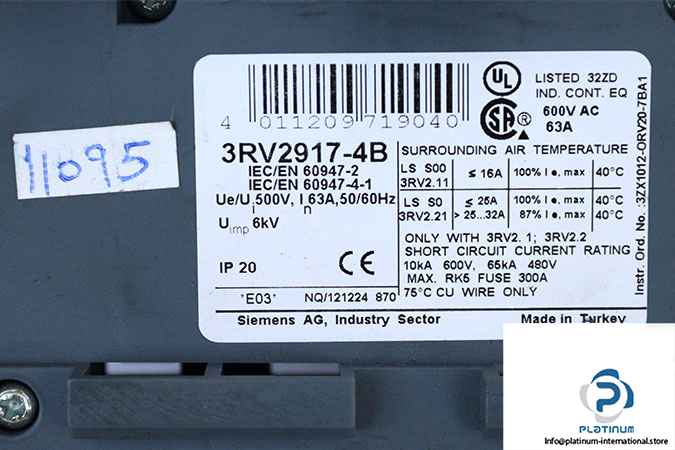

Siemens 3RV2917-4B 3-PHASE Busbar

Manufacture: Siemens
Type: 3-phase busbar including extension connector
MNR: 3RV29174B
Product brand name: SIRIUS

Used: for 3 circuit breakers (3RV2) Size S00 and S0
Design Of The Product: for 3 switches
Rated Insulation voltage Ui: 500 V
Operating voltage at AC according to UL rated value: 600 V
Nominal current In: 63 A
Thermal Current: 63 A
Frequency: 50/60 Hz
Rated impulse with stand voltage Uimp: 6 Kv
Power loss: 7.24 W
No. of poles: 3
Standard: IEC/EN 60947-2, IEC/EN 60947-4-1
Protection class: IP20
Ambient Temperature During Operation: -20 … 60°C
Fastening Method: Snap-On fastening on 35 mm DIN rail
Type Of Electrical Connection: plug-in without terminals
Dimensions: 129 x 136 x 59 mm
