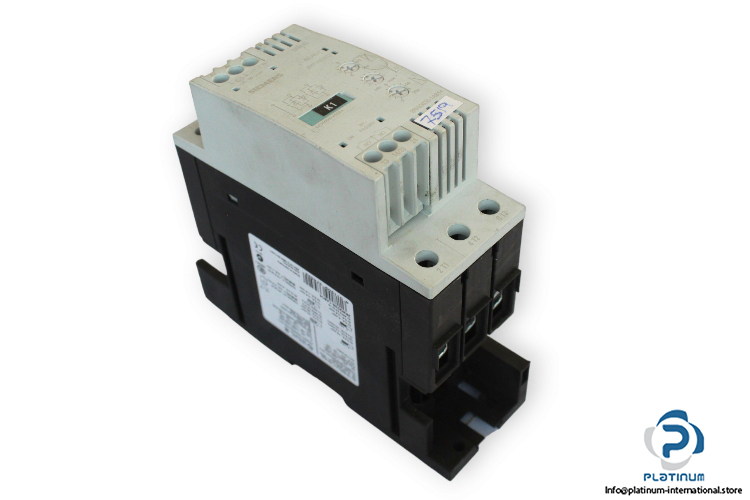

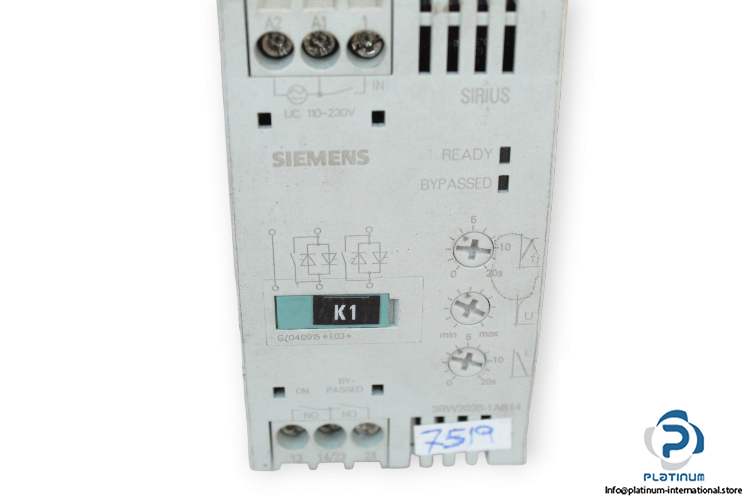

Siemens 3RW3036-1AB14 Soft Starter

Manufacturer: SIEMENS
Type: Soft Starter
Family: SIRIUS
Model: 3RW3036-1AB14

Size: S2
Control Supply Voltage (UC): 110 … 230 V AC / DC
Operating Voltage: 200 … 460 V AC
Operating frequency rated value: 50 … 60 Hz
Rated Continuous Current: 45 A
Power: 11 kW/230V, 22 kW/400V
Insulation Voltage: 600 V
Contact : 2 Normally Open (NO)
Mounting Type: Screw and snap-on mounting
Protection Category: IP 20
Dimensions: 55 x 160 x 170 mm
Derating Temperature: 40 °C
Amblent Temperature: -25 … 60 °C
