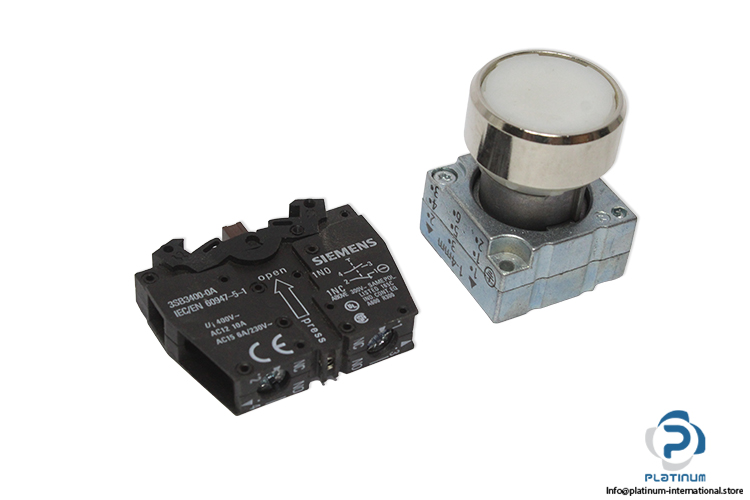

Siemens 3SB3 601-0AA61 Push Button With Contact Block
Push Button with Contact Block
The SIEMENS 3SB3601-0AA61 push button features a metal enclosure, rotate-to-unlatch mechanism, and includes a 1 NO + 1 NC contact block. Ideal for industrial control panels and automation systems.SIEMENS 3SB3601-0AA61 Push Button with Contact Block
The SIEMENS 3SB3601-0AA61 is a robust industrial push button designed for reliable control and switching operations in automation and electrical control panels. Part of the SIEMENS 3SB3 series, it features a metal enclosure, round form factor, and a rotate-to-unlatch unlocking mechanism for safe and intuitive operation.

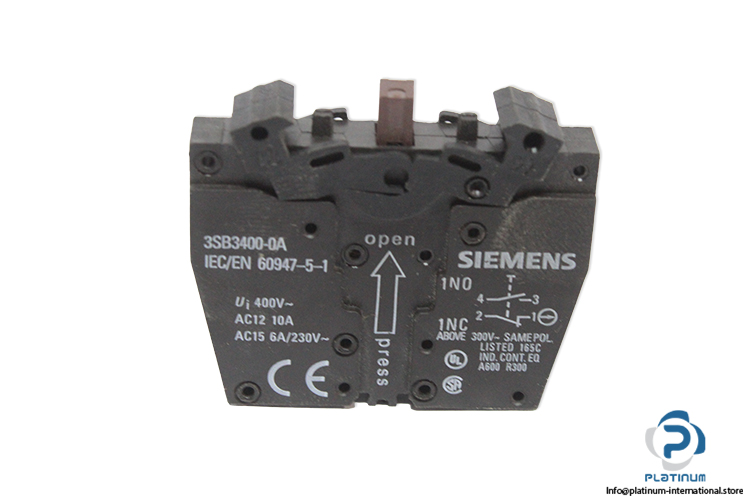

This unit is supplied complete with a SIEMENS 3SB3400-0A contact block, offering both NO and NC contacts, making it suitable for a wide range of industrial control and safety applications.
Manufacturer: SIEMENS
Type: Push Button with Contact Block
MRN: 3SB3601-0AA61
INST ORDER NO: 3ZX1012-0SB30-1AA1
Series: 3SB3
| Number of NC Contacts (Auxiliary) | 1 |
| Number of NO Contacts (Auxiliary) | 1 |
| Contacts | 1 NO + 1 NC |
| Number of Switching Positions | 2 |
| Type of Unlocking Device | Rotate-to-Unlatch Mechanism |
| Material of Enclosure | Metal |
| Form | Round |
| Contained Contact Block | SIEMENS 3SB3400-0A |
| Standards | IEC / EN 60947-5-1 |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Current (AC-12) | 10 A |
| Rated Current (AC-15) | 6 A / 230 V |
