Siemens 3SB3 644-6BA30 Indicator Light
New
In stock1 unitReady to ship
Indicator Light
The Siemens 3SB3 644-6BA30 Indicator Light with 3SB3400-1PA Lamp Holder features a 24V AC/DC supply, metal housing, and screw-type terminals for industrial applications.24v3SB33SB3400-1PA644-6BA30Ac/DcControlDeviceHolderHousingIndicatorIndustrialIP40LampLightMetalPanelPilotSiemenssignaling
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

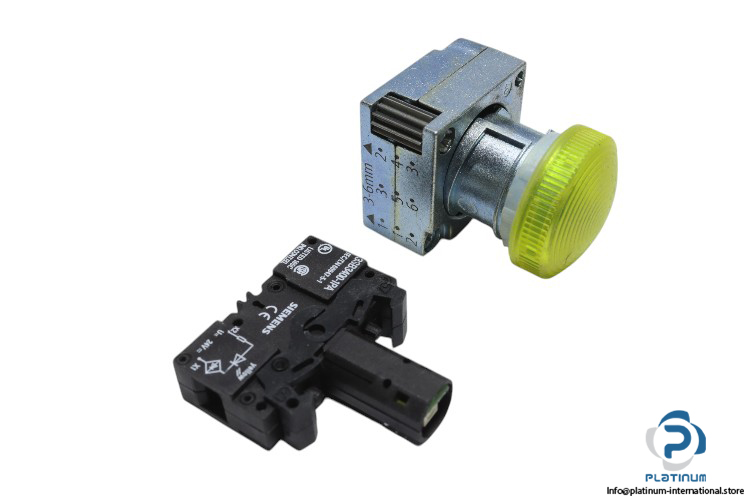

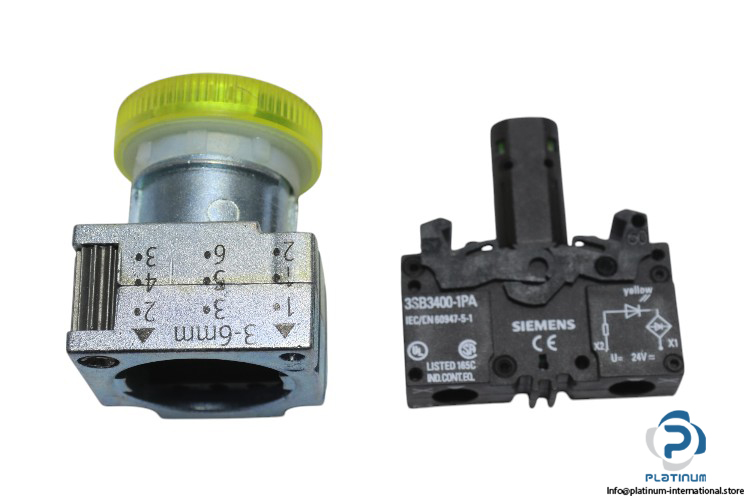

Siemens 3SB3 644-6BA30 Indicator Light with Lamp Holder
The Siemens 3SB3 644-6BA30 Indicator Light is a high-quality signaling device designed for industrial control panels. Featuring a durable metal housing, a 22mm mounting diameter, and screw-type terminals for secure connections, this complete unit ensures reliable operation in automation and control applications.
Manufacturer: Siemens
Type: Indicator Light
Part No.: 3SB3 644-6BA30
| Supply Voltage | 24 V AC/DC |
| Design of the Product | Complete Unit, Round |
| Material of the Housing | Metal |
| Design of the Electrical Connection | Screw-Type Terminals |
| Number of Lamp Holders | 1 |
| Mounting Diameter | 22 mm |

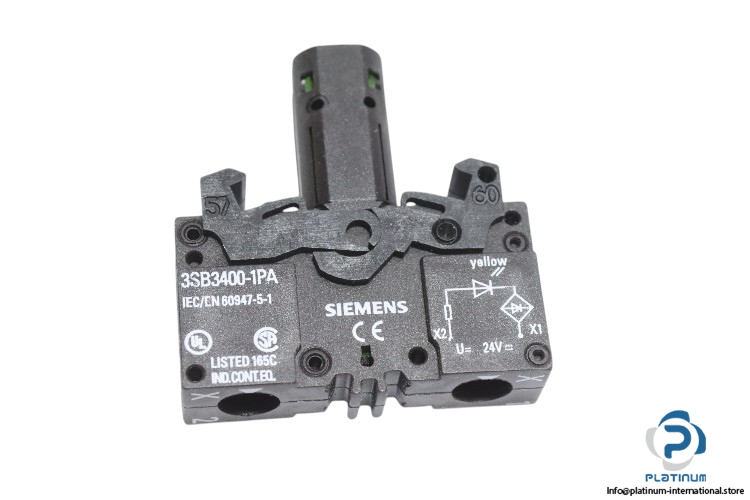

| Attachment | Siemens 3SB3400-1PA Lamp Holder |
| Part No. | 3SB3400-1PA |
| Supply Voltage | 24 V AC/DC |
| Insulation Voltage | 250 V |
| Surge Voltage Resistance Rated Value | 4 kV |
| Protection Class IP | Enclosure - IP40 / Terminal - IP20 |
| Consumed Current | 18 mA |
| Ambient Temperature | -25 to +70°C |
| Mounting Type | Front Mounting |
