Siemens 3SE5 112-0CD02 Position Switch
New
In stock1 unitReady to ship
POSITION SWITCH
Heavy-duty Siemens position switch with snap action contacts and roller plunger actuator. Rated for 230 V switching, IP66/IP67 protection, and up to 3 A current.1NC1NOActionActuatorAutomationCableContactEntryHighIndustrialIP67LimitPlungerPositionRollerSensorSiemensSnapSwitchvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

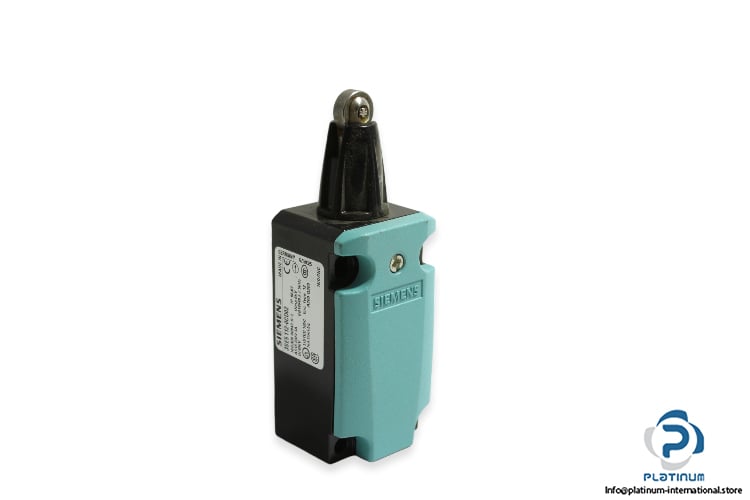

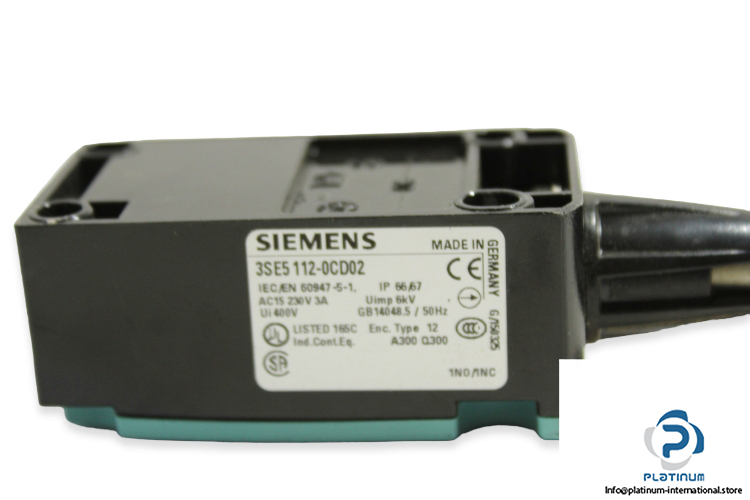

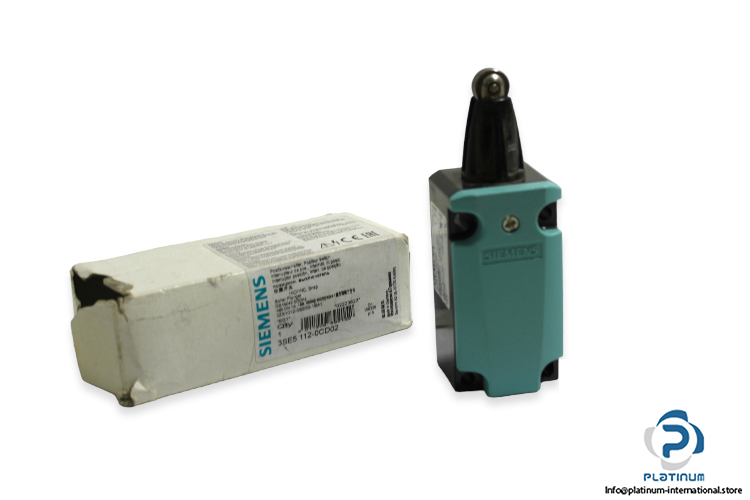

SIEMENS 3SE5 112-0CD02 POSITION SWITCH
The Siemens 3SE5 112-0CD02 is a rugged industrial position switch engineered for precise and reliable limit detection in automation systems. Featuring a snap-action contact mechanism and roller plunger actuator, it ensures fast response and consistent switching performance even in harsh operating environments.
Manufacturer: SIEMENS
Type: Position Switch
Model: 3SE5 112-0CD02
| Output Configuration | 1 NO / 1 NC |
| Contact Operation | Snap Action |
| Actuator Type | Roller Plunger |
| Rated Insulation Voltage | 400 V |
| Switching Voltage (Max) | 230 V |
| Contact Current (Max) | 3 A |
| Connection Type | Cable Entry |
| Protection Class | IP66 / IP67 |
| Ambient Operating Temperature | -25 / +85 °C |
