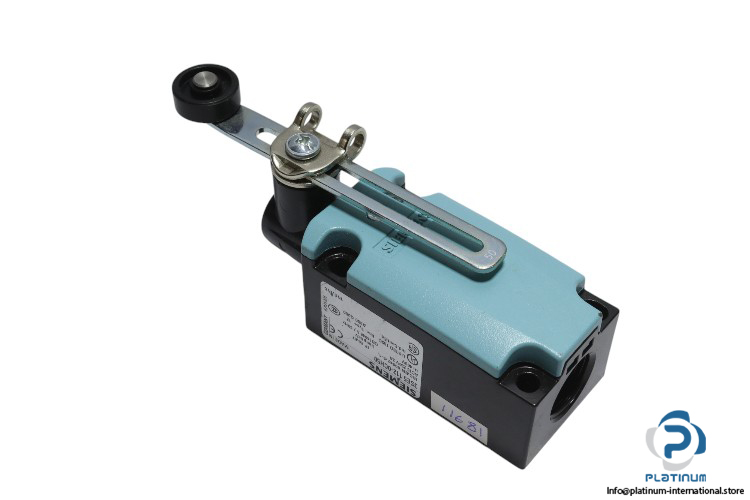

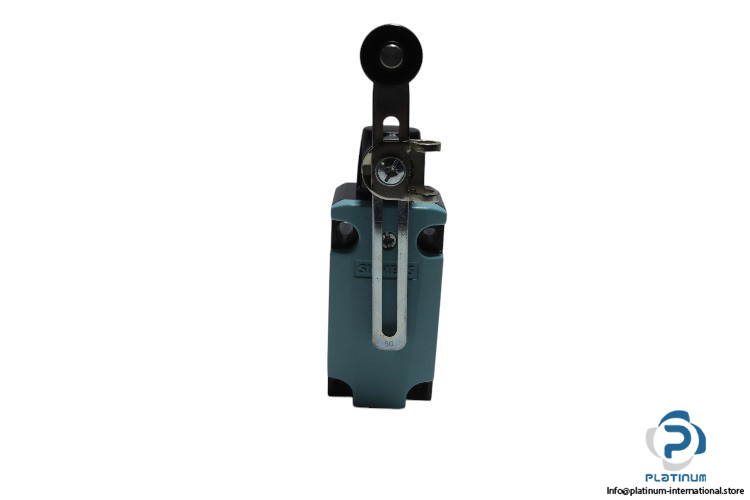

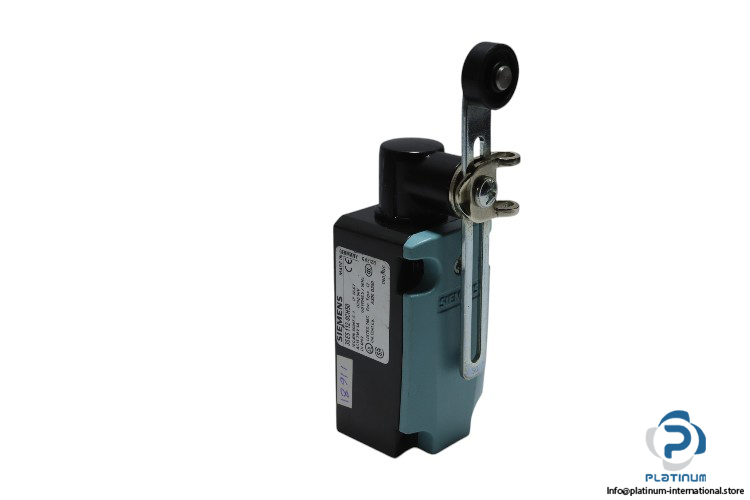

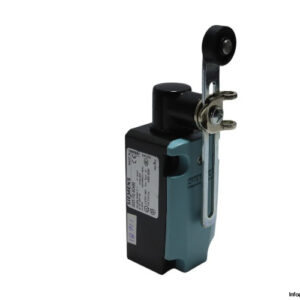

Siemens 3SE5 112-0CH50 Position Switch
Position Switch
The **Siemens 3SE5112-0CH50 Position Switch** offers **1 NO/1 NC output**, **rotary lever actuator**, **IP66/IP67 protection**, and **3 A max contact current**, ideal for industrial applications.Siemens 3SE5112-0CH50 Position Switch
The **Siemens 3SE5112-0CH50 Position Switch** from the **SIRIUS** brand offers precise and reliable position detection. Featuring a **1 NO/1 NC output configuration** and **snap-action contact operation**, this switch ensures quick and reliable response in industrial applications. The **rotary lever actuator** provides flexibility, with both **right/left adjustment** for versatile mounting and operation. With a **400 V insulation voltage** and a **6 kV rated impulse withstand voltage**, the switch is engineered to withstand electrical surges. It is rated for a **maximum switching voltage of 230 V** and can handle up to **3 A contact current**. The **M20 x 1.5 cable entry** allows for easy wiring integration. This switch is designed to meet the **IEC/EN 60947-5-1** standard and provides **IP66/IP67 protection**, ensuring durability in harsh industrial environments. The switch operates in an **ambient temperature range of -25 to +85 °C**, making it suitable for a wide range of applications.
Manufacturer: Siemens
Type: Position Switch
Model: 3SE5112-0CH50
The **Siemens 3SE5112-0CH50 Position Switch** is a durable and versatile solution for industrial automation, offering excellent performance under demanding conditions.
| Output Configuration | 1 NO / 1 NC |
| Contact Operation | Snap-action contact |
| Actuator Type | Rotary lever actuator (right/left adjustable) |
| Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Switching Voltage Max. | 230 V |
| Contact Current Max. | 3 A |
| Standard | IEC/EN 60947-5-1 |
| Connection | Cable entry type 1x (M20 x 1.5) |
| Protection Class | IP66 / IP67 |
| Ambient Operating Temperature | -25 to +85 °C |
