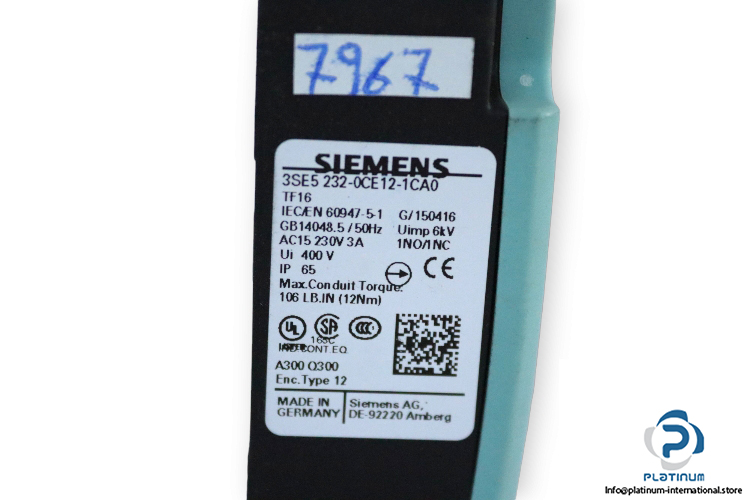

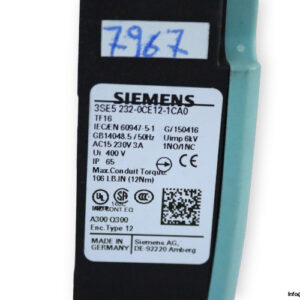

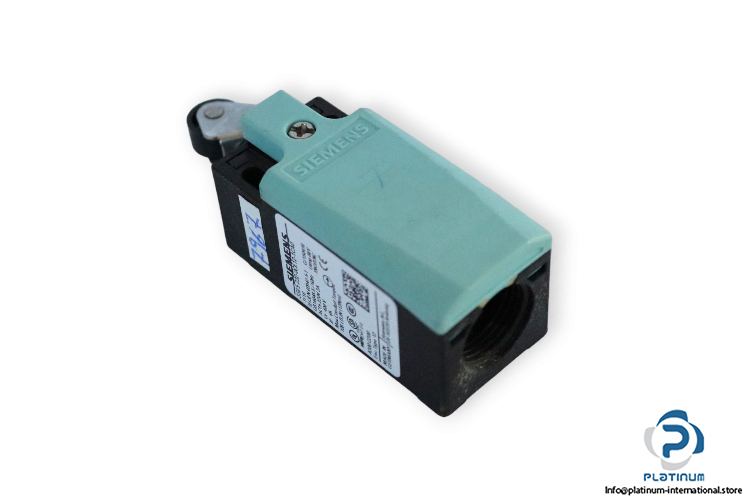

Siemens 3SE5 232-0CE12-1CA0 Position Switch

Manufacture: Siemens
Type: Position Switch
MNR: 3SE52320CE121CA0
Product brand name: SIRIUS
Product type designation: 3SE5

Insulation voltage rated value: 400 V
Surge voltage resistance rated value: 6 Kv
Thermal current: 10 A
Output Configuration: 1 NO +1 NC
Contact Operation: snap-action

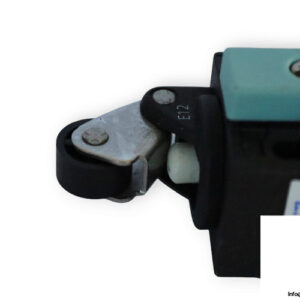

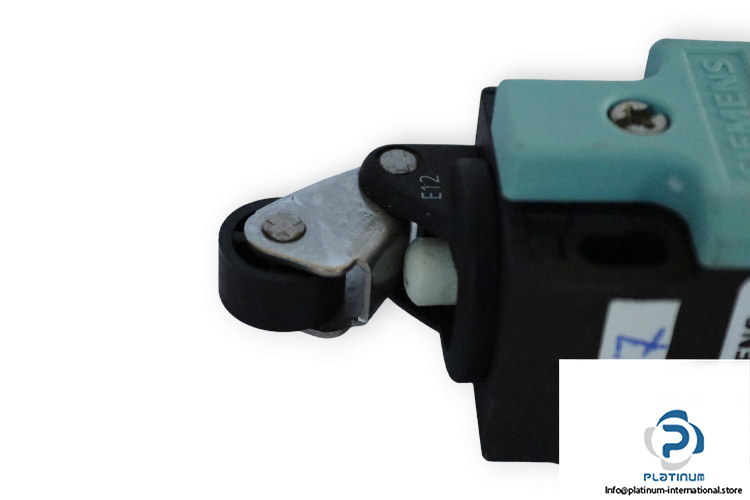

Design of the actuating element: Roller lever, high-grade steel lever, plastic roller
Fastening method: screw fixing
Switching Voltage max.: 230 V AC
Contact Current max.: 3 A
Cable entry type: 1x (M20 x 1.5)
Type of electrical connection: screw-type terminals
Protection Class: IP65
Ambient Operating Temperature: -25 … +85 °C
Dimensions: 68 x 31 x 33 mm
