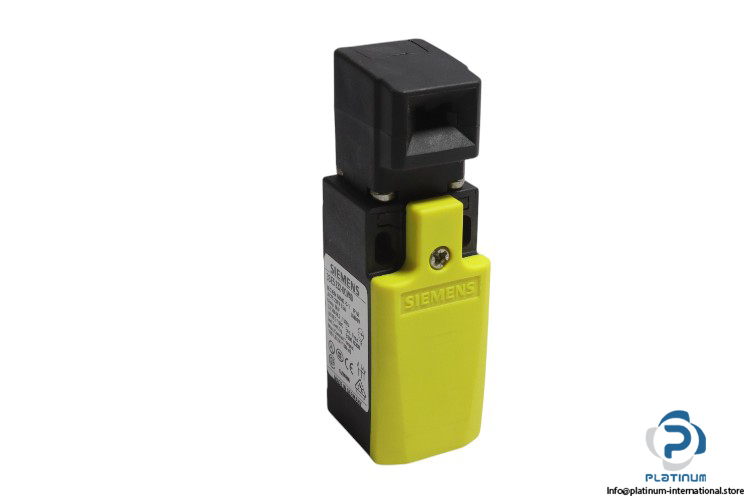

Siemens 3SE5 232-0QV40 Safety Position Switch
Safety Position Switch
The Siemens SIRIUS 3SE5232-0QV40 Safety Position Switch features 1 normally open + 2 normally closed contacts, 6 kV surge voltage resistance, and IP65 protection, ensuring reliable safety for industrial applications.Siemens SIRIUS Safety Position Switch 3SE5232-0QV40
The Siemens SIRIUS 3SE5232-0QV40 Safety Position Switch is designed for safety-critical applications, offering reliable performance in various industrial environments. It features a combination of normally open and normally closed contacts, with a high surge voltage resistance of 6 kV, making it ideal for protecting machinery and ensuring safe operation in hazardous conditions.
Manufacturer: Siemens
Type: Safety Position Switch
MNR: 3SE5232-0QV40
Designation: 3SE5
Brand: SIRIUS
Built for robust and reliable performance, the Siemens SIRIUS 3SE5232-0QV40 Safety Position Switch ensures safety and protection across a range of industrial applications, with superior environmental protection and operational durability.
| Output Configuration | 1 Normally open + 2 Normally closed |
| Surge Voltage Resistance (Uimp) | 6 kV |
| Contact Operation | Slow-action contact |
| Insulation Voltage (Ui) | 400 V |
| Thermal Current | 10 A |
| Type of Electrical Connection | Screw terminal |
| Switching Voltage Max | 230 V |
| Contact Current Max | 1.5 A |
| Connection | Cable entry, M20 x 1.5 |
| Length of Sensor | 104 mm |
| Width of Sensor | 31 mm |
| Standard | IEC/EN 60947-5-1 |
| Protection Class | IP65 |
| Ambient Temperature | -25 to +85 °C |
