Siemens 3SU1801-0NB00-2AC2 Enclosure
New
In stock1 unitReady to ship
Siemens Enclosure 3SU1801-0NB00-2AC2
Industrial-grade enclosure with a protective collar, IP69K rating, and durable yellow plastic top, operating at 5-500 V AC/DC.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Siemens Enclosure 3SU1801-0NB00-2AC2

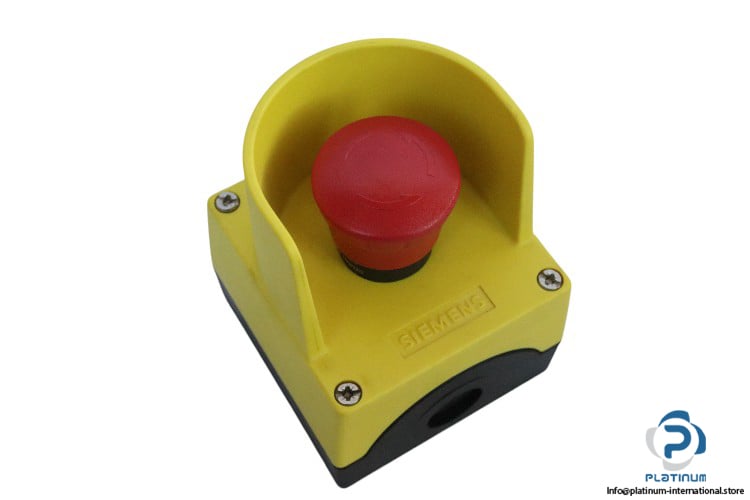

The Siemens 3SU1801-0NB00-2AC2 Enclosure is designed for industrial environments, offering superior protection and durability. With a square front and a yellow plastic top, this enclosure features a protective collar for added safety. Rated for up to IP69K protection, it is ideal for demanding conditions and operates at voltages from 5 to 500 V AC/DC.
Specifications:
- Design of the Housing: With protective collar
- Shape of the Enclosure Front: Square
- Material of the Enclosure: Plastic
- Color of the Enclosure Top Part: Yellow
- Number of Contact Modules: 2
- Protection Class: IP66, IP67, IP69 (IP69K)
- Operating Voltage: 5 … 500 V AC/DC
- Frequency: 50/60 Hz
- Contacts: 1 NC, 1 NC
- Type of Electrical Connection: Screw-type terminal
- Cable Routing: Above and below, both 1 x M20
- Tightening Torque:
- Screws in the Bracket: 1 … 1.2 N·m
- Fixing Screws in the Enclosure Cover: 1.5 … 1.7 N·m
- Screw-type Terminals: 0.8 … 0.9 N·m
- Ambient Temperature: -25 … +70 °C
- Dimensions (H X W X D): 85 x 85 x 112.5 mm
