Siemens 3TF2010-0AP0 Contactor
New
In stock4 unitsReady to ship
20,00$
MINIATURE CONTACTOR
Siemens 3TF20 10-0AP0 compact miniature contactor with 4 kW power, 9 A current rating, and 230 V AC coil voltage. Ideal for reliable industrial control and switching applications.ACAutomationcoilCompactComponentContactorControlDeviceElectricalIECIndustrialMiniatureSiemensSwitchSwitching
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

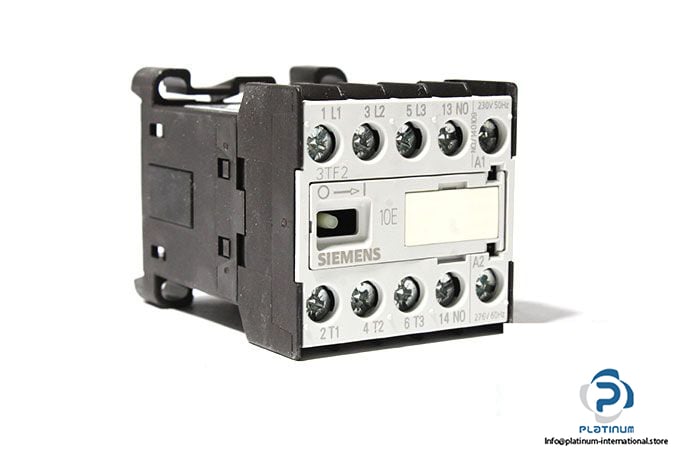

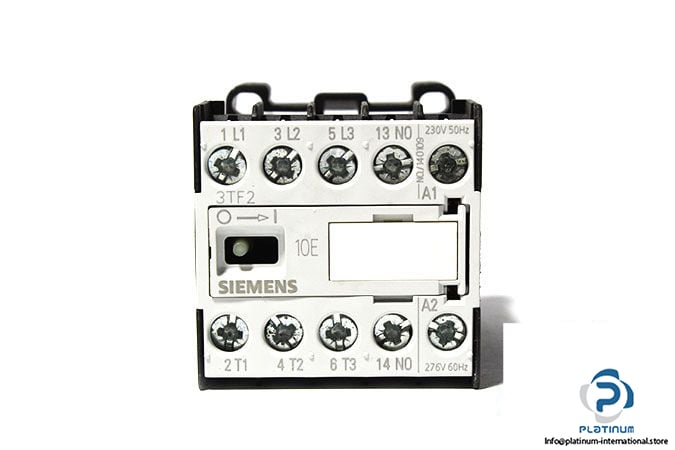

SIEMENS 3TF20 10-0AP0 MINIATURE CONTACTOR
The Siemens 3TF20 10-0AP0 is a compact and reliable miniature contactor designed for control and switching applications in industrial environments. Built to Siemens' high standards, it offers dependable performance, long service life, and compliance with IEC/EN 60947-4-1 standards.
Manufacturer: Siemens
Type: Contactor
Model: 3TF20 10-0AP0
INST ORD NO: 3ZX1012-0TF20-1AA2
Successor Type: Sirius 3RT201 or 3TG10
Size: 0
Designation: Miniature Contactor
| Control Supply Voltage | 230 V AC 50 Hz / 276 V AC 60 Hz |
| Control Supply Voltage Frequency | 50 / 60 Hz |
| Rated Operating Power | 4 kW (400 V AC) |
| Rated Operating Current | 9 A (400 V AC) |
| Auxiliary Contacts | 1 Normally Open (1NO) |
| Standard | IEC/EN 60947-4-1 |
| Protection Class IP | IP20 |
| Operation Ambient Temperature | -25 / 55 °C |
| Dimensions (W x D x H) | 45 x 68 x 48 mm |
