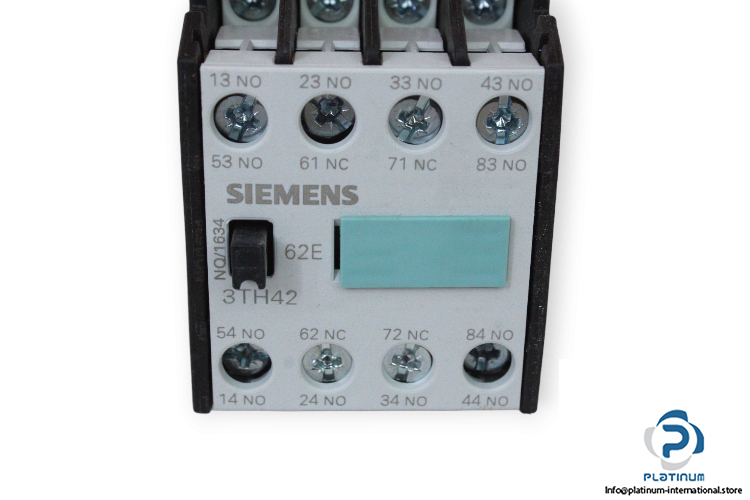

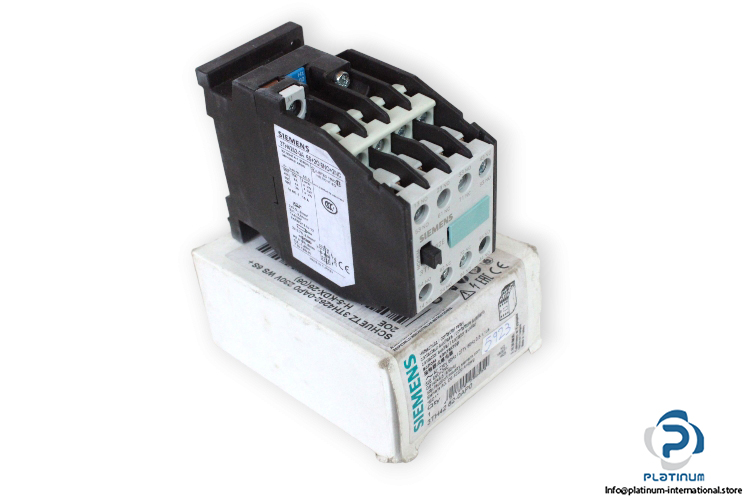

Siemens 3TH42 62-0AP0 Contactor Relay

Manufacturer: SIEMENS
Type: Contactor relay
Model: 3TH4262-0AP0

Type Of Voltage Of The Control Supply Voltage: AC
Control Supply Voltage At AC:
At 50 Hz Rated Value: 230 V
At 60 Hz Rated Value: 277 V
Contacts: 6NO + 2NC
operational current at AC-15:
at 230 V rated value 10 A
at 400 V rated value 6 A
Height: 78 mm
width: 45 mm
depth: 102 mm
Rated power at 400 VAC: 4 kW
type of electrical connection for auxiliary and control circuit: screw-type terminals
Ambient Temperature: -25 … +55 °C
