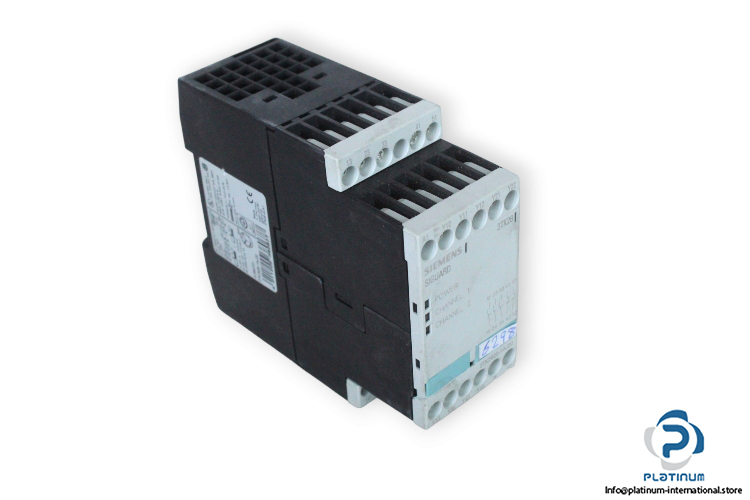

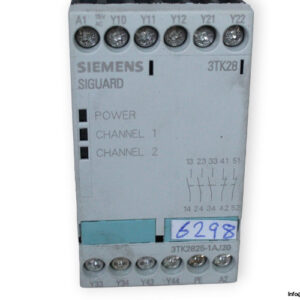

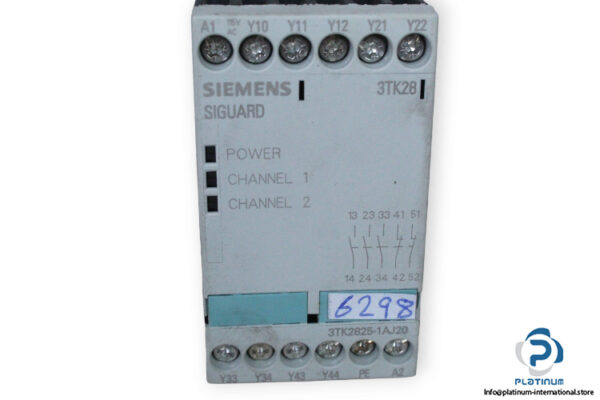

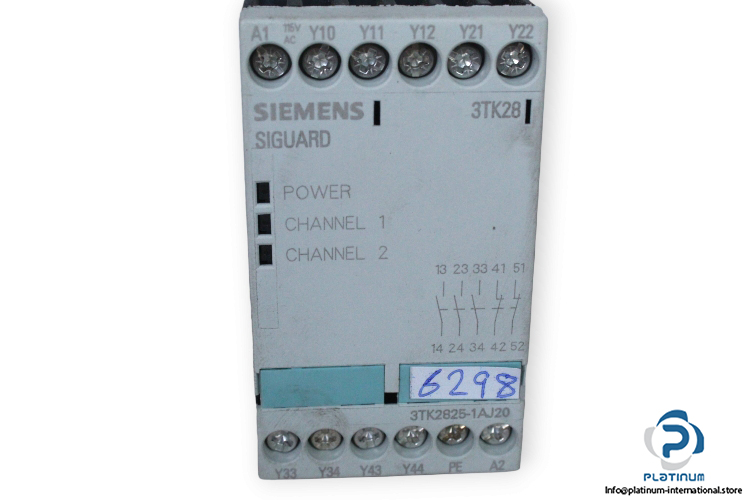

Siemens 3TK2825-1AJ20 Safety Relay
Manufacturer: Siemens
Type: Safety Relay
Model: 3TK2825-1AJ20
Voltage: 115 V AC
Frequency: 50 … 60 Hz
Insulation Voltage: 300 V
Rated Impulse Withstand Voltage: 4 kV
Contact Configuration: 3 Normally Open, 2 Normally Close
Contact Voltage: 24 … 230 V AC/DC
Contact Current: 6 … 0.1 A (DC)/ 6 A (AC)
Torque: 0.8 … 1.2 Nm
Operating Temperature: -20 … 60 °C
Degree of protection: IP20
Dimensions: 44.8 X 138.5 X 120 mm
