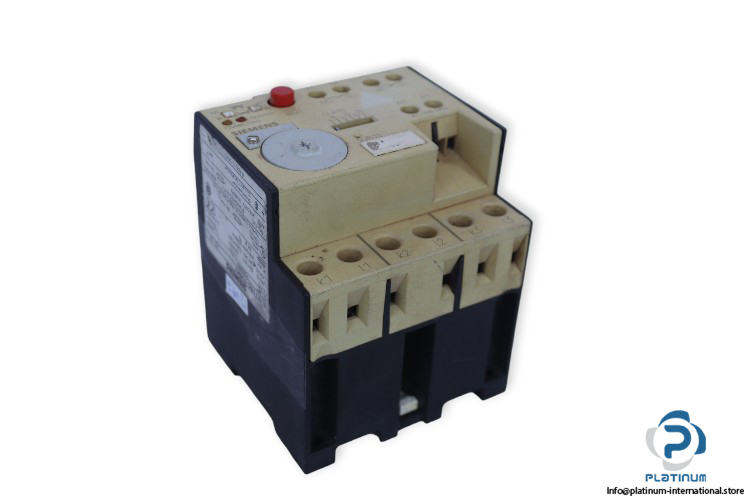

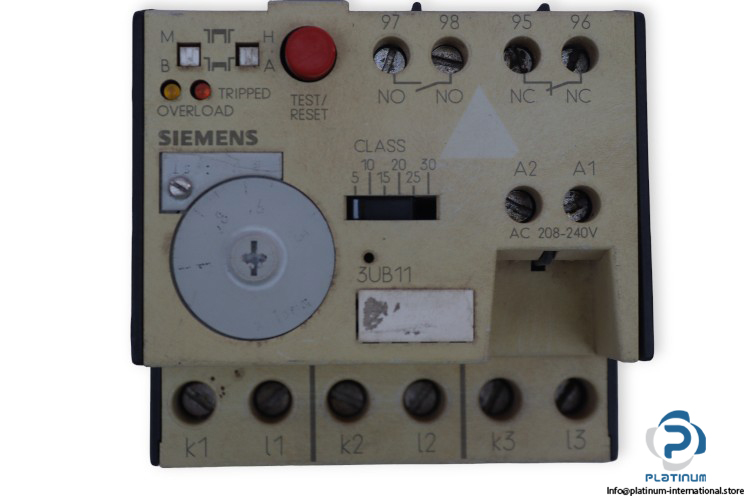

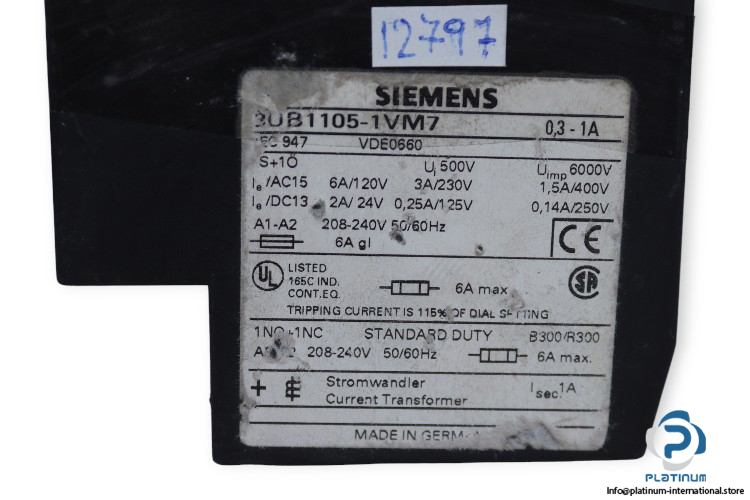

Siemens 3UB1105-1VM7 Tripping Unit
Manufacturer: Siemens
Type: Tripping Unit
MNR: 3UB11051VM7
Series: 3UB11
Supply Voltage range: 208 … 240 V AC
Frequency: 50/60 Hz
Current: 0.3 … 1 A
Insulation voltage Ui: 500 V
Rated impulse withstand voltage Uimp: 6000 V
Output: 1 NO,1 NC contact
Switching rating:
AC-15: 6A/120 V,3A/230 V,1.5A/400 V
DC-13: 2A/24 V,0.25A/125 V,0.14A/250 V
Fuse: 6A max.
Standard: IEC 947, VDE0660
