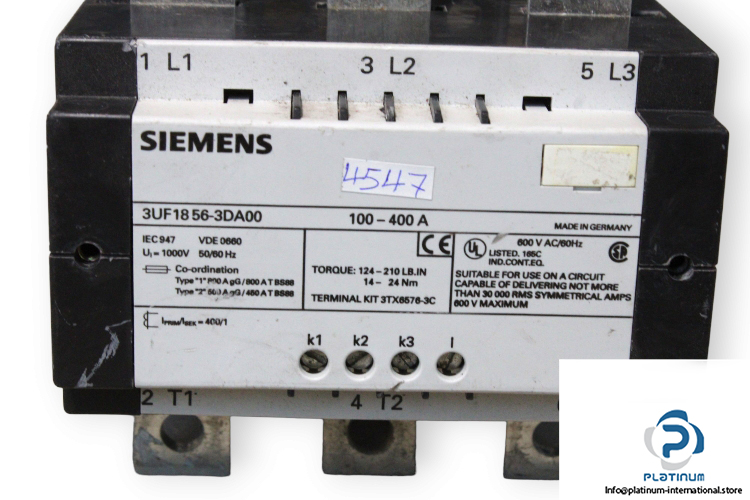

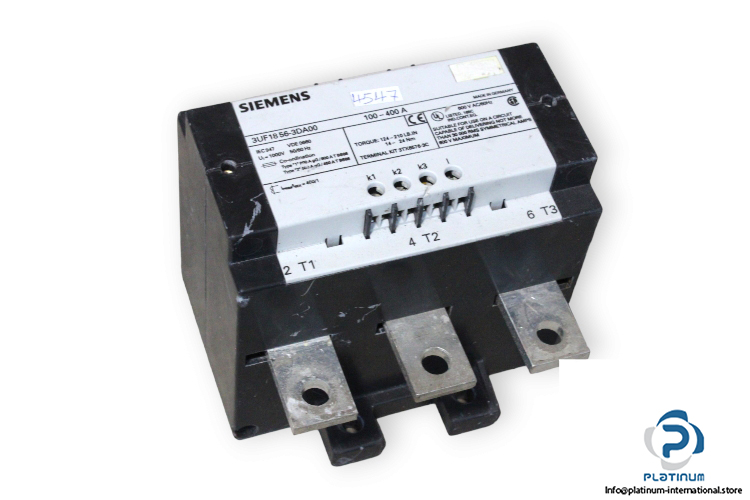

Siemens 3UF1856-3DA00 Current Transformer

Manufacturer: Siemens
Type: Current Transformer
MNR: 3UF1856-3DA00

Current:
• at the input / minimum 100 A
• at the input / maximum 400 A
• secondary side / maximum 1 A
Ratio input current/output current: 400/1 A
Number of poles: 3
Apparent loss power: 0.5 VA Min.,7 VA max.
Design of the electrical connection: screw-type terminals, flat connector
Mounting type: screw mounting for mounting on contactors and standalone installations
Operation Temperature: -25 … 60 °C
Protection class: IP20
