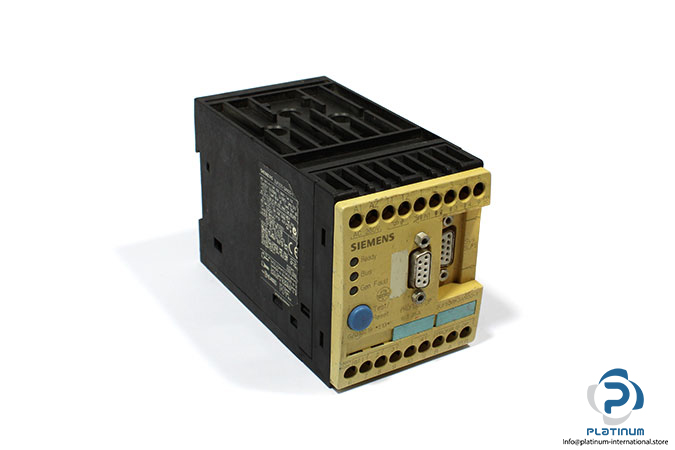

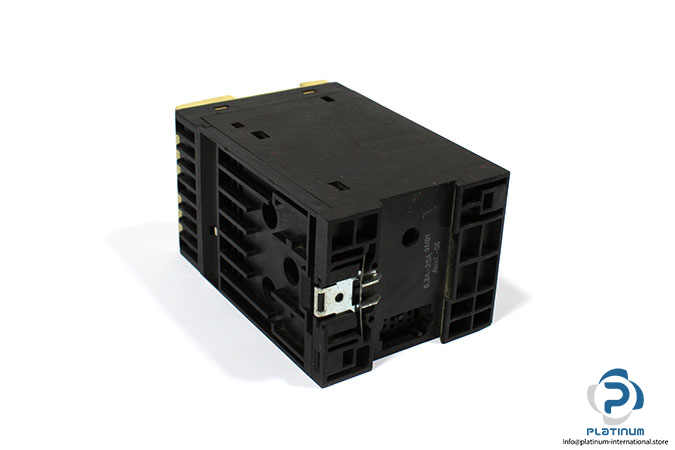

Siemens 3UF5011-3AN00-1 Simocode-DP Basic Unit

Manufacturer: Siemens
Type: Simocode-Dp Basic Unit
MNR: 3UF50113AN001

Operating voltage: 110 … 690 V
Frequency: 50 … 60 Hz
Control supply voltage: 230 V AC
Insulation voltage Ui: 690 V
Rated impulse with stand voltage Uimp: 6 kV
Adjustable response value current: 6.3 … 25 A
Number of Inputs: 4
Number of Outputs: 4
Number of poles for main current circuit: 3
Number of NO contacts: 4 for auxiliary contacts
Standard: IEC 947-4-1, IEC 947-5-1
Protection Class: IP20
Type of electrical connection:
— for main current circuit: straight-through transformers
— for auxiliary and control current circuit: screw-type terminals
Mounting Type: Screw and Snap-On Mounting
Ambient Temperature: -25 … +60 °C
Dimensions: 85 x 70 x 133 mm
