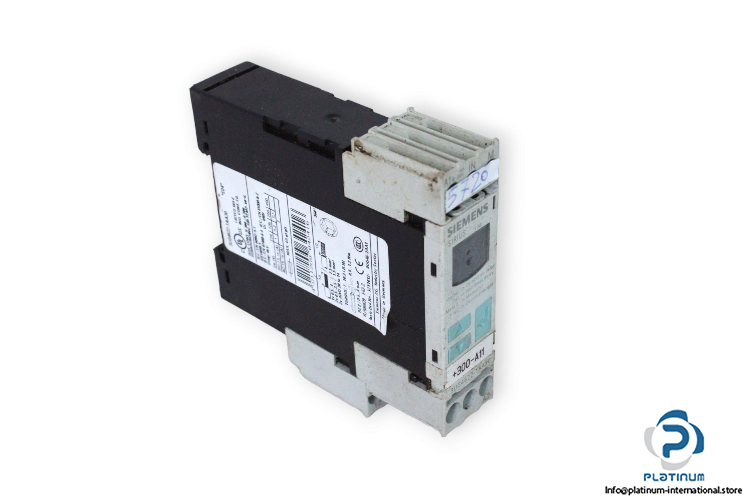

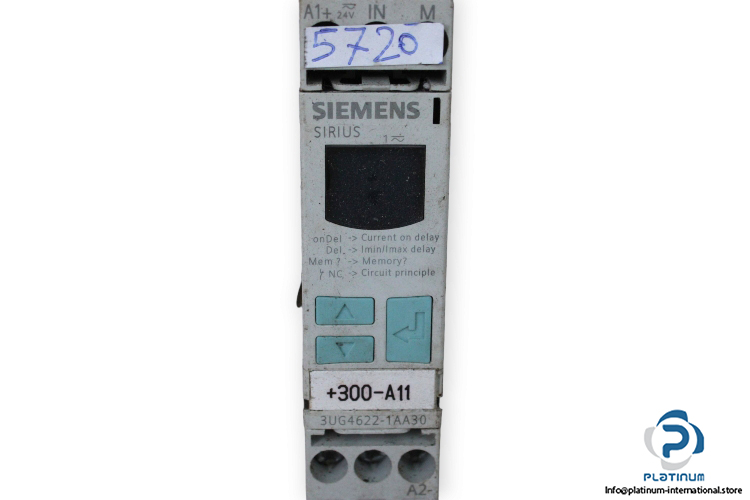

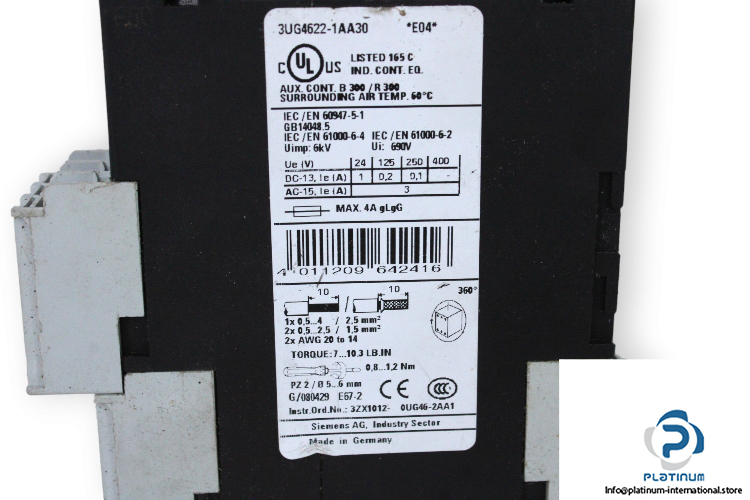

Siemens 3UG4622-1AA30 Digital Monitoring Relay

Manufacturer: Siemens
Type: Digital Monitoring Relay
Model: 3UG4622-1AA30

Supply Voltage: 24 V AC/DC
Adjustable Current Response Value: 0.05 … 10 A
Frequency: 50 … 60 Hz

Insulation Voltage: 690 V
Rated Impulse withstand Voltage: 6 kV
Degree of Pollution: 3
Number of Poles: 1
Fastening Method: Snap-On Mounting
Electrical Connection: Screw Type Terminals
Contact Configuration: 1 Changeover (CO)
Contact Rating: 400 V AC/ 3 A, 24 … 250 V DC/ 1 … 0.1 A
Continuous Current of The DIAZED Fuse Link of The Output

Relay: 4 A
Tightening Torque with Screw-Type Terminals: 0.8 … 1.2 N·m

Operating Temperature: -25 … 60 °C
Degree of protection:  IP20
Dimensions: 92 X 22.5 X 91 mm
