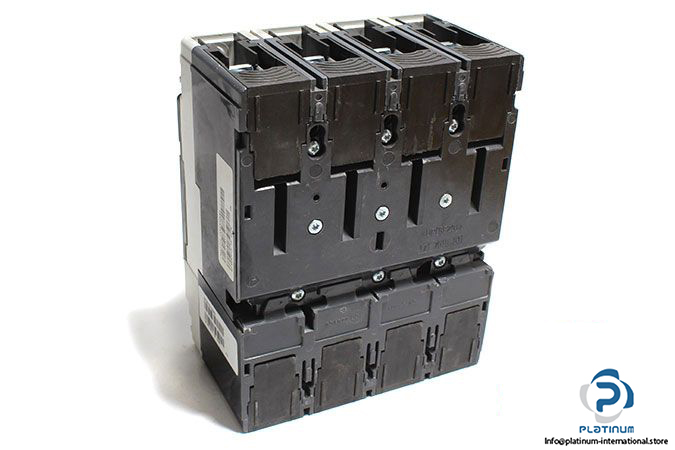

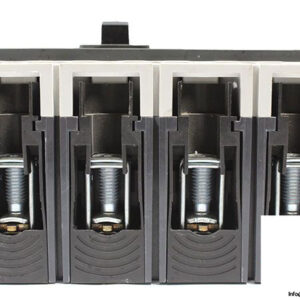

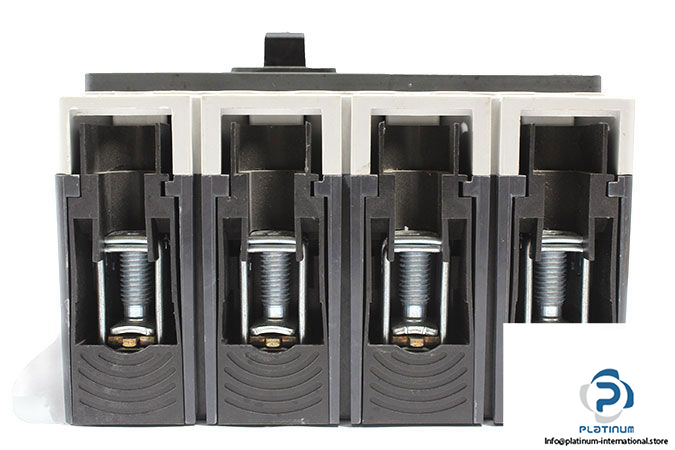

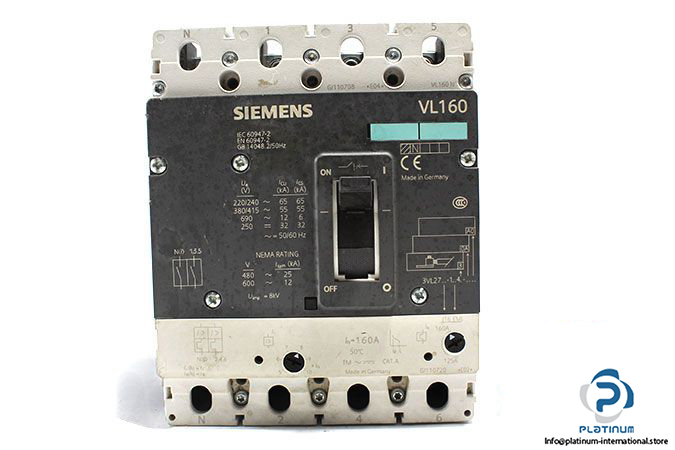

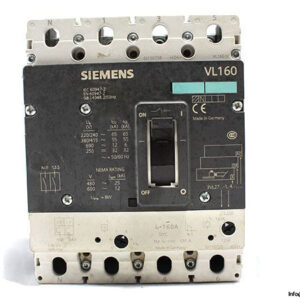

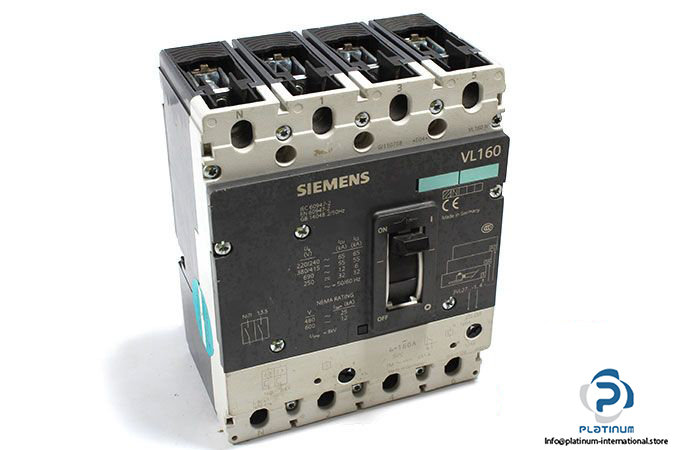

Siemens 3VL2716-1EM43-0AA0 Molded Case Circuit Breaker

SIEMENS VL160 MOLDED-CASE CIRCUIT BREAKER “ 3VL SERIES

The Siemens VL160 molded-case circuit breaker from the Sentron family is engineered for high-performance electrical protection in industrial and commercial applications. Designed for fixed mounting, this 4-pole circuit breaker ensures reliable line protection with thermomagnetic trip functionality and conforms to global safety standards.

Manufacturer: Siemens
Type: Molded-Case Circuit Breaker
Family: Sentron
Series: 3VL
Designation: VL160
Size: 3VL2

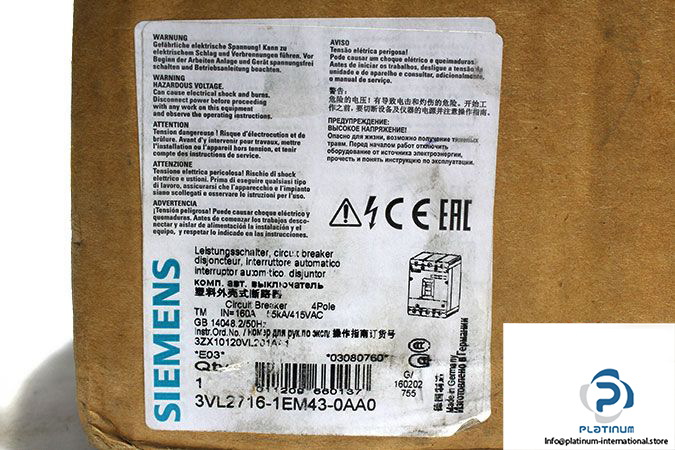

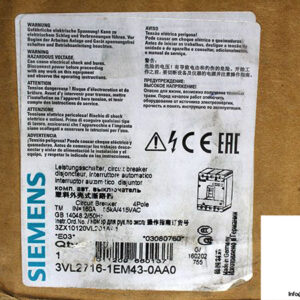

Order No.: 3VL2716-1EM43-0AA0
REF No.: 03080760

Consists of:

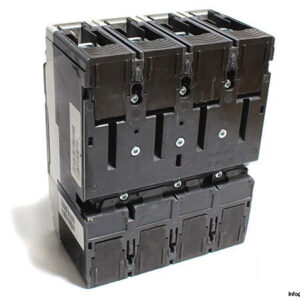

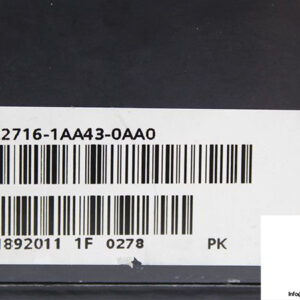

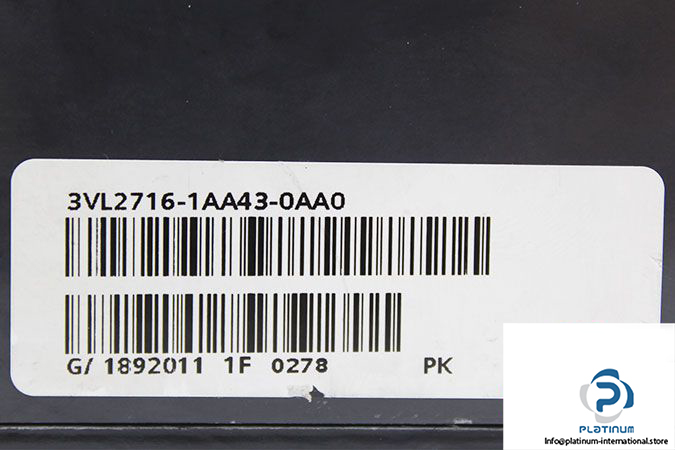

SIEMENS 3VL2716-1AA43-0AA0 BASIC BREAKER

• Model: VL160N
• Article No.: 3VL2716-1AA43-0AA0
• Number of Poles: 4
• Operating Frequency: 50/60 Hz
• Rated Surge Voltage Resistance (Uimp): 8 kV
• Rated Operational Voltage (Ue): 690 V AC
• Rated Insulation Voltage (Ui): 800 V AC
• Rated Breaking Capacity (Icu):
  • 65 kA / 240 V AC
  • 55 kA / 415 V AC
  • 12 kA / 690 V AC
• Standards: IEC 60947-2 / EN 60947-2
• Switching Capacity Class: Normal (N)
• Field of Application: Line Protection
• Mounting: Fixed

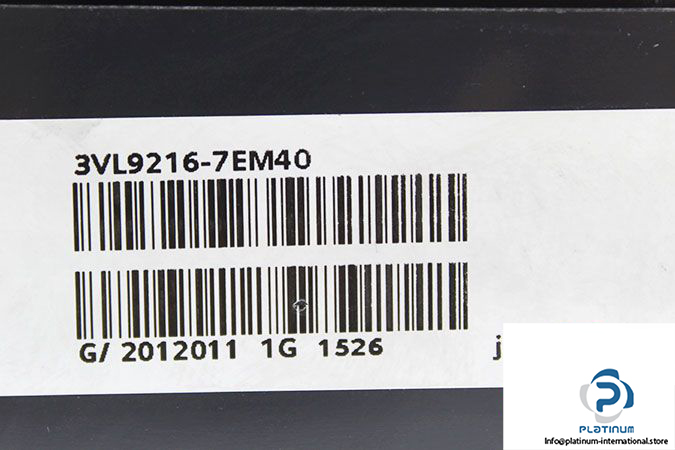

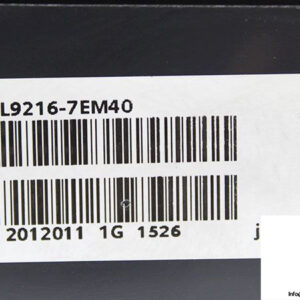

SIEMENS 3VL9216-7EM40 OVERCURRENT TRIP UNIT

• Type: Thermomagnetic (TM)
• Article No.: 3VL9216-7EM40
• Number of Poles: 4
• Rated Current (In): 160 A
• Overload Protection (IR): 125 / 160 A
• Protective Functions: LIN (Overload, Instantaneous, Neutral Protection)
• Protection Class: IP20
• Dimensions (H x W x D): 174.5 x 139.5 x 106.5 mm
• Ambient Operating Temperature: 0 / 70 °C
