Siemens 3VL2716-1TF43-0AA0 Molded Case Circuit Breaker

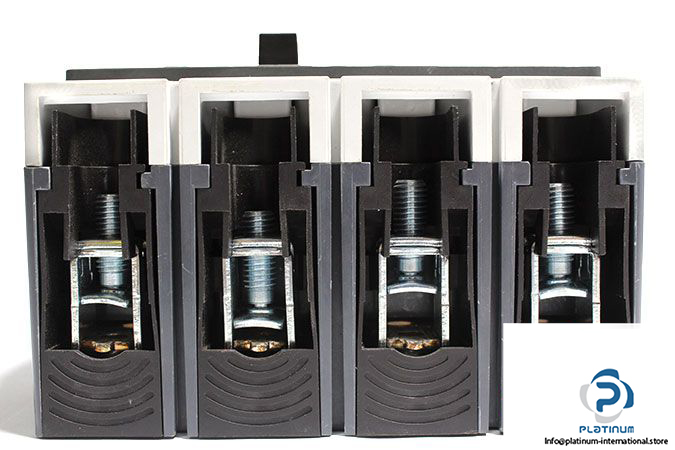

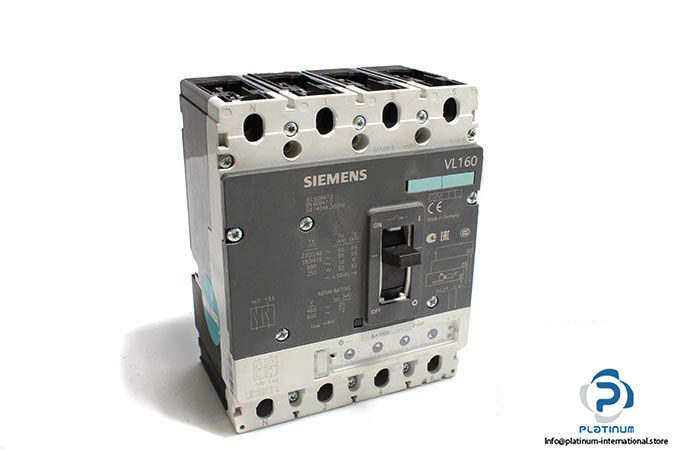

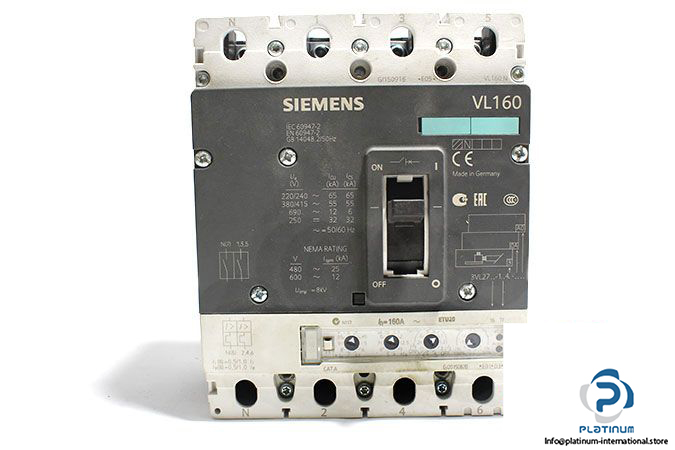

SIEMENS 3VL VL160 MOLDED-CASE CIRCUIT BREAKER

The SIEMENS VL160 from the Sentron 3VL series is a high-performance molded-case circuit breaker designed for industrial line protection applications. Engineered to meet international standards, it combines a basic breaker with an advanced electronic trip unit, offering robust protection and reliable operation in harsh environments.

Manufacturer: SIEMENS
Type: Molded-Case Circuit Breaker
Family: Sentron
Series: 3VL
Designation: VL160
Size: 3VL2
Order No.: 3VL2716-1TF43-0AA0

Consists of:

SIEMENS 3VL2716-1AA43-0AA0 CIRCUIT BREAKER

• Type: Basic Breaker
• Model: VL160N
• Article No.: 3VL2716-1AA43-0AA0
• Number of Poles: 4
• Operating Frequency: 50/60 Hz
• Rated Surge Voltage Resistance (Uimp): 8 kV
• Rated Operational Voltage (Ue): 690 V AC
• Rated Insulation Voltage (Ui): 800 V AC
• Rated Breaking Capacity (Icu):
  • 65 kA / 240 V AC
  • 55 kA / 415 V AC
  • 12 kA / 690 V AC
• Standards: IEC 60947-2 / EN 60947-2
• Switching Capacity Class: Normal Switching Capacity (N)
• Field of Application: Line protection
• Mounting: Fixed

SIEMENS 3VL9216-6TF40 TRIP UNIT

• Type: Overcurrent Trip Unit
• Model: ETU20 with Rotary Buttons
• Article No.: 3VL9216-6TF40
• Overcurrent Release: Electronic Trip Unit “ ETU
• Number of Poles: 4
• Rated Current (In): 160 A
• Overload Protection Current (IR): 64 / 160 A
• Protective Functions: LSIN (L = Overload, S = Delayed Short-Circuit, I = Instantaneous Short-Circuit, N = Neutral Protection)
• Protection Class: IP20
• Dimensions (H x W x D): 174.5 x 139.5 x 106.5 mm
• Ambient Temperature: -25 to 70 °C
