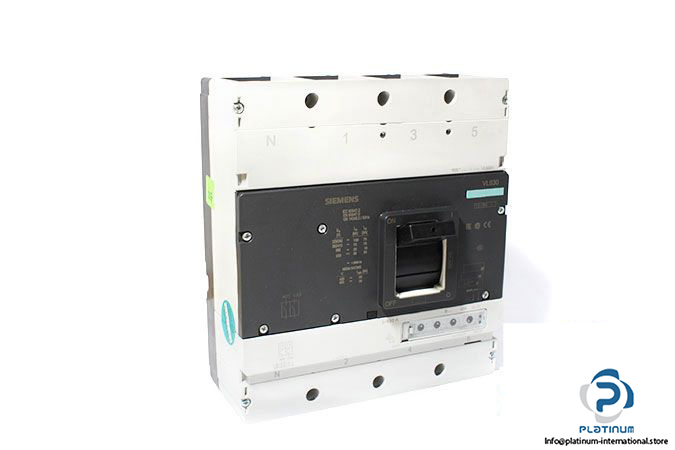

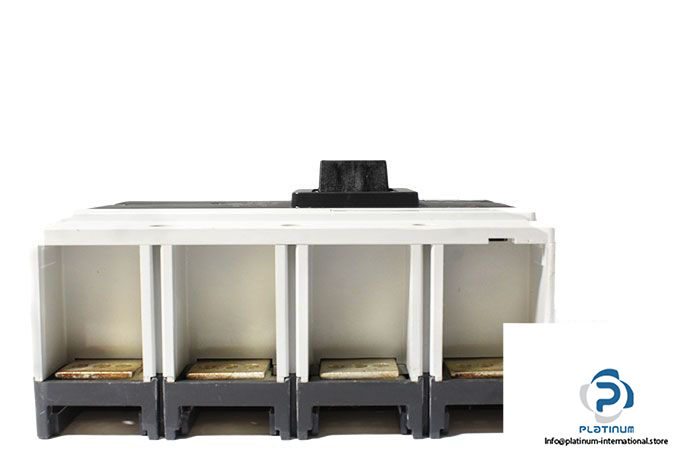

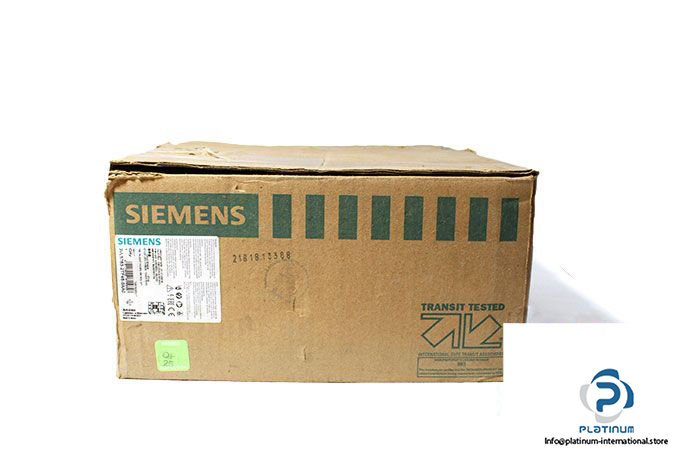

Siemens 3VL5763-2TF46-0AA0 Molded Case Circuit Breaker

SIEMENS VL630 MOLDED CASE CIRCUIT BREAKER – SENTRON SERIES

The Siemens VL630 Molded Case Circuit Breaker from the Sentron family is a high-performance solution engineered for industrial electrical protection. Designed with durability and safety in mind, it features advanced trip technology and compliance with international standards.

Manufacturer: SIEMENS
Type: Molded Case Circuit Breaker
Family: Sentron
Series: 3VL
Designation: VL630
Size: 3VL5

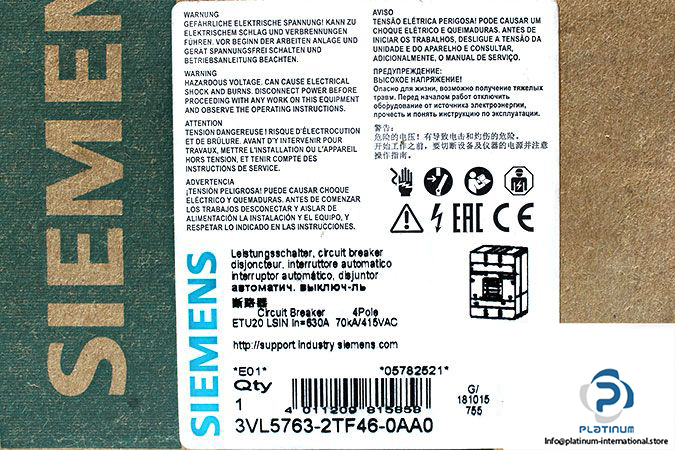

Order No.: 3VL5763-2TF46-0AA0
REF NO: 3VL5763-2TF46-0AA0

Consists Of:

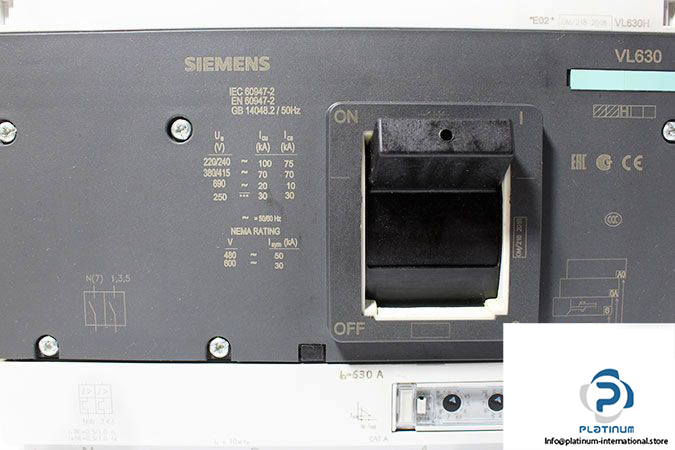

1. SIEMENS 3VL5763-2AA46-0AA0 Circuit Breaker

• Type: Basic Breaker
• Model: VL630H

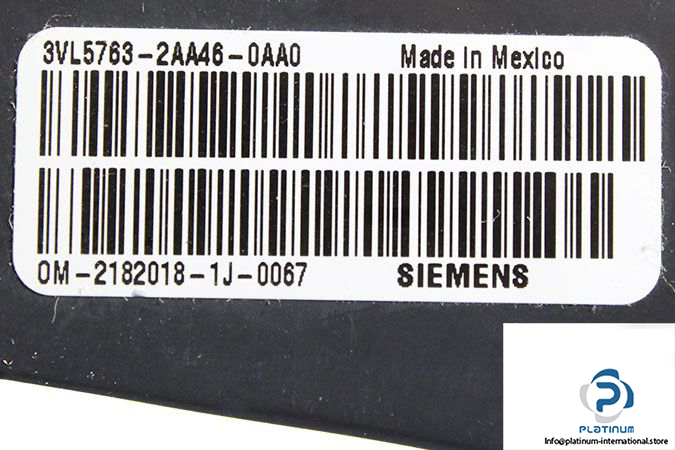

• Article No.: 3VL5763-2AA46-0AA0
• REF NO: OM-2182018-1J-0067
• Number of Poles: 4
• Operating Frequency: 50 “ 60 Hz
• Rated Surge Voltage Resistance (Uimp): 8 kV
• Rated Operating Voltage (Ue): 690 V AC
• Rated Insulation Voltage (Ue): 800 V AC
• Rated Breaking Capacity (Icu):
  • 100 kA at 240 V AC
  • 70 kA at 415 V AC
  • 20 kA at 690 V AC
• Standards: IEC 60947-2 / EN 60947-2
• Switching Capacity Class: High Switching Capacity (H)
• Field of Application: Line Protection
• Mounting: Fixed

2. SIEMENS 3VL9563-6TF40 Trip Unit

• Type: Overcurrent Trip Unit
• Model: ETU20 with Rotary Buttons

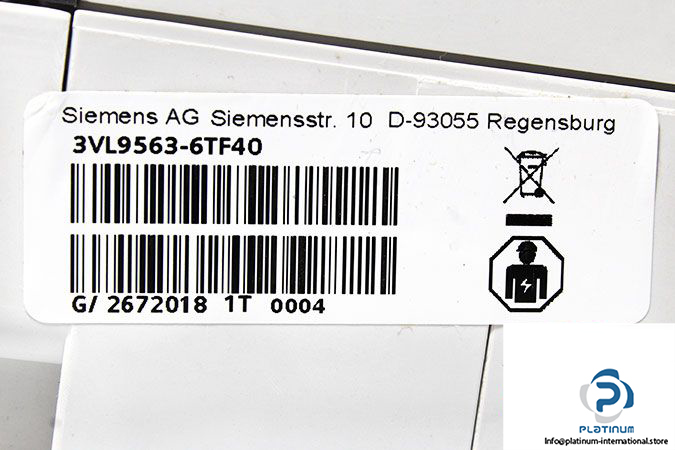

• Article No.: 3VL9563-6TF40
• REF NO: G/2672018 1T 0004
• Number of Poles: 4
• Rated Current (In): 630 A
• Overload Protection Current (IR): 252 / 630 A
• Protective Functions: LSIN
  • L = Overload Protection
  • S = Delayed Short-Circuit Protection
  • I = Instantaneous Short-Circuit Protection
  • N = Neutral Protection

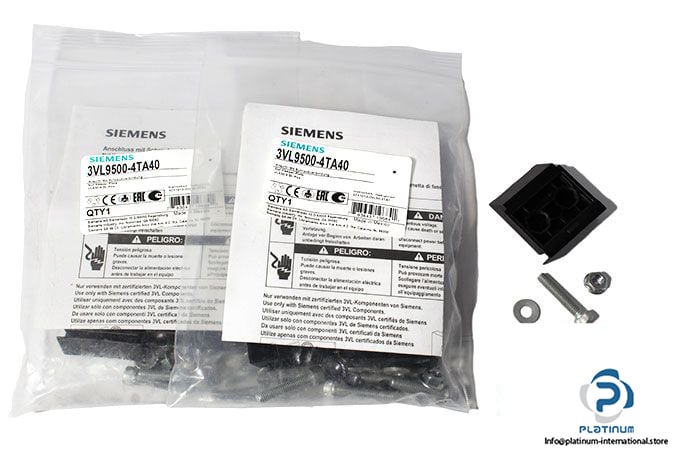

3. SIEMENS 3VL9500-4TA40 Screw Terminal

• Type: Screw Terminal
• Model: Sentron
• Article No.: 3VL9500-4TA40
• Accessories For: VL630
• Protection Class: IP20
• Dimensions (W x D x H): 253.5 x 138.5 x 279.5 mm
• Ambient Operating Temperature: -25 / 70 °C
