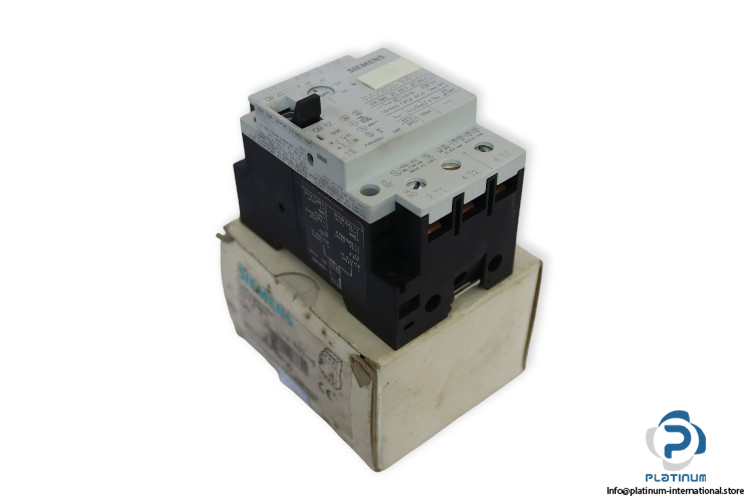

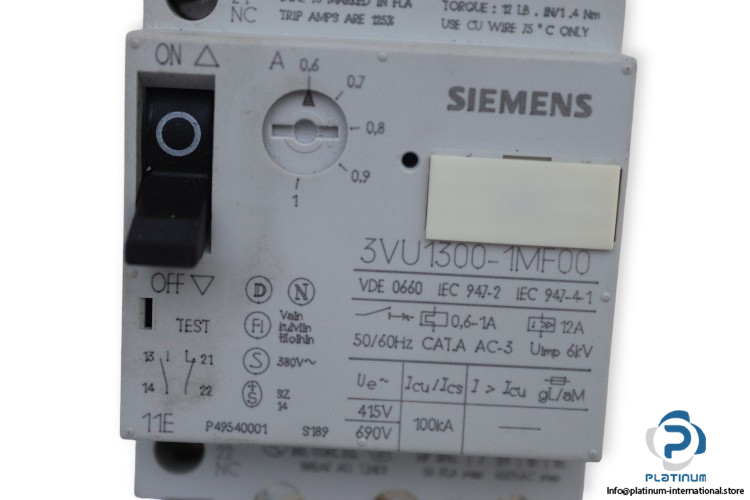

Siemens 3VU1300-1MF00 Circuit Breaker

Manufacturer: Siemens
Type: Circuit Breaker
MNR: 3VU13001MF00

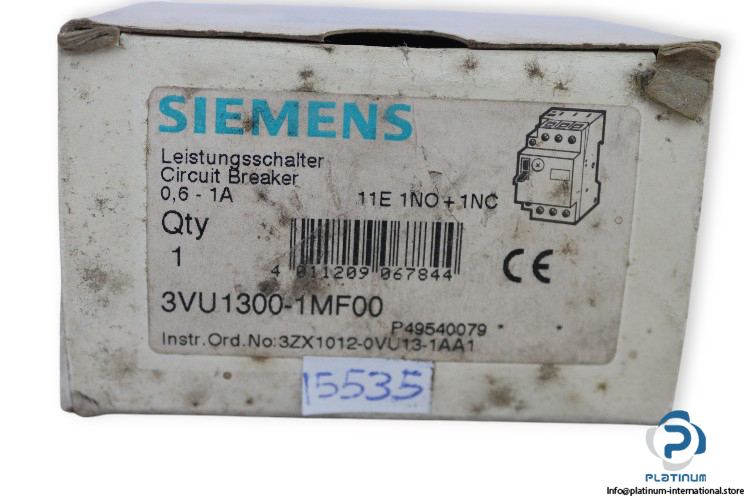

Instr. Order No.: 3ZX1012-0VU13-1AA1

Operating Voltage rated value: 690 V
Frequency: 50/60 Hz
Rated impulse with stand voltage (Uimp): 6 KV
Rated insulation voltage Ui: 750 V
Rated power at AC-3: 380/400 V: 12.5 kW, 415 V: 13 kW
Adjustable current response range: 0.6 … 1 A
Short-circuit release setting Current: 12 A
No. of poles: 3
Main contact: 1 NO, 1 NC
Auxiliary contact Rating:
Rated operational voltage Ue: 230, 400, 500 V AC
Rated operational current Ie: 3 A @230 V AC, 1.5 A@400 V AC, 1.2 A @ 500 V AC
Service Switching Capacity Max. (Ics): 100 Ka
Breaking Switching Capacity Max. (Icu): 100 kA
Protection degree: IP00/IP20
Standard: VDE 0660,IEC 947-2,IEC 947-4-1
Ambient temperature: -20 … 55°C
Dimensions: 86 x 54 x 60 mm
