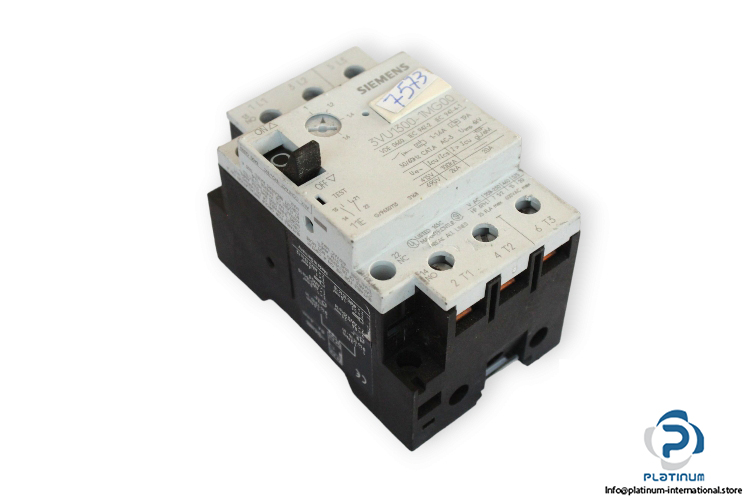

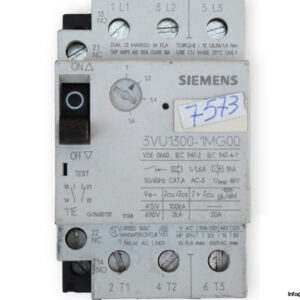

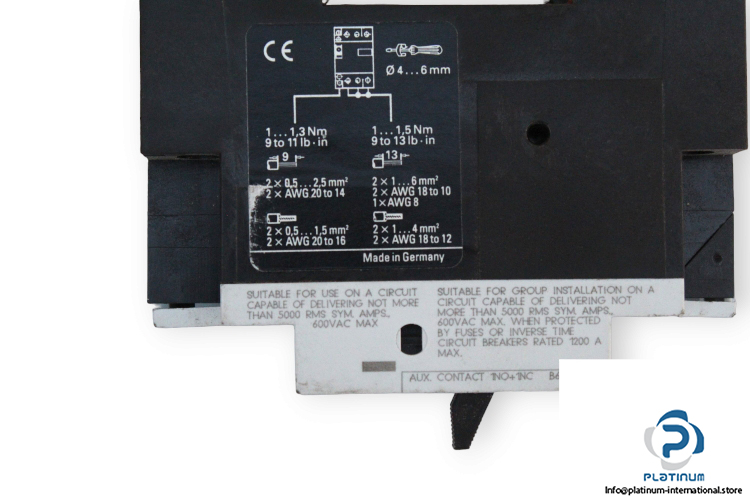

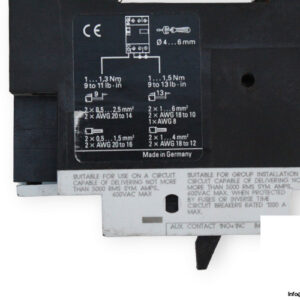

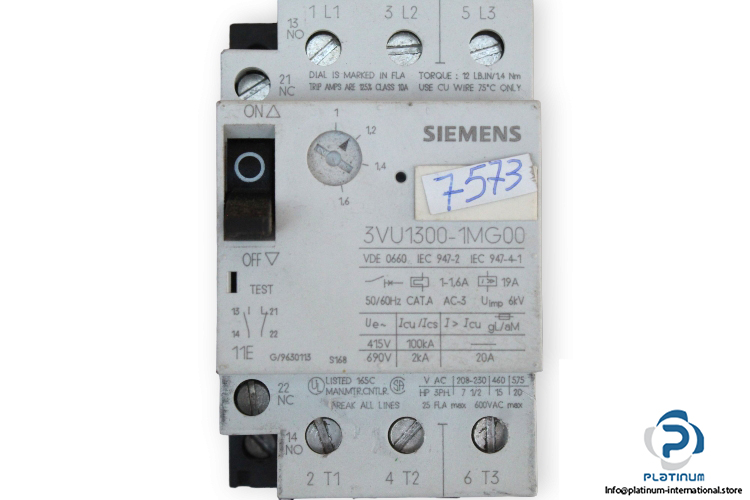

Siemens 3VU1300-1MG00 Motor Starter Protector
Manufacturer: Siemens
Type: Motor Starter Protector
Model: 3VU1300-1MG00
Rated Voltage: 415 … 690 V AC
Rated Current: 1 … 1.6 A
Frequency: 50 … 60 Hz
Torque: 14 Nm
No. of Poles: 3
Impulse Withstand Voltage: 6 kV
Breaking Capacity: 100 … 2 kA
Contact Configuration: 1 Normally Open, 1 Normally Close
Contact Voltage: 230 … 500 V AC/ 24 … 220 V DC
Contact Current: 3 … 1.2 A (AC)/ 2.3 …. 0.3 A (DC)
Operating Temperature: -20 … 55 °C
Degree of protection: IP00
