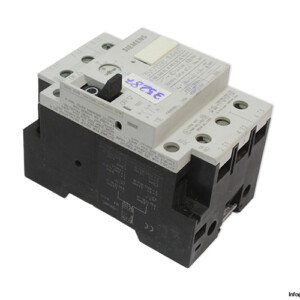

Siemens 3VU1300-1MH00 Motor Starter Protector
Used
In stock2 unitsReady to ship
Motor Starter Protector
SIEMENS motor starter protector for three-phase motors, rated up to 690 V AC, with adjustable current range and integrated overload and short-circuit protection.
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

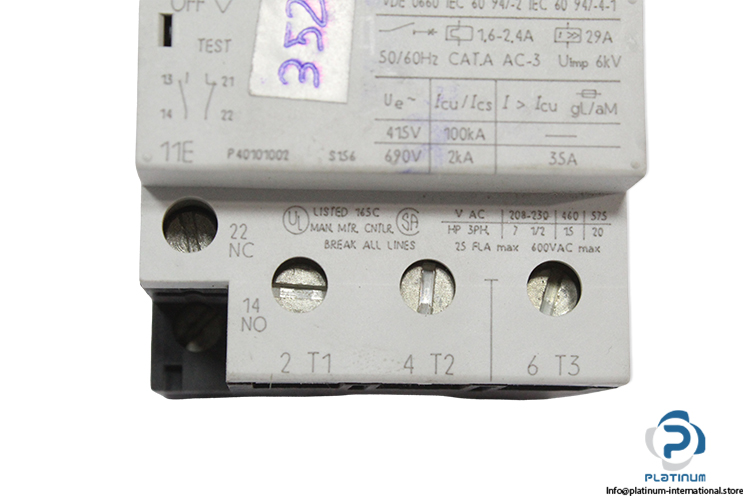

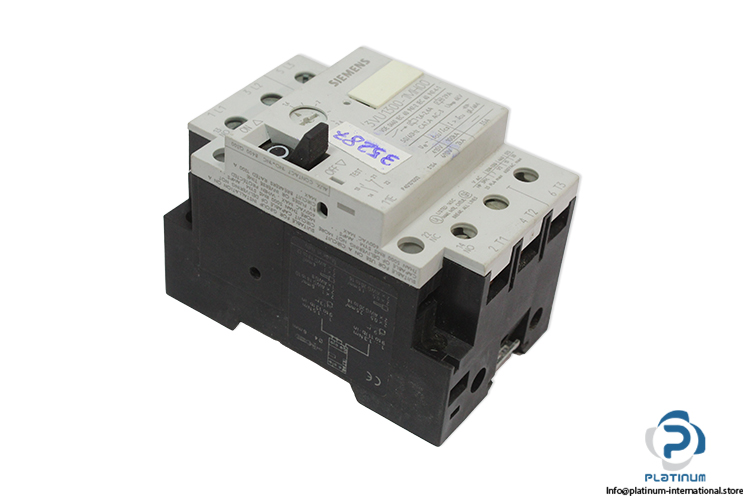

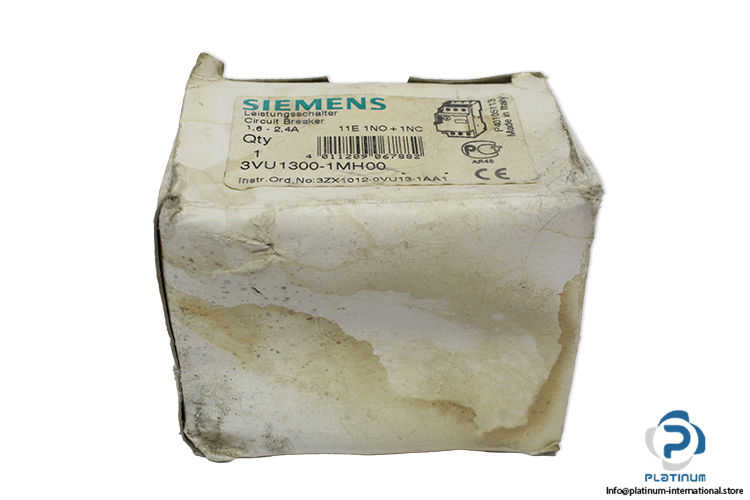

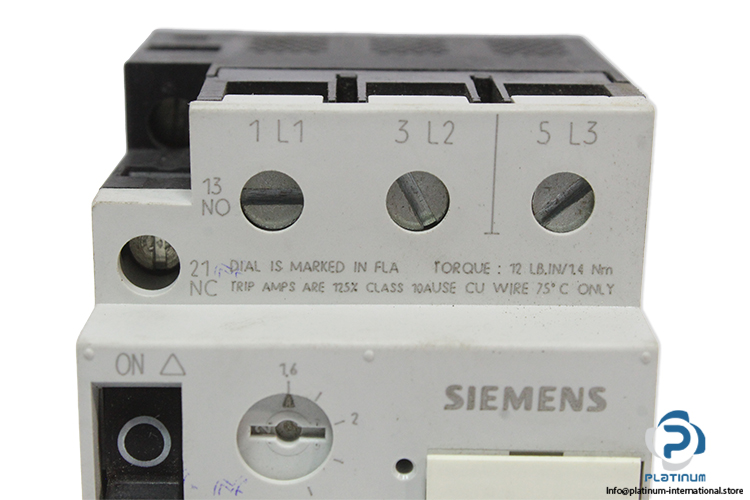

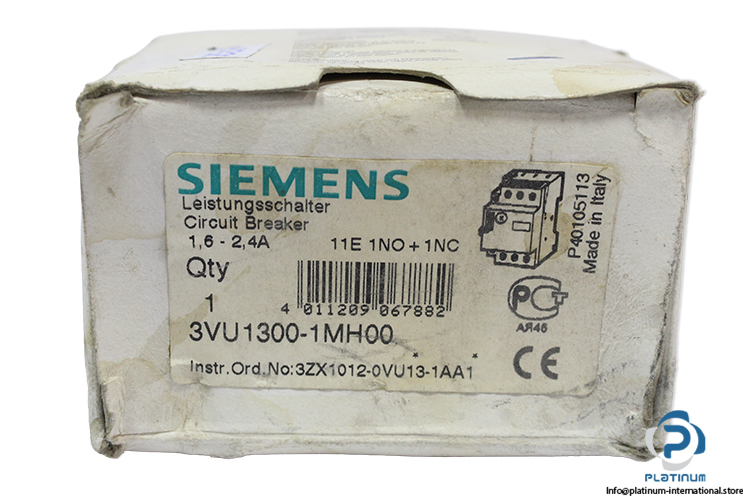

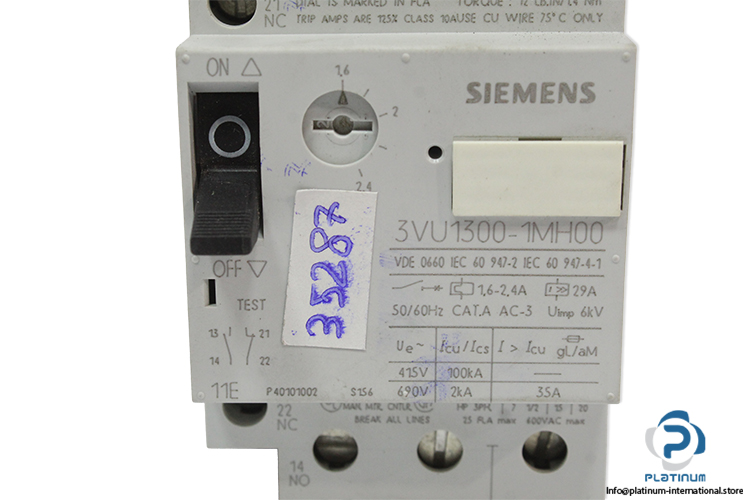

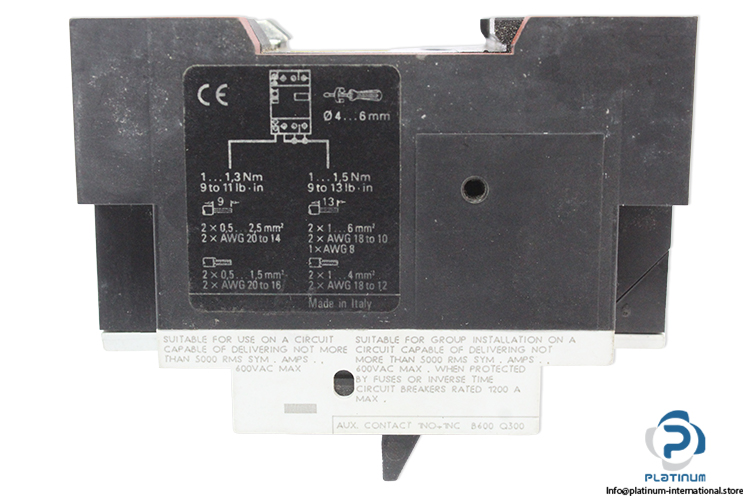

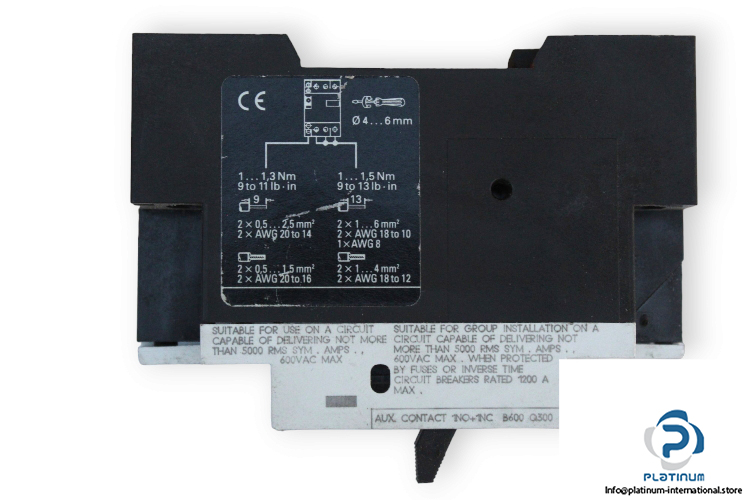

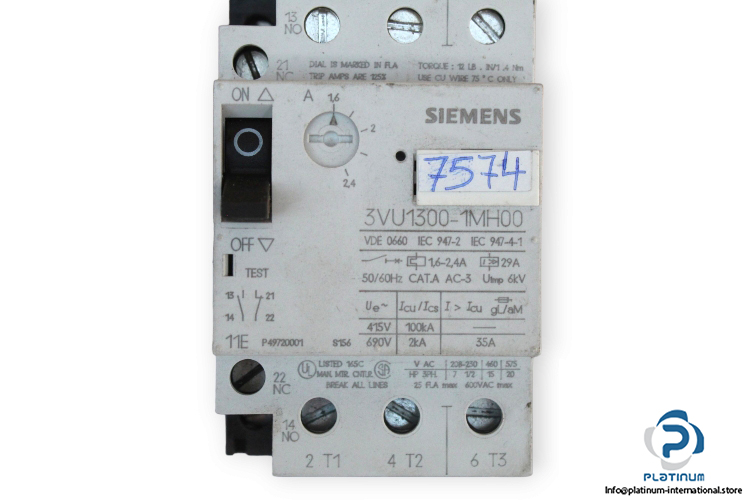

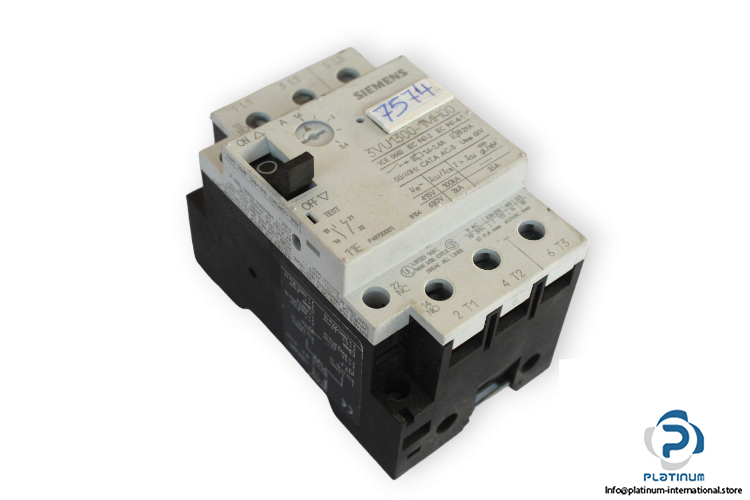

SIEMENS 3VU1300-1MH00 Motor Starter Protector
The SIEMENS 3VU13001MH00 motor starter protector is designed to provide reliable protection and control for three-phase electric motors. It combines overload and short-circuit protection in a compact design, ensuring safe operation and long service life in industrial motor control applications.
Manufacturer: SIEMENS
Type: Motor Starter Protector
Model: 3VU1300-1MH00
Order No.: 3ZX1012-0VU13-1AA1
| Rated Voltage | 415 / 690 V AC |
| Rated Current | 1.6 / 2.4 A |
| Frequency | 50 / 60 Hz |
| Torque | 14 Nm |
| Number of Poles | 3 |
| Impulse Withstand Voltage | 6 kV |
| Breaking Capacity | 100 / 2 kA |
| Contacts | 1 Normally Open (NO), 1 Normally Closed (NC) |
| Operating Temperature | -20 / 55 °C |
| Degree of Protection | IP00 |
| Dimensions | 84 x 54 x 59 mm |
