Siemens 3VU1300-1MN00 Circuit Breaker
New
In stock1 unitReady to ship
Circuit Breaker
A robust SIEMENS motor protection circuit breaker from the 3VU series, featuring adjustable current settings, auxiliary contacts, and compliance with IEC and VDE standards for industrial electrical applications.3VU3VU1300-1MN00BreakerCircuitControlDistributionElectricalEquipmentIndustrialmotorPowerProtectionSeriesSiemens
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

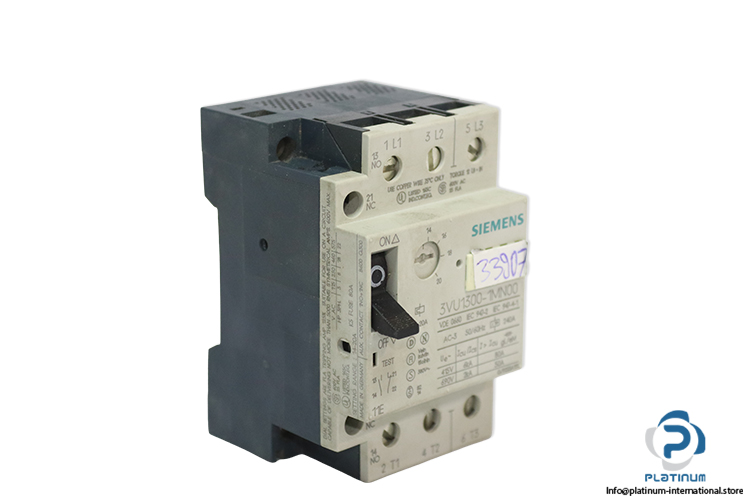

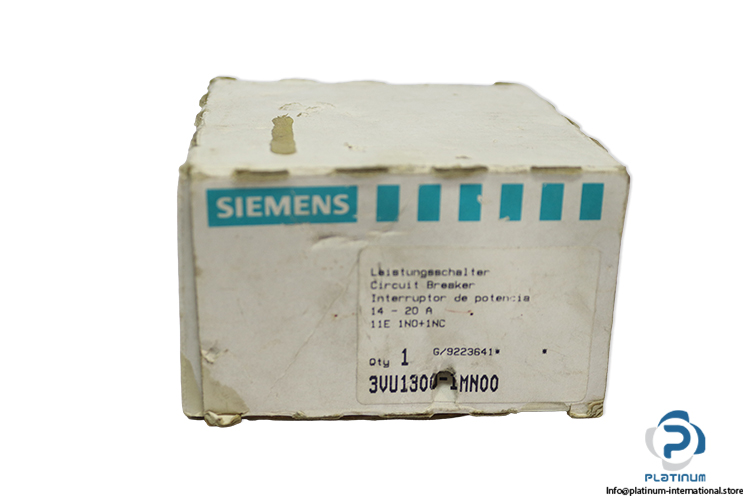

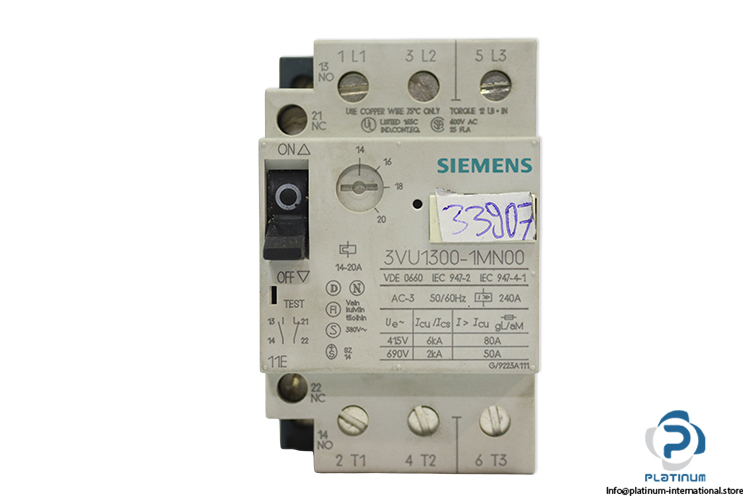

SIEMENS 3VU1300-1MN00 Circuit Breaker
A high-quality motor protection circuit breaker from SIEMENS, designed to provide reliable protection against overloads and short circuits in industrial electrical systems. Part of the trusted 3VU series, this circuit breaker is suitable for motor control and power distribution applications operating under demanding conditions. Manufacturer: SIEMENS
Type: Circuit Breaker
MRN: 3VU1300-1MN00
Series: 3VU
Rated Short-Circuit Capacity:
6 kA at 415 V
2 kA at 690 V
| Rated Current (Adjustable) | 14 to 20 A |
| Rated Operational Voltage (Ue) | 415 V AC / 690 V AC |
| Frequency | 50 / 60 Hz |
| Utilization Category | AC-3 |
| Auxiliary Contacts | 1 NO + 1 NC |
| Standards & Approvals | IEC 947-2, VDE 0660 |
