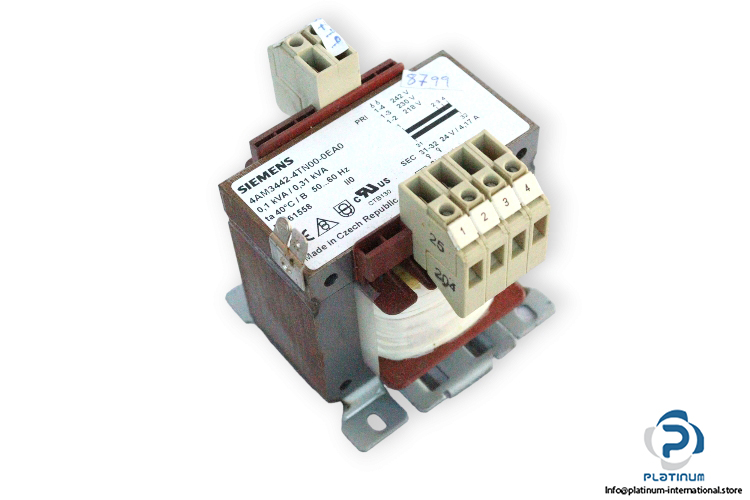

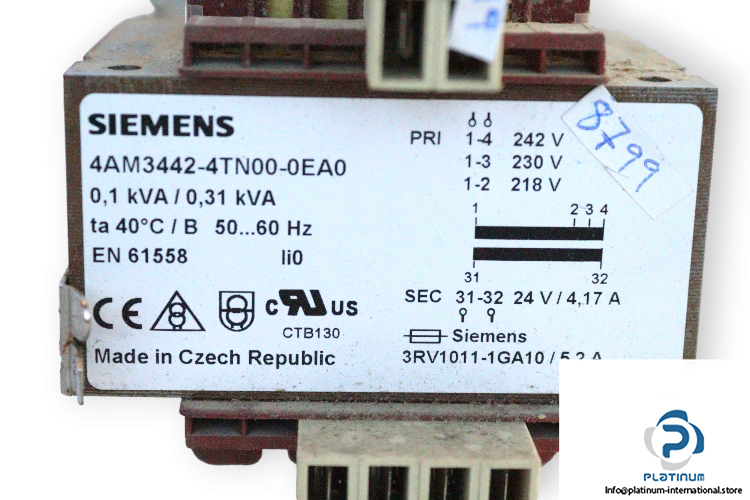

Siemens 4AM3442-4TN00-0EA0 Transformer

Manufacture: Siemens
Type: Transformer
MNR: 4AM34424TN000EA0
Product designation: transformer SITAS
Product brand name: SIDAC

Operating apparent output Rated value: 0.1 kVA/0.31 Kva
Connection method for transformers: Ii0
Frequency: 50 … 60 Hz
Inputs:
Phase number of the inputs: 1
Input voltage:
 _1 Rated value: 242 V
 _2 Rated value:  230 V
 _3 Rated value:  218 V
Frequency: 50 … 60 Hz
Outputs:
Phase number of the output: 1
Output voltage Rated value: 24 V
Output current: 4.17 A
Ambient temperature Rated value: 40°C
Protection class IP: IP00
Type of electrical connection: screw-type terminals
Fastening method: screws / standard rail
Dimensions: 86 x 98 x 102 mm
