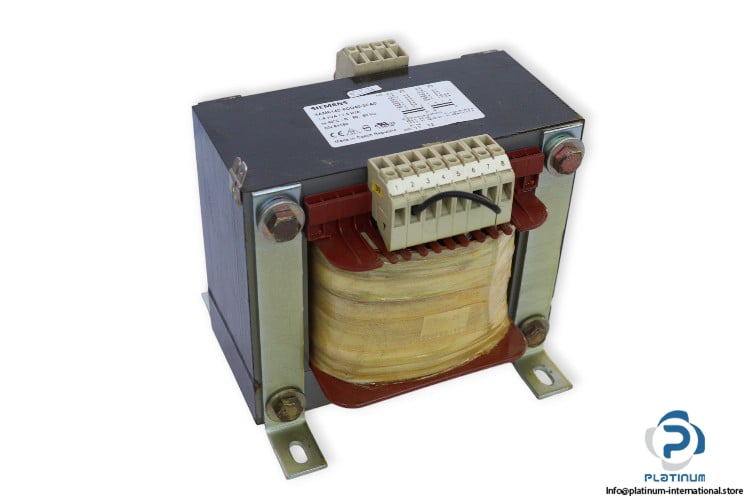

Siemens 4AM6142.8DD40.0FA0 Transformer

Manufacturer: Siemens
Type: Transformer

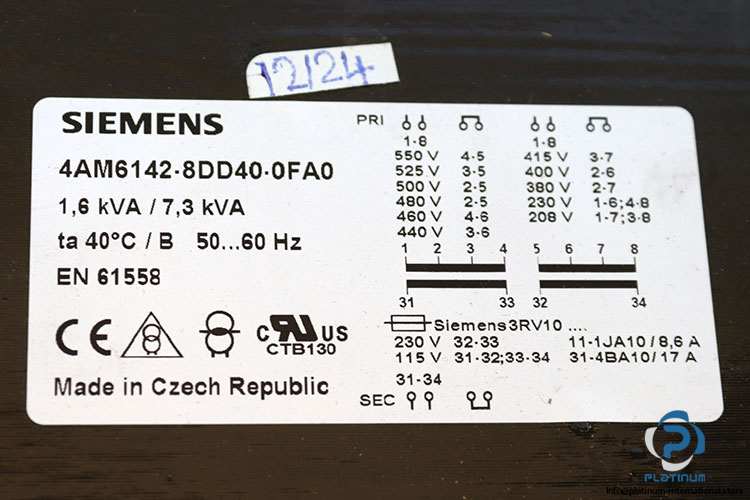

MNR: 4AM61428DD400FA0

Product designation: transformer SITAS
Product brand name: SIDAC
Connection Method For Transformers: Ii0
Input Voltage: 550-525-500-480-460- 440-415-400-380-230-208 V
Output voltage: 115/230 V
Power Rating: 1.6 … 7.3 K VA
Frequency: 50 … 60 Hz
Ambient temperature rated value: 40°C
Protection Class: IP00
Type of Electrical Connection: screw-type terminals / tab terminals
Type of Supply: 1-phase
Type of Terminals: Screw
Fastening Method: screws
Thermal Class According To IEC 60085: B
Standard: EN 61558
Dimensions: 176 x 164 x 138 mm
