Siemens 4NC5117-0CC20 Current Transformer
Siemens Current Transformer (Part No.: 4NC5117-0CC20) with rated primary current of 100 A, secondary current of 1 A, IP20 protection, and 6 kA thermal current.

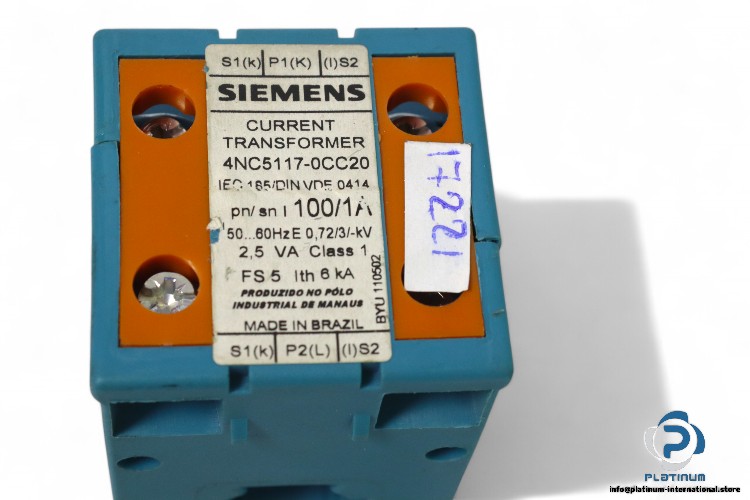

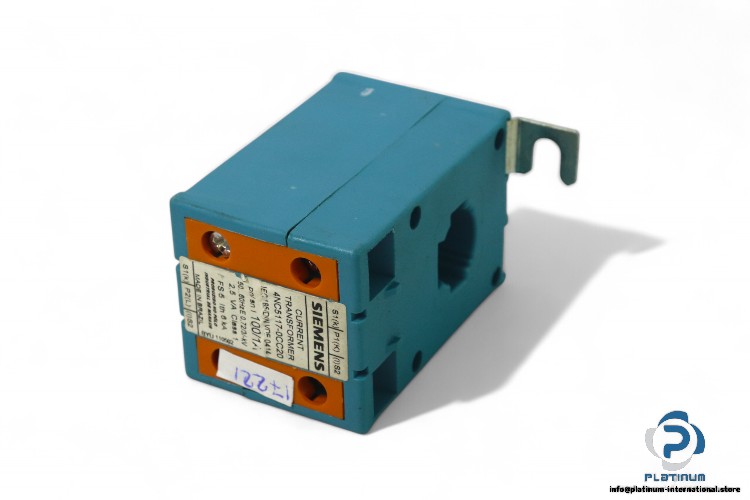

Siemens CURRENT TRANSFORMER (Part No.: 4NC5117-0CC20)
The Siemens Current Transformer, part number 4NC5117-0CC20, is a high-performance transformer designed for accurate measurement and protection in electrical systems. It features a rated primary current of 100 A and a secondary current of 1 A, providing reliable current transformation in industrial applications.
- Manufacturer: Siemens
- Type: Current Transformer
- Part No.: 4NC5117-0CC20
- Rated Primary Current: 100 A
- Rated Secondary Current: 1 A
- Power Consumption: 2.5 VA
- Rated Thermal Current Ith: 6 kA
- Rated Impulse Voltage (Uimp): 0.72 / 3 kV
- Frequency: 50 / 60 Hz
- Electrical Connection: Screw-type terminals
- Protection Class: IP20
- Dimension: 74.5 x 48 x 80 mm
- Outer Diameter: 17.5 mm
- Ambient Temperature: -10 “ 55 °C
This current transformer is built to handle demanding conditions, with robust construction and excellent electrical characteristics. It is designed for use in various industrial and electrical applications, offering precision and reliability in current measurement and monitoring tasks.
