Siemens 5SG7 113 Switch Disconnector
New
In stock1 unitReady to ship
Switch Disconnector with Fuse
Siemens 5SG7113 MINIZED switch disconnector with fuse, 1-pole D02 system, rated for 230/400 V AC and 63 A current, IP20 protection, compliant with IEC 60947-3 and IEC 60269-3-1 standards.5SG711360269-3-160947-3D02DeviceDisconnectorElectricalFuseIECIndustrialMinizedProtectionSiemensSwitchSystemWith
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

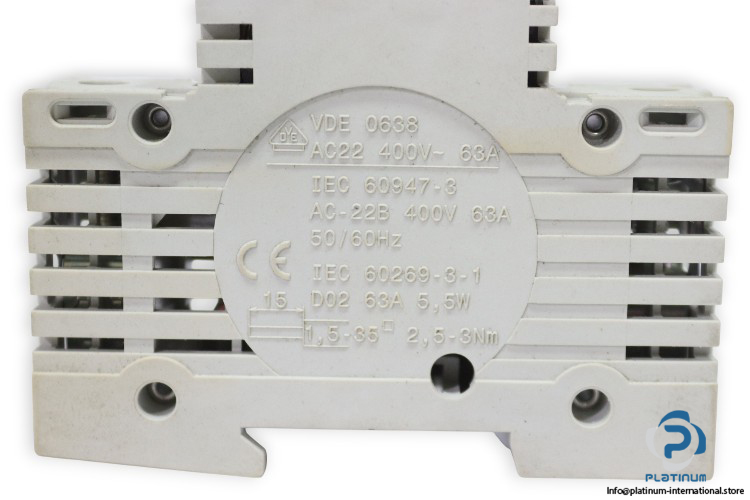

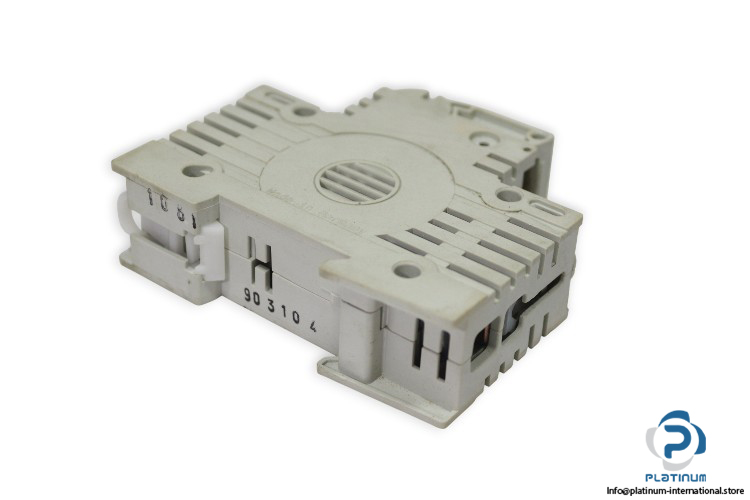

Siemens 5SG7113 Switch Disconnector with Fuse
The Siemens 5SG7113 from the MINIZED series is a high-quality switch disconnector with fuse, designed for safe and reliable electrical circuit protection. It offers superior overvoltage resistance, compact design, and compliance with international standards, making it suitable for various industrial and electrical installations.
Manufacturer: Siemens
Type: Switch Disconnector with Fuse
Model: 5SG7113
Product Brand Name: MINIZED
Product Designation: Switch Disconnectors with Fuses
Standards
VDE 0688
IEC 60947-3
IEC 60269-3-1
| Number of Poles | 1 |
| Size of Fuse System (EN 60269-1) | D02 |
| Overvoltage Category | 4 |
| Surge Voltage Resistance (Rated) | 6 kV |
| Operating Voltage (AC) | 230/400 V |
| Rated Current | 63 A |
| Protection Class (IP) | IP20, with connected conductors |
| Power Dissipation | Max. 5.5 W |
| Height | 90 mm |
| Width | 27 mm |
| Depth | 70 mm |
