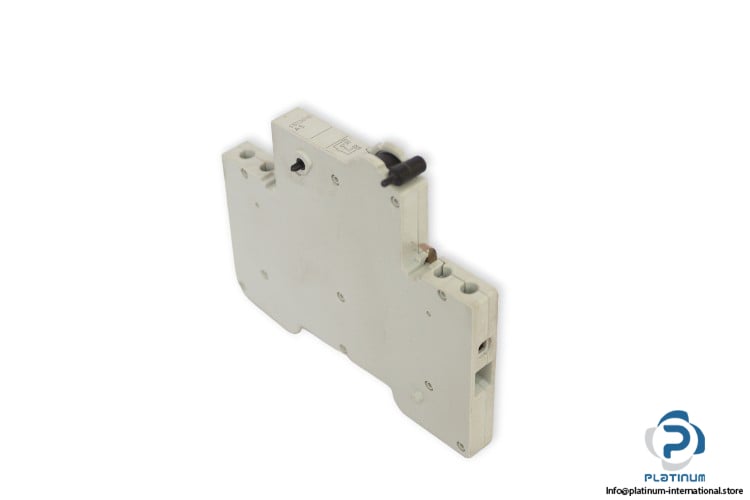

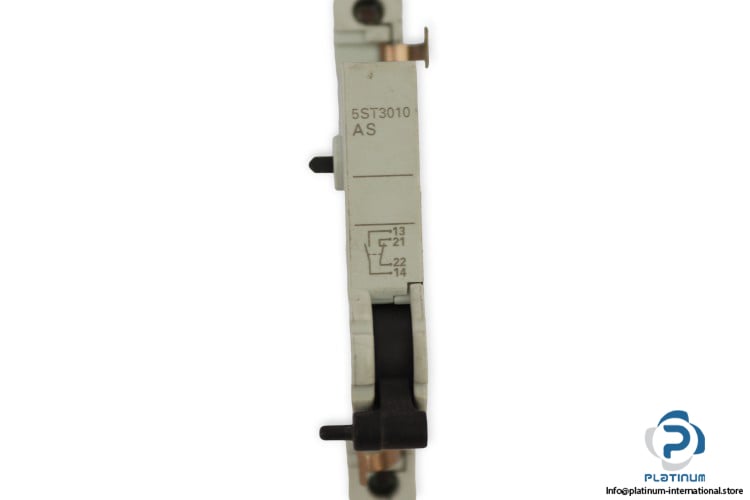

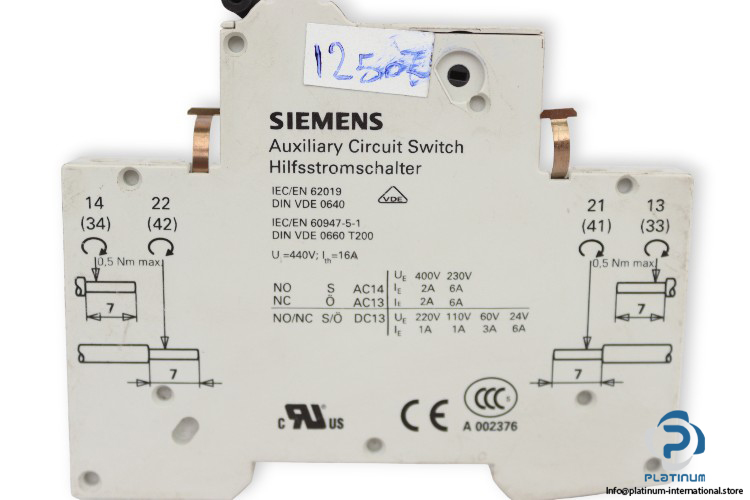

Siemens 5ST3010 AS Auxiliary Circuit Switch

Manufacturer: Siemens
Type: Auxiliary Current Switch / Auxiliary Circuit Switch
Model: 5ST3010AS
Brand Name: SENTRON

Used: For miniature circuit breaker 5SL, 5SY, 5SP Incorporated switch 5TL1, RCBO 5SU1, FI 5SV
Thermal current Ith: 16 A
Switching current@400 V: 2 A
Tightening Torque: 0.5 N·m
Output Contact: 1 NO + 1 NC
Design of the product: Mountable
Standard: IEC/EN 62019, DIN VDE 0640, IEC/EN 60947-5-1, DIN VDE 0660 T200
Electrical endurance (switching cycles) / typical: 20000
Connectable Conductor Cross-Section: 0.5 … 2.5 mm²
Protection class: IP20
Ambient Temperature: -25 … 55 °C
Dimensions: 90 X 9 X 70 mm
