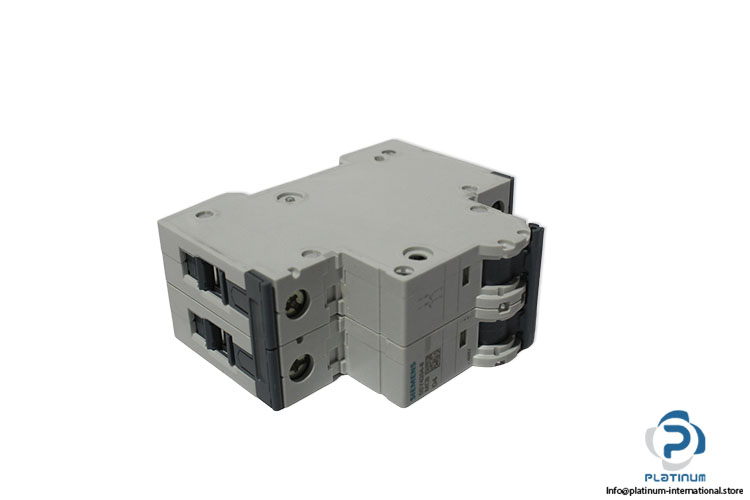

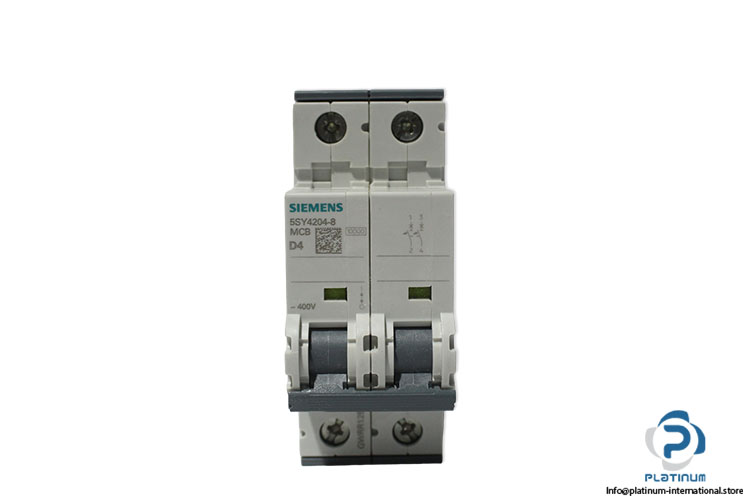

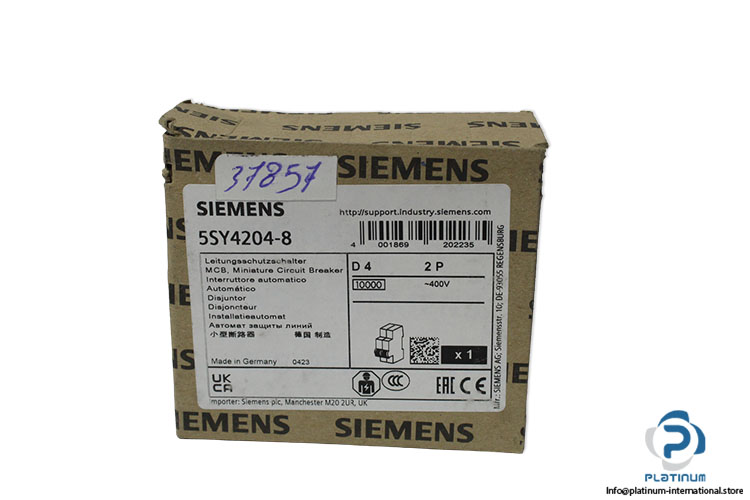

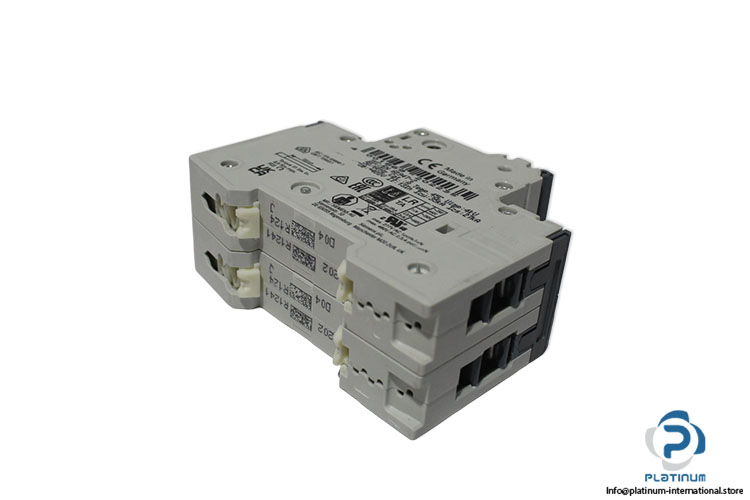

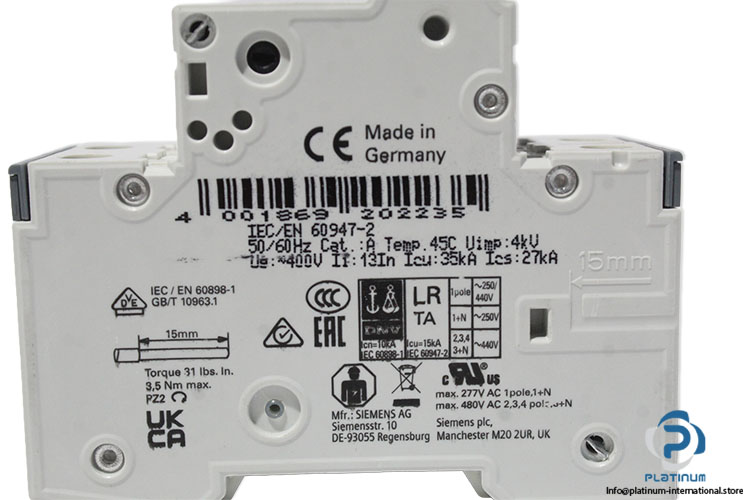

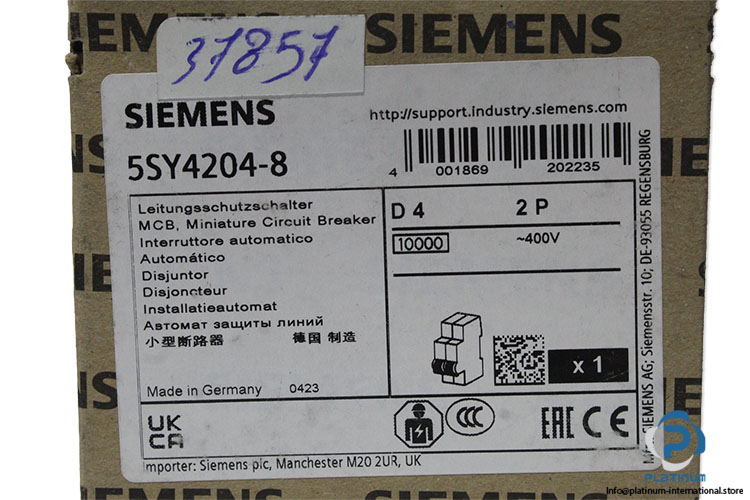

Siemens 5SY4204-8 Miniature Circuit Breaker
New
In stock5 unitsReady to ship
SIEMENS 5SY4204-8 SENTRON Miniature Circuit Breaker is a 2-pole circuit protection device rated at 4 A with a D tripping characteristic and 10 kA switching capacity. Designed for reliable protection and convenient installation in industrial electrical and distribution systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Product Brand Name | SENTRON |
| Supply Voltage | 400V AC, 60V DC |
| Insulation Voltage | 440 V |
| Operational Current | 4 A |
| Switching Capacity Current | 10kA |
| No. of poles | 2 |
| Tripping Characteristic Class | D |
| Frequency | 50/60 Hz |
| Power Loss | 1,2W |
| Number Of Modular Width Units | 2 |
| Fastening Method | Quick assembly system |
| Mounting Position | Any |
| Tightening Torque | 2.5 to 3.5 N·m |
| Ambient Temperature | -40 to 70 °C |
| Protection Degree | IP20 |
| Diameter | 70 mm |
| Dimensions | 90x36x76 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1093496 |
| Weight | 0,31 |
