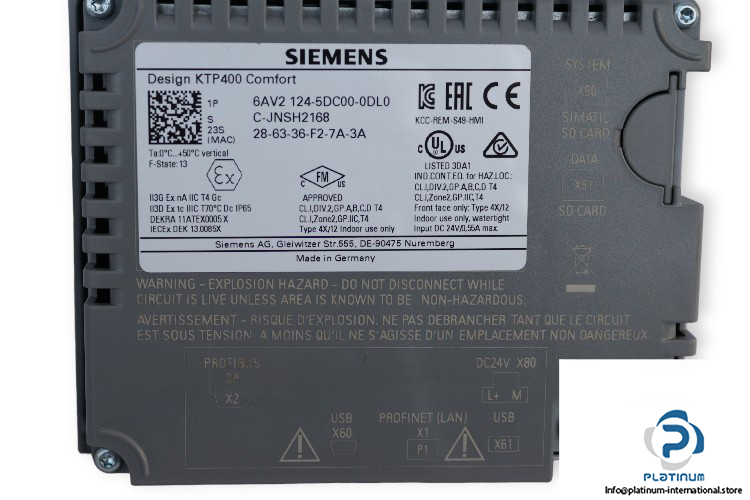

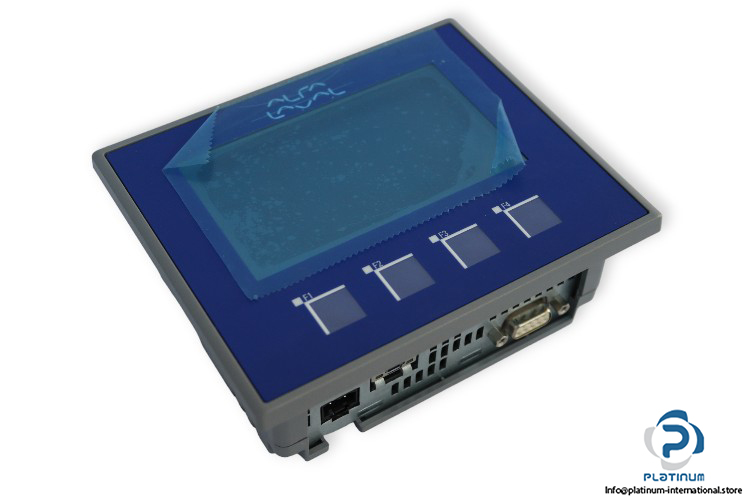

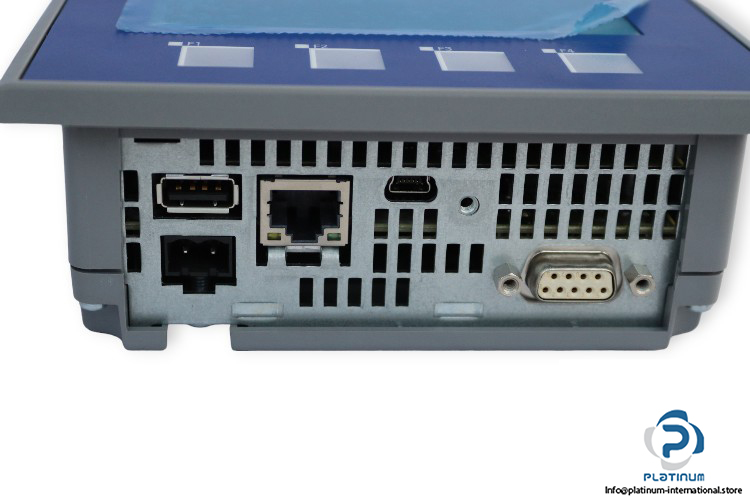

Siemens 6AV2 124-5DC00-0DL0 LCD TFT
Manufacturer: Siemens
Type: LCD TFT with extended viewing angle/ LCD TFT
Model: 6AV2 124-5DC00-0DL0/ 6AV2124-5DC00-0DL0
MAC: 28-63-36-F2-7A-3A
Design: KTP400 Comfort
Voltage: 24 V DC
Current: 0.13 A
Power: 3.1 W
Active display area: 4.3, 95 mm x 53 mm
Resolution: 480 x 272 pixels
Protection Type: Explosion Proof
Internal protection: Electronic
Backlighting: LED
Half Brightness Life Time (MTBF 2): 80000 h
Electrical Connection: 9 Poles
Interface: 1 x RS 422/485 (PROFIBUS)
Usable memory for application data: 4 MB
Usable memory for recipe data: 512 KB
Additional memory for options: 4 MB
Ethernet (PROFINET): 1 x RJ45 10/100 Mbps
Operating Temperature: 0 … 50 (Vertical Installation) °C
Dimensions: 116 X 140 X 54.8 mm
