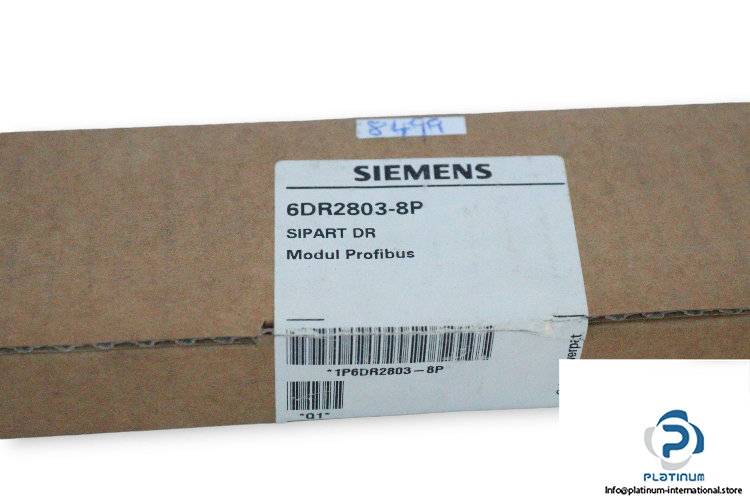

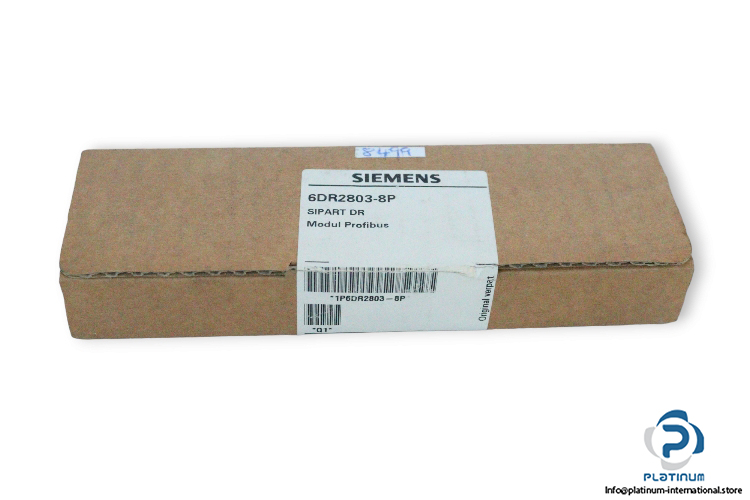

Siemens 6DR2803-8P Serial Interface Profibus-DP

Manufacture: Siemens
Type: Serial Interface PROFIBUS-DP
MNR: 6DR28038P

Used: for SIPART dr controllers
Supply voltage VP (5 V): 5 V -0.4 V/+0.2 V
Transmittable signals: RS 485, PROFIBUS-DP-protocol
Transmittable data: Operating state, process variables, parameters and structure switches
Data rate: 9.6 kbit/s to 1.5 Mbit/s except 45.45 kBit/s
Station number: 0 … 125
Electrical isolation between Rxd/Txd-P/-N and the controller: 50 V UC common mode voltage
Test voltage: 500 V AC
