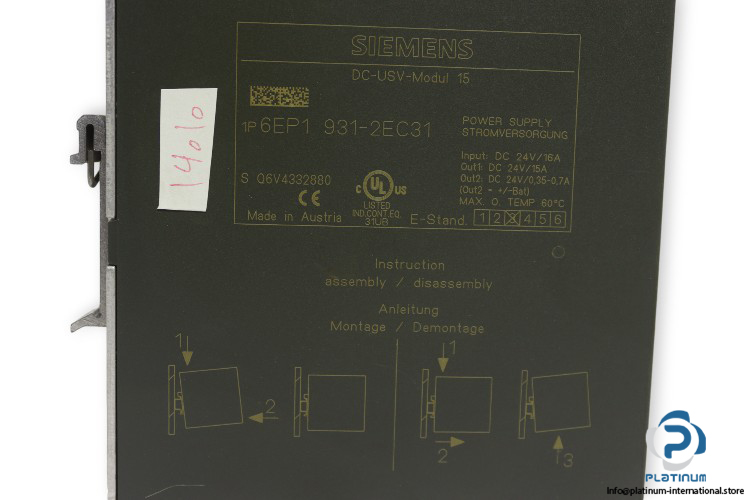

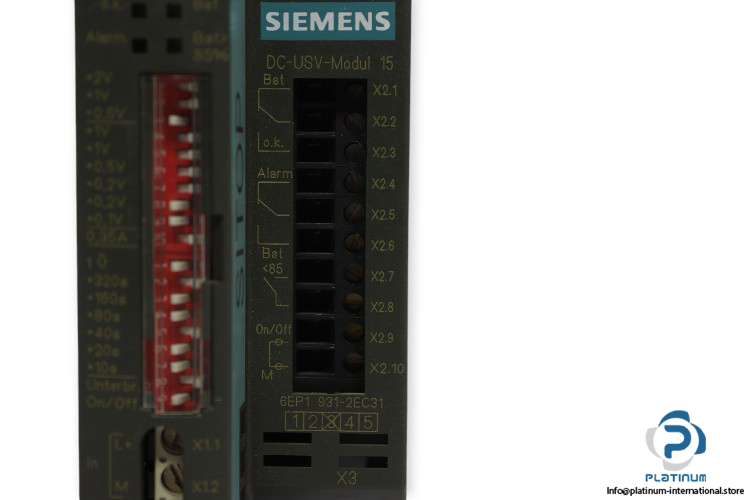

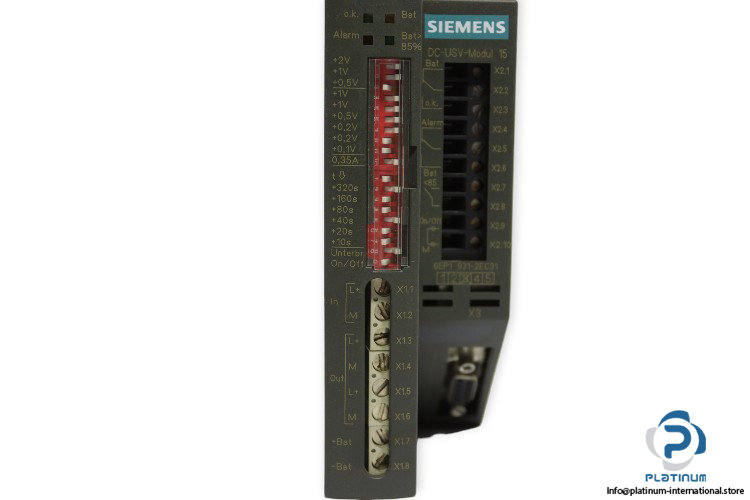

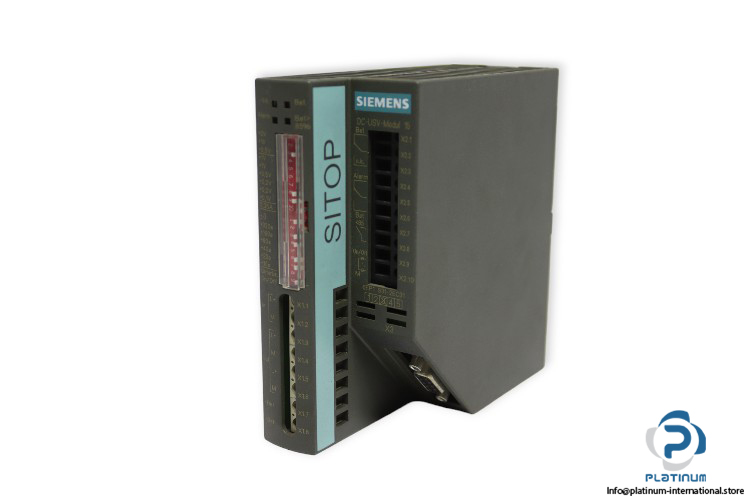

Siemens 6EP1 931-2EC31 DC USV Module

Manufacturer: Siemens
Type: DC USV Module
MNR: 6EP1931-2EC31

Input voltage: 24 V DC
Input voltage range: 22 … 29 V DC
Input current: 16 A
Type of energy storage: with batteries
Charging current: 0.35 A, 0.7 A
Output voltage: 24 V DC
Output current1: 15 A
Output current2: 0.35 … 0.7 A
Supplied active power typical: 360 W
Type of electrical connection: Screw-type terminals
Operating Temperature: -25 … +60 °C
Degree of Protection: IP20
Dimensions: 50 x 125 x 125 mm
