Siemens 6ES7 132-4BF00-0AA0 Digital Output Module
New
Available on request
77,55$
DIGITAL OUTPUT MODULE
Siemens 6ES7132-4BF00-0AA0 digital output module for ET 200S with 8 outputs, 24 VDC operation, and EX-rated design. Supports up to 1000 m shielded cable length, ideal for industrial automation.
Used
In stock 44,44$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

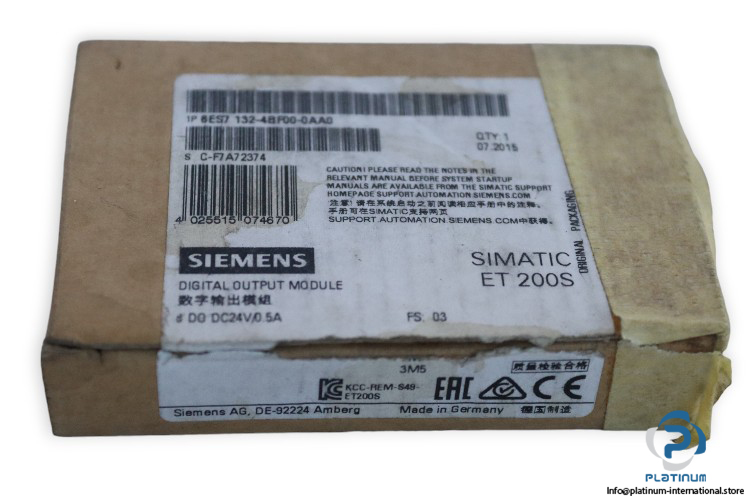

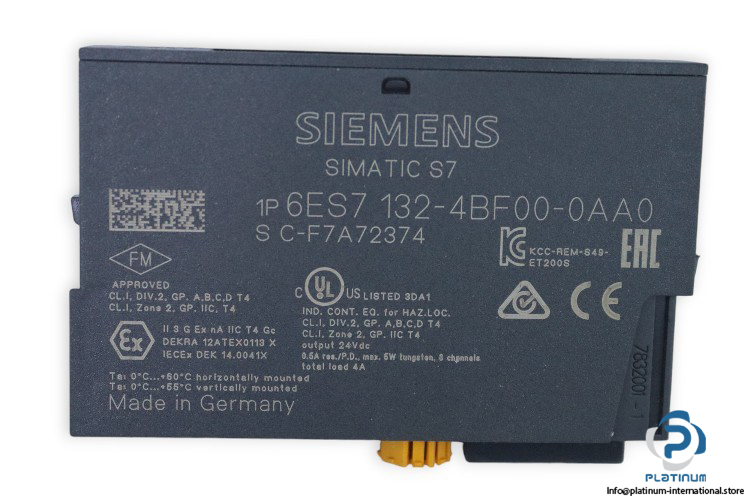

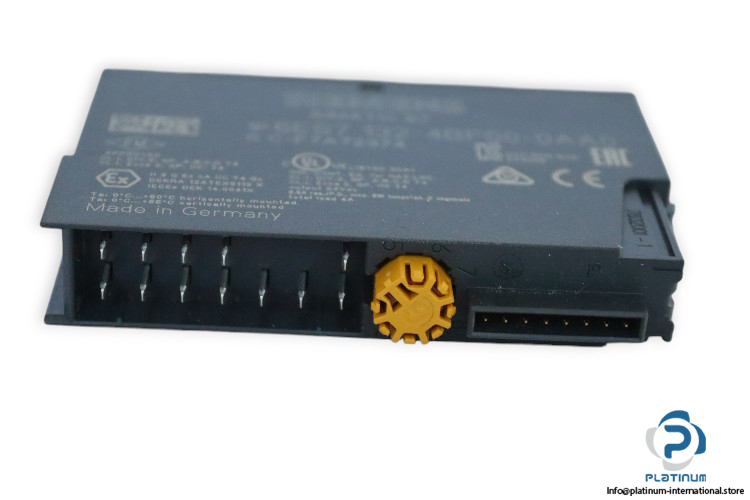

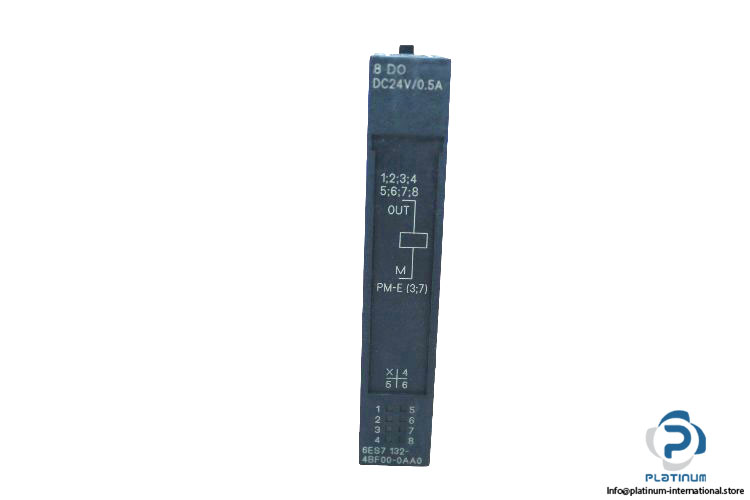

SIEMENS 6ES7132-4BF00-0AA0 DIGITAL OUTPUT MODULE
The Siemens Simatic S7 6ES7132-4BF00-0AA0 is a high-performance digital output module designed for distributed automation systems such as ET 200S. With 8 output channels, robust explosion-proof construction, and precise output current control, it offers exceptional reliability for industrial control environments.
Manufacturer: Siemens
Type: Digital Output Module
Family: Simatic S7
Model: 6ES7132-4BF00-0AA0
Serial No.: C-F7A72237
For: ET 200S
| Number of Outputs | 8 |
| Supply Voltage | 24 VDC |
| Input Current from Load Voltage L+ (Without Load), Max. | 5 mA per channel |
| Input Current from Backplane Bus 3.3 V DC, Max. | 10 mA |
| Lamp Load | Max. 5 W |
| Power Loss | 1.5 W |
| Cable Length | 1000 m (Shielded), 600 m (Unshielded) |
| Explosion Proof | Yes (EX Rated) |
| Dimensions | 81 x 52 x 16 mm |
