Siemens 6ES7 132-4BF00-0AB0 Electronics Module
New
In stock2 unitsReady to ship
88,88$
ELECTRONICS MODULE
Siemens 6ES7132-4BF00-0AB0 from the SIMATIC ET 200S series is an 8-channel digital output module with PNP current-sourcing outputs, supporting 24V DC systems and 4A max output current per module.200S24v6ES7132-4BF00-0AB08AutomationchannelDigitalElectronicsETET200SIndustrialModuleOutputPNPSiemensSimatic
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

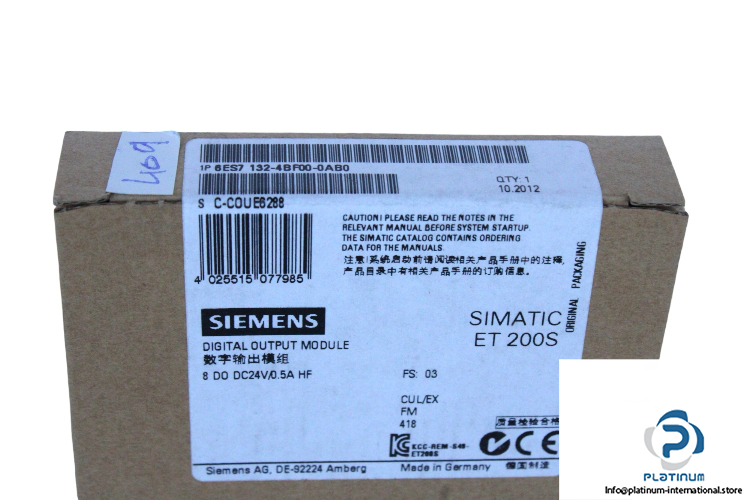

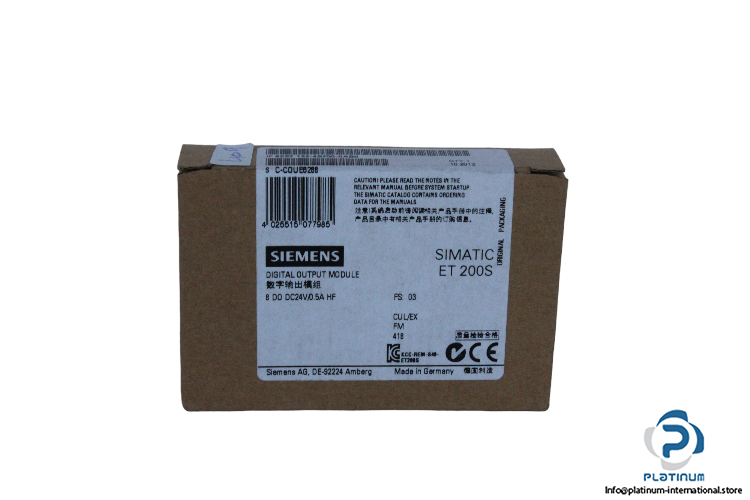

SIEMENS 6ES7132-4BF00-0AB0 ELECTRONICS MODULE
The Siemens 6ES7132-4BF00-0AB0 is a high-performance digital output module from the SIMATIC ET 200S family. It offers reliable and efficient signal transmission, with 8 PNP-type source outputs and compact dimensions suitable for modular automation systems.
Manufacturer: SIEMENS
Type: Electronics module
Model: 6ES7132-4BF00-0AB0
Family: SIMATIC ET 200S
Serial No.: C-COUE6288
| Load Voltage (Rated, DC) | 24 V |
| Input Current (from load voltage L+) | Max. 5 mA per channel |
| Input Current (from backplane bus 3.3 V DC) | Max. 10 mA |
| Power Loss (Typical) | 1.5 W |
| Digital Output Type | Source Output (PNP, current-sourcing) |
| Number of Digital Outputs | 8 |
| Switching Capacity on Lamp Load (Max.) | 5 W |
| Total Output Current per Module (Max.) | 4 A |
| Dimensions | 15 x 81 x 52 mm |
