SIEMENS 6ES7 214-1AG31-0XB0 CPU Module
Used
In stock2 unitsReady to ship
375,00$
CENTRAL PROCESSING UNIT
Siemens SIMATIC S7-1200 CPU 1214C DC/DC/DC is a compact CPU module with 14 digital inputs, 10 outputs, and 2 analog inputs. Offers fast processing times and seamless integration via STEP 7 V11 SP2 or higher.1214C7AutomationCompatibleControllerCPUDc/Dc/DcDigitalIndustrialInputModularOutputPLCprogrammableS7-1200SiemensSimaticStep
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

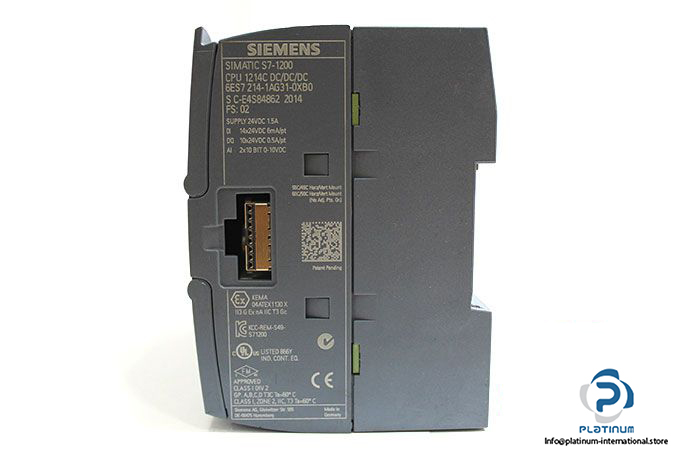

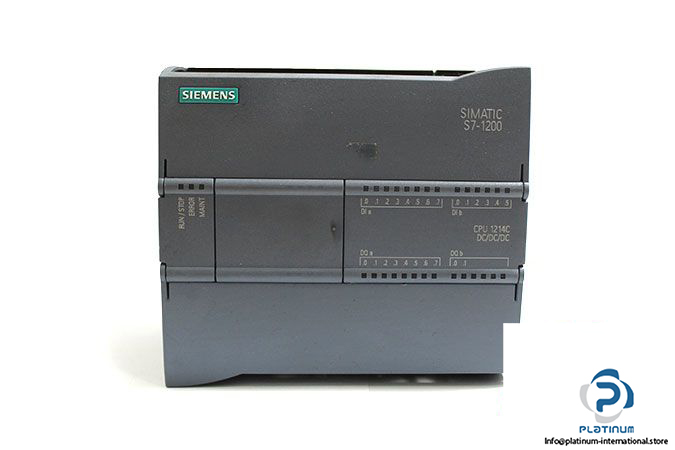

SIEMENS SIMATIC S7-1200 CPU 1214C DC/DC/DC
The Siemens SIMATIC S7-1200 CPU 1214C DC/DC/DC is a high-performance central processing unit engineered for modular automation systems. With a wide range of digital and analog I/O, fast processing speeds, and advanced memory capabilities, it™s built to meet the demands of modern industrial applications. Ideal for scalable automation, it integrates seamlessly with STEP 7 V11 SP2 or higher for programming and system expansion.

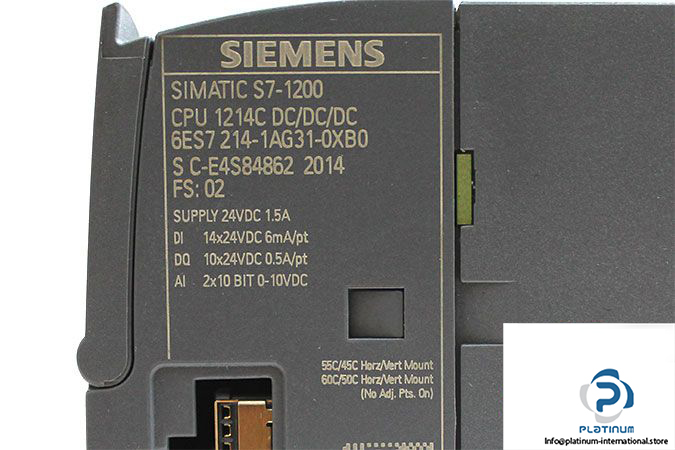

Manufacturer: Siemens
Family: SIMATIC S7-1200
Type: Central Processing Unit
Model: CPU 1214C DC/DC/DC
MRN: 6ES7214-1AG31-0XB0
S No: C-E4S84862
Programming Package: STEP 7 V11 SP2 or higher
CPU Processing Times:
| Supply Voltage | 24 V DC |
| Load Voltage L+ | 24 V DC |
| Current Consumption | max. 1.5 A at 24 V DC |
| Inrush Current | max. 12 A at 28.8 V |
| Output Current for Backplane Bus (5 V DC) | max. 1600 mA |
| Power Loss | 12 W |
| Integrated Work Memory | 75 byte |
| Load Memory | 4 Mbyte |
| Backup Time | 480 hours |
| Bit operations | typ. 0.085 µs / instruction |
| Word operations | typ. 1.7 µs / instruction |
| Floating point arithmetic | typ. 2.5 µs / instruction |

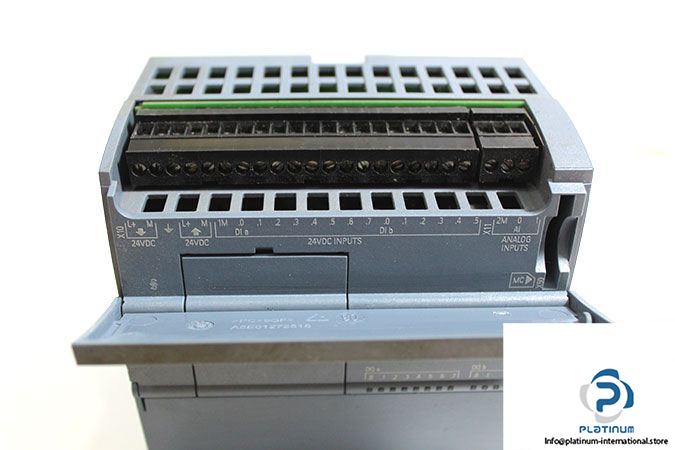

| No. of Digital Inputs | 14 |
| Input Voltage | 24 V DC |
| Input Current | 1 mA |
| Input Delay | 0.2 / 12.8 ms |
| Input Cable Length | 500 m shielded, 300 m unshielded |

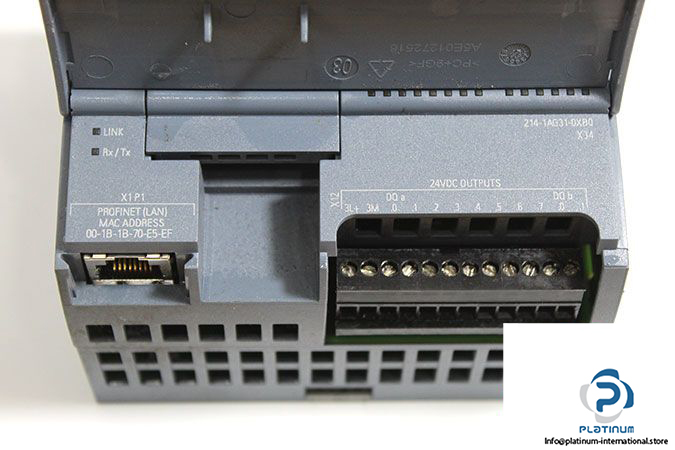

| No. of Digital Outputs | 10 |
| Output Switching Capacity (Resistive Load) | 0.5 A |
| Output Current Signal œ1 | 0.5 A |
| Residual Current Signal œ0 | max. 0.1 mA |
| Output Cable Length | 500 m shielded, 150 m unshielded |
| No. of Analog Inputs | 2 |
| Analog Input Cable Length | 100 m shielded |
| Connectable Encoders | 2-wire sensor |
| Operating Temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 110 x 100 x 75 mm |
