Siemens 6ES7 223-1PH30-0XB0 Digital Module
Used
Available on request
DIGITAL MODULE
Siemens SM 1223 is an advanced digital I/O module from the SIMATIC S7-1200 series. It provides 8 digital inputs and 8 outputs with selectable input delays, making it ideal for industrial automation and control systems.122324v6ES7223-1PH30-0XB0AutomationControldcDigitalHigh-SpeedIndustrialInputIOModuleOutputPLCS7-1200SiemensSimaticSM
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

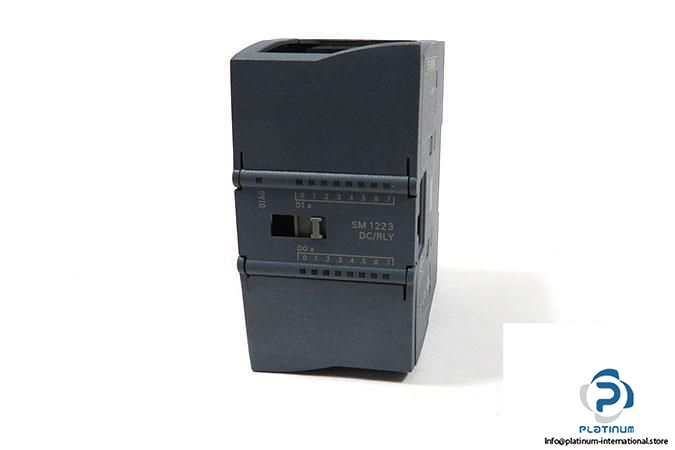

SIEMENS SM 1223 DIGITAL MODULE
The Siemens SM 1223 Digital Module is part of the SIMATIC S7-1200 automation family, offering reliable digital input/output capabilities for industrial control systems. Designed for flexibility and precision, it supports fast input delays and high switching capacities for demanding applications.

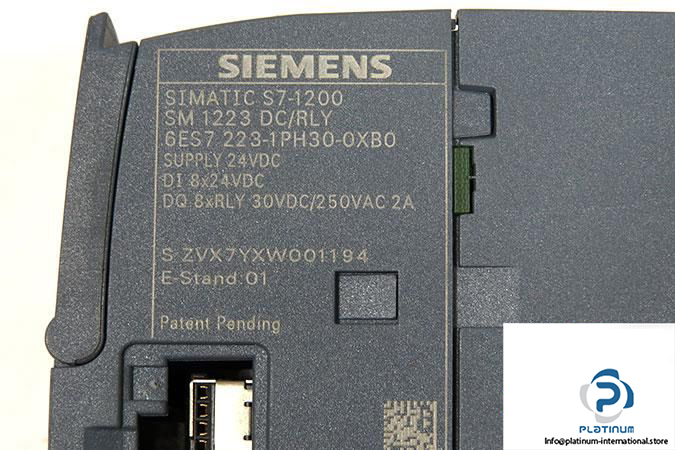

Manufacturer: Siemens
Family: SIMATIC S7-1200
Type: Digital Module
Model: SM 1223
MRN: 6ES7223-1PH30-0XB0
SN: ZVX7YXW001194
E Stand: 01
| Number of Digital Inputs | 8 |
| Input Voltage | 24 V DC |
| Input Current for Signal œ1 | typ. 4 mA |
| Input Delay (Selectable) | 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, 12.8 ms |
| Supply Voltage | 24 V DC |
| Input Current from Backplane Bus | 145 mA |
| Power Loss | 5.5 W |
| Number of Digital Outputs | 8 |
| Switching Capacity | 2 A with resistive load, 30 W (DC), 200 W (AC) on lamp load |
| Output Delay | 10 ms |
| Rated Output Voltage | 5 / 30 V DC / 5 / 250 V AC |
| Dimensions (W x H x D) | 45 x 100 x 75 mm |
