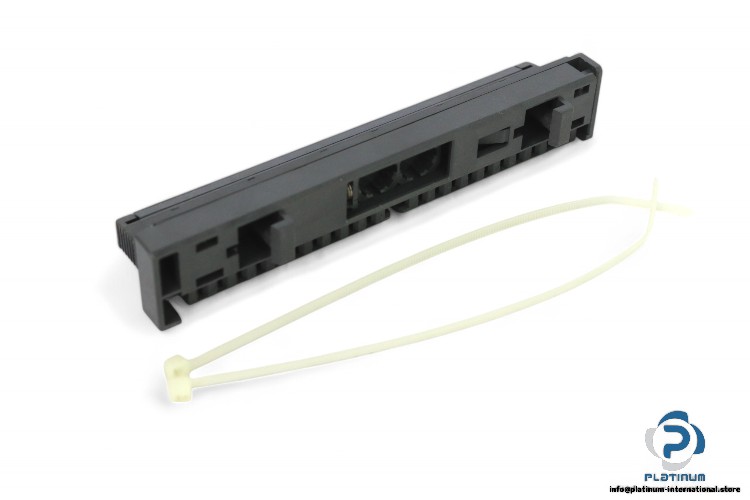

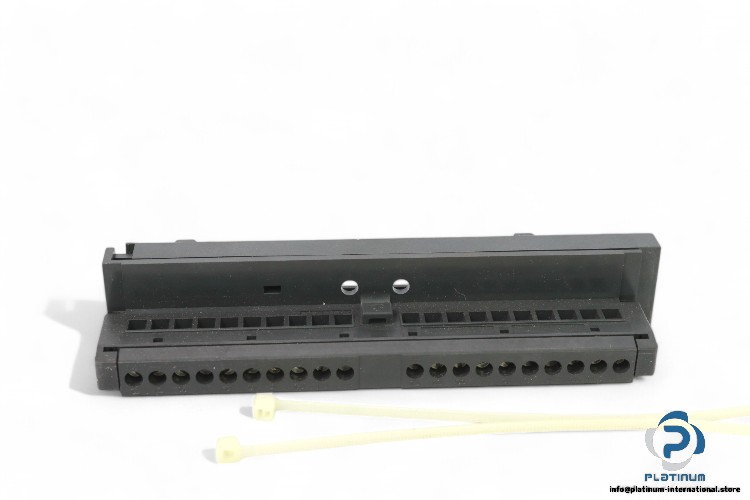

Siemens 6ES7 392-1AJ00-0AA0 KU MD Front Connector

Manufacturer: Siemens
Type: Front Connector
Part no: 6ES7392-1AJ00-0AA0KUMD

Connection method: Screw terminals

Number of lines per connection: 1; or combination of 2 conductors of up to 1.5 mm² (total) in a shared ferrule
No. of Poles: 20-Pole

Tool: Screwdriver, conical design, 3 mm to 3.5 mm

Tightening torque, min.: 0.4 N· m
Tightening torque, max.: 0.7 N· m
Ambient temperature: 0 …  60 °C
Dimensions (H x W x D): 131 x 23 x 36 mm
